GN14-20+5MR AATC 25′ GOOSENECK 15,500 GVWR REAL STEEL RAMPS
Store ID #GN14-20+5MR
Price: $11,395.00
All prices reflect a cash discount. A 3% fee applies to the total invoice for purchases made by credit card or select financing programs.
- Low-Profile Bed with high-strength Pierced-Beam Frame
- 20′ Deck with a 5′ Dovetail and extra-wide Real Steel double-hinged, spring-assist flip-over ramps

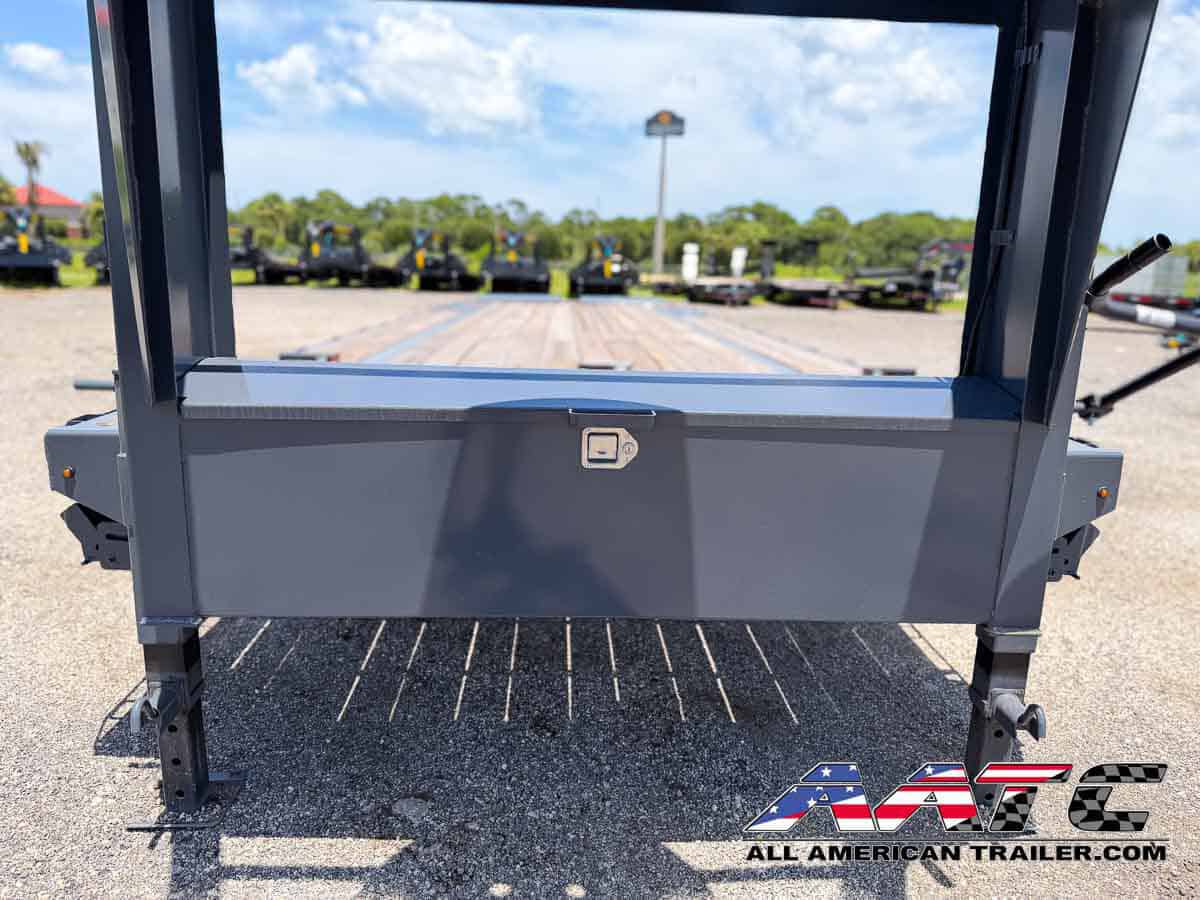

- Lockable Toolbox securely integrated between the gooseneck uprights
- Dual 12,000# Drop-Leg Jacks (bolted on) for heavy-duty support
- Premium Radial Tires for smooth towing and longer tread life
- Grommet-Mount Sealed Lighting to maximize electrical reliability
Print Product Specifications

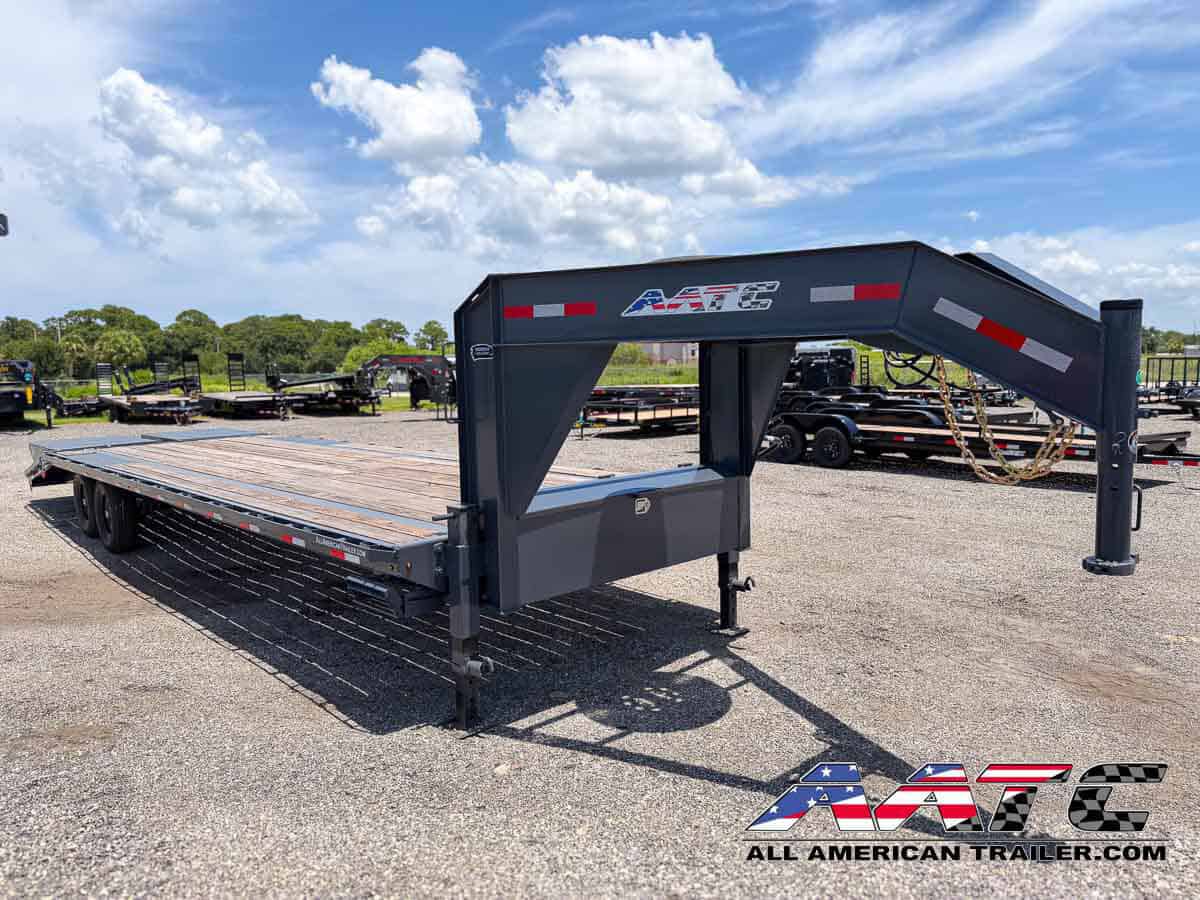

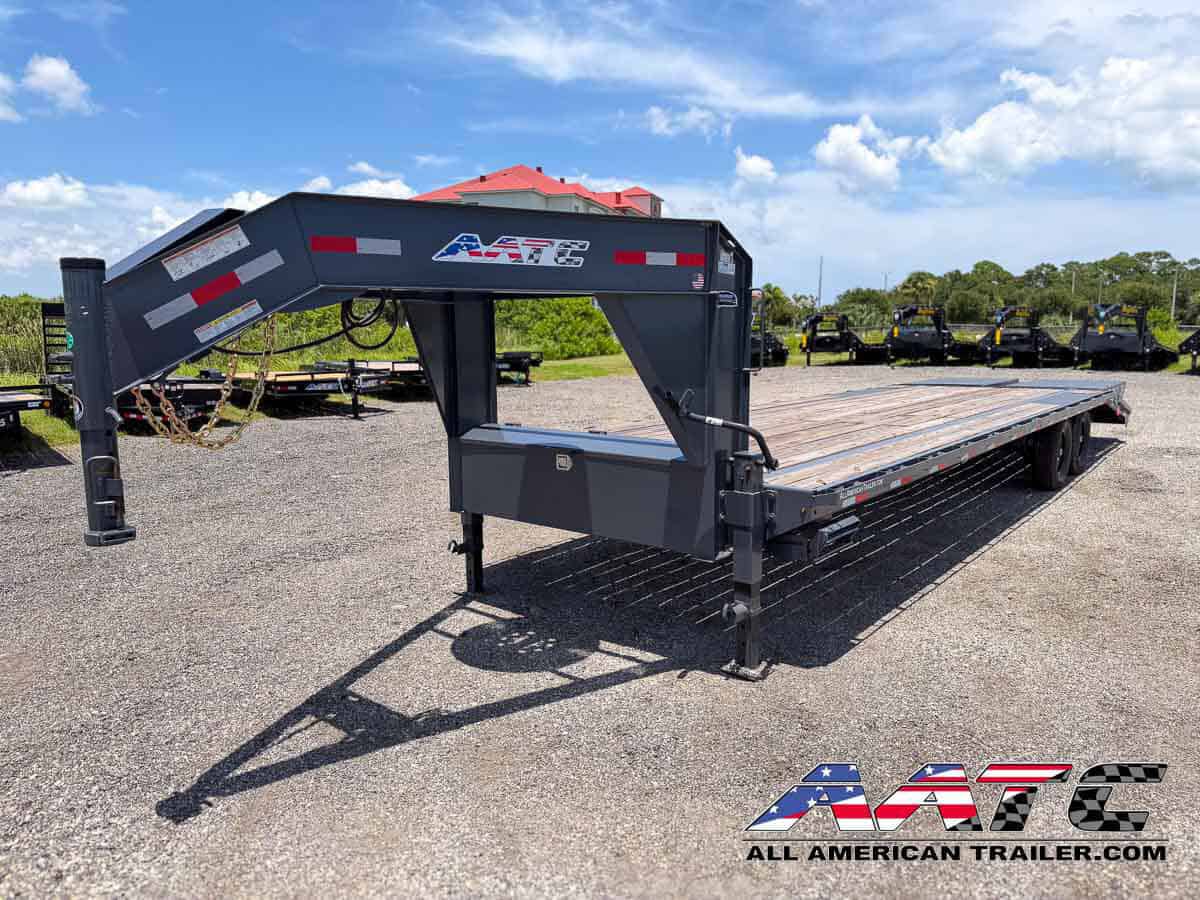

The GN14-20+5MR AATC 25′ GOOSENECK 15,500 GVWR REAL STEEL RAMPS is a professional-grade, medium-duty trailer designed for maximum utility and value. This single-wheel gooseneck combination features a low-profile pierced-beam deck, dual 12K drop-leg jacks, an adjustable coupler, and standard LED lighting. Engineered for demanding hauling tasks, it includes a 20′ deck with a robust 5-foot dovetail and heavy-duty Real Steel Ramps to ensure safe and efficient loading of equipment.
- Coupler: 2-5/16″ Ball Adjustable Gooseneck Coupler
- Jacks: Dual 12,000# Drop Leg Side Wind Jacks (Bolted On)
- Deck Design: Low Profile Bed, Pierced-Beam Frame
- Storage: Lockable Toolbox Between GN Uprights
- Access: (2) Retractable Side Bed Steps & Handles
- Tie-Downs: 3/8″ Heavy Duty Rub Rail with Pockets (24″ On Center) & 1-1/4″ Pipe Chain Spools
- Brakes: Nev-R-Adjust Electric Brakes on All Hubs
- Safety Systems: Complete Break-A-Way System with Charger & Dual 3/8″ Grade 70 Safety Chains with Latch Hooks
- Lighting: Grommet Mount Sealed L.E.D. D.O.T. Stop, Tail, Turn & Clearance Package
- Wiring: Modular Sealed Wiring Harness with 7-Way RV Plug

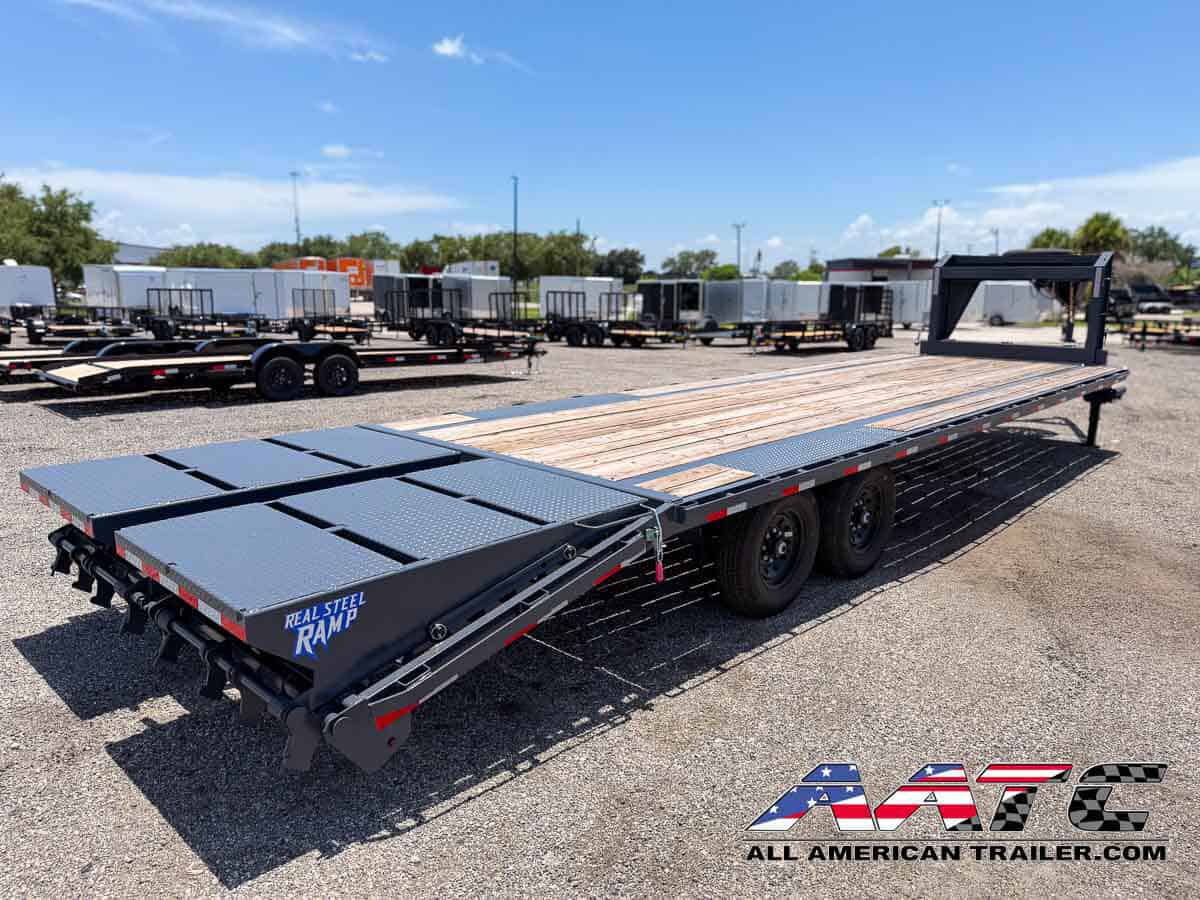

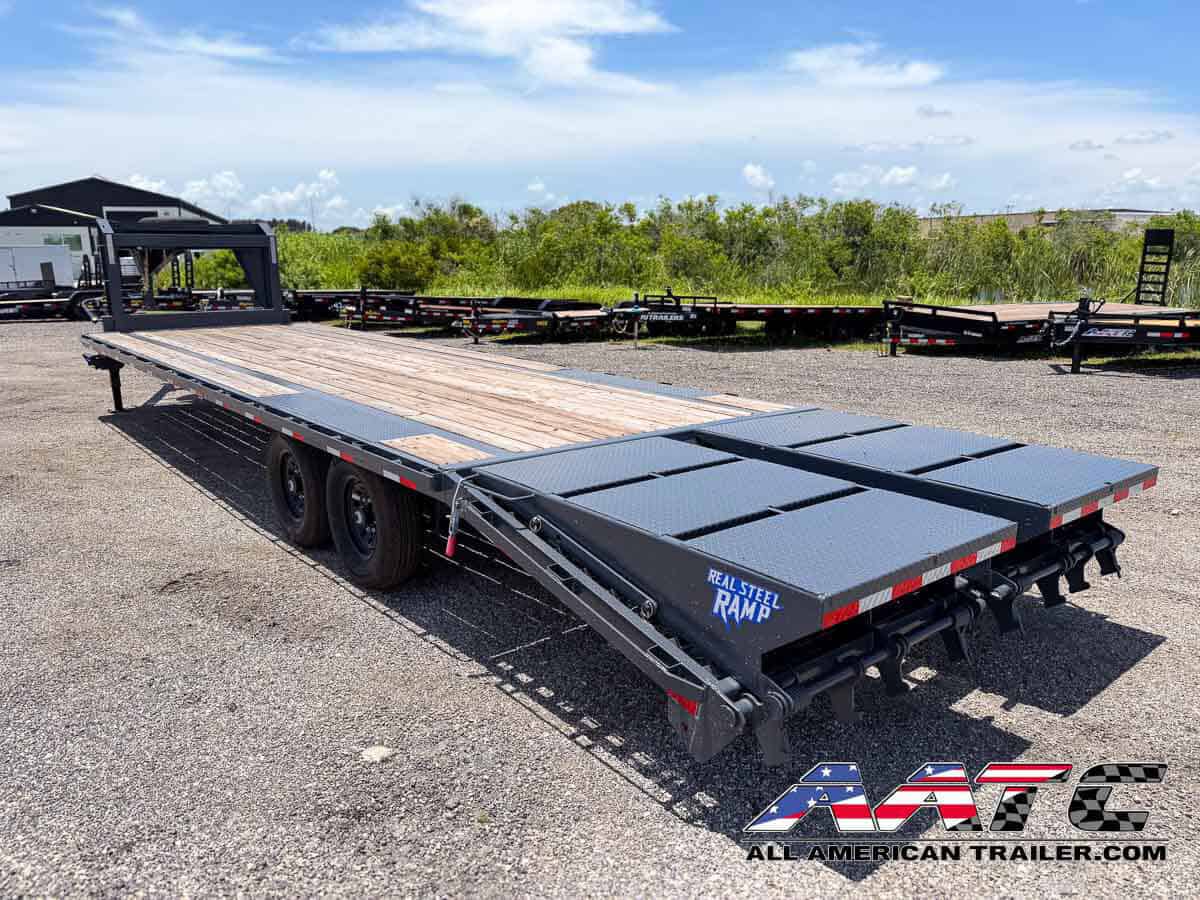

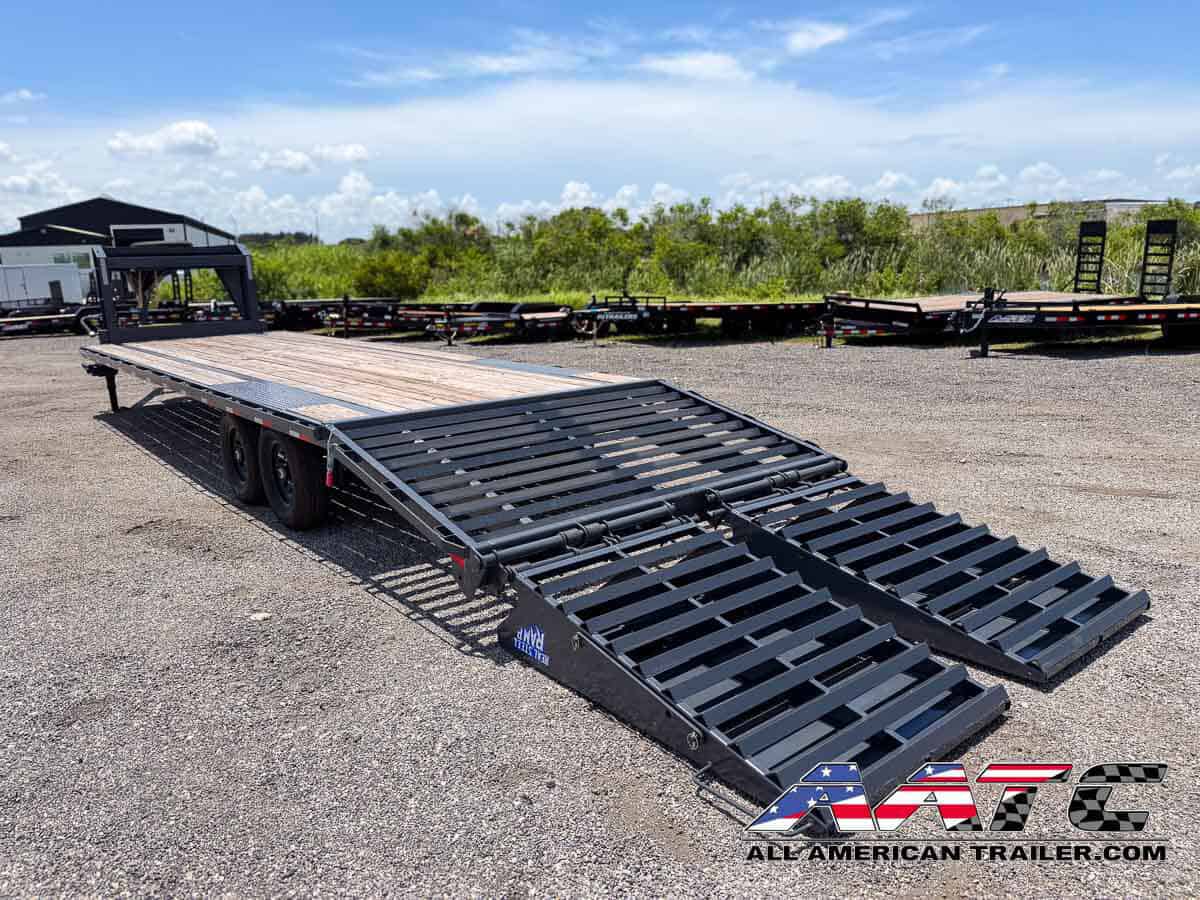

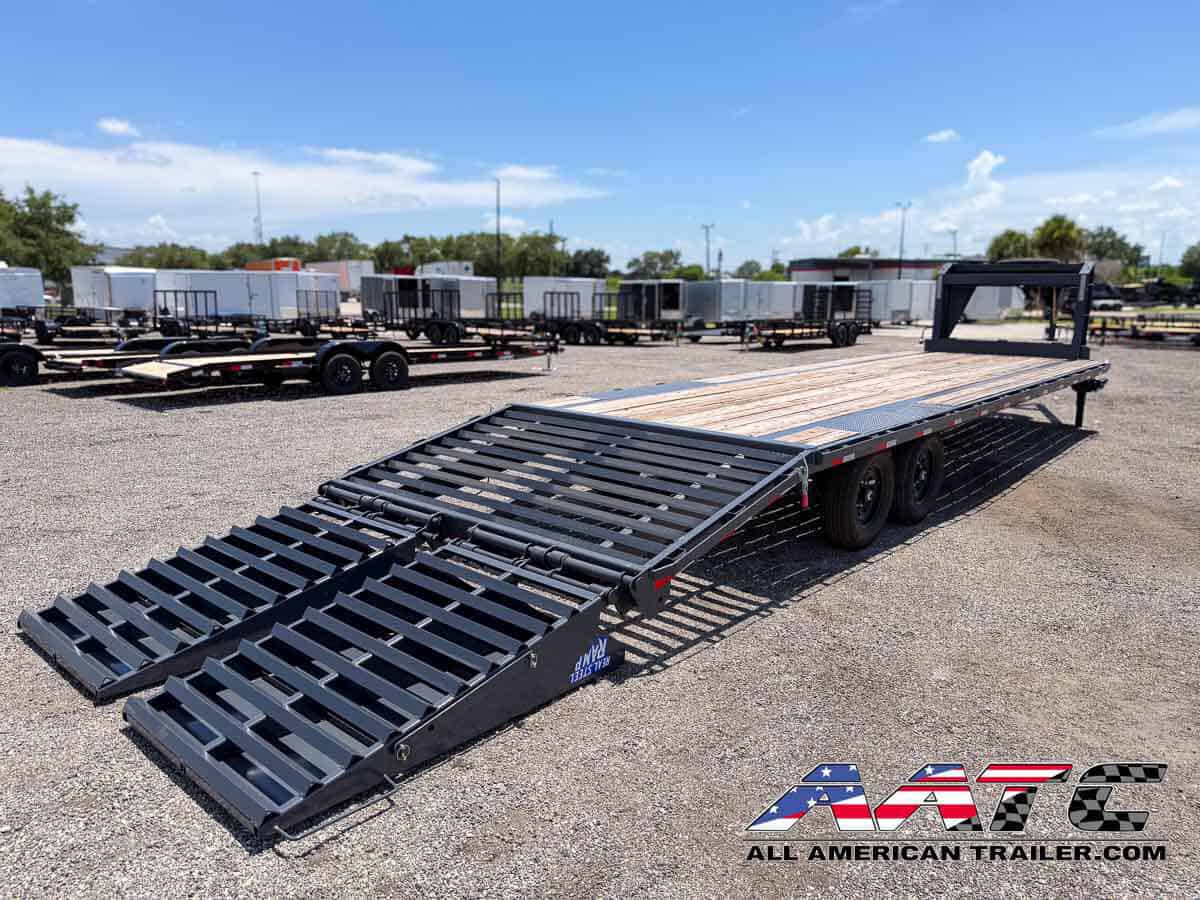

- Loading System: 5′ Dovetail with 5′ Real Steel Ramps (Double Hinged, Spring Assist Flip-Over)
- Wheels & Tires: Radial Tires with Spare Tire & Wheel Included (Top of Neck Mount)
| G.V.W.R. | 15,500# |
|---|---|
| AXLE | (2) 7,000# Dexter Cambered E-Z Lube w/Electric Brakes |
| G.A.W.R. (Ea. Axle) | 7,000# |
| FRAME | 12″ I-Beam |
| NECK | 12″ I-Beam |
| CROSSMEMBERS | 3″ Channel |
| WIDTH | 102″ Overall Width |
|---|---|
| SIDE RAILS | 5″ Channel w/ Rub Rail, Pockets & Spools |
| TOP RAIL | None |
| FLOOR | 2″ Treated Pine |

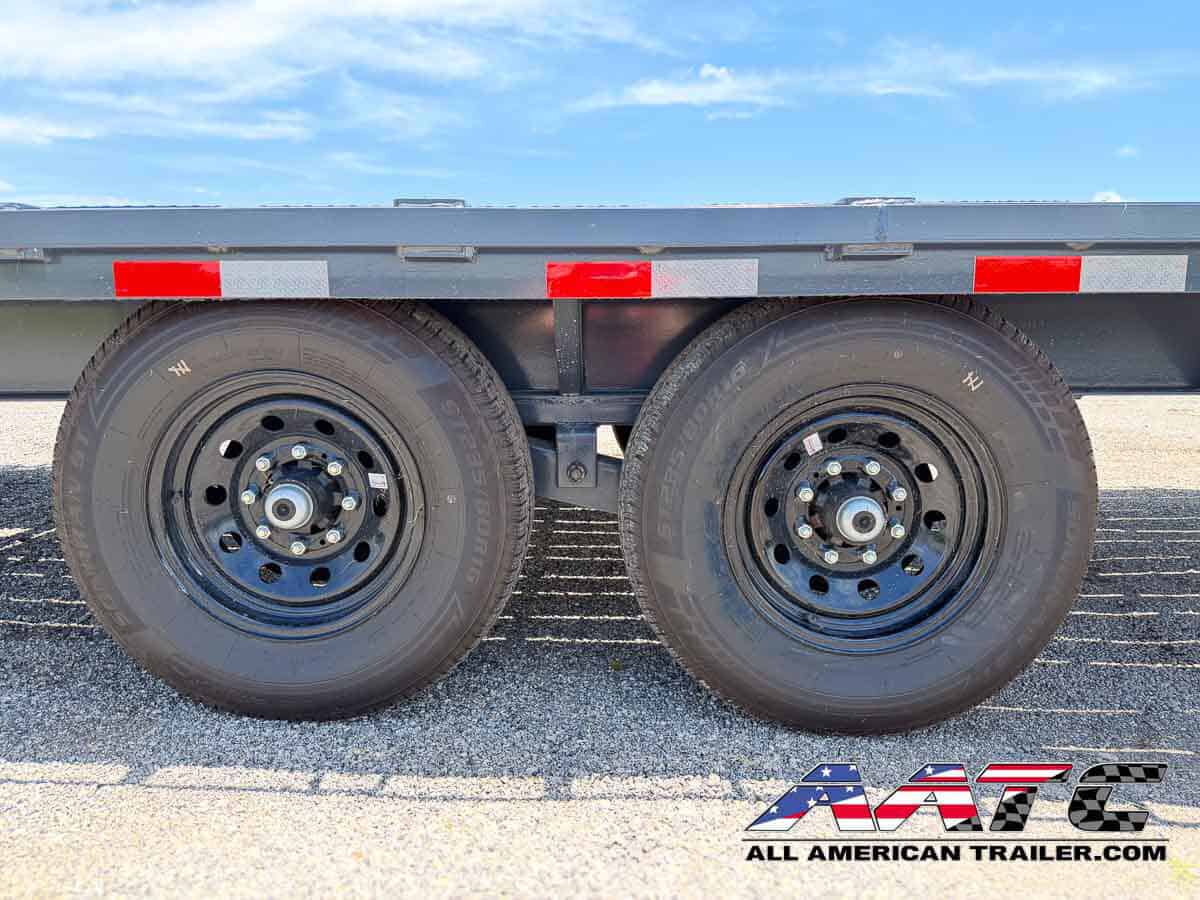

| TIRE | ST235/80 R-16 Load Range E Radial |
| WHEEL | 16″ x 6″; Heavy Black Mod 8 Bolt |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| FINISH | Steel Shot-Cleaned with Superior Quality Protective Coating |
