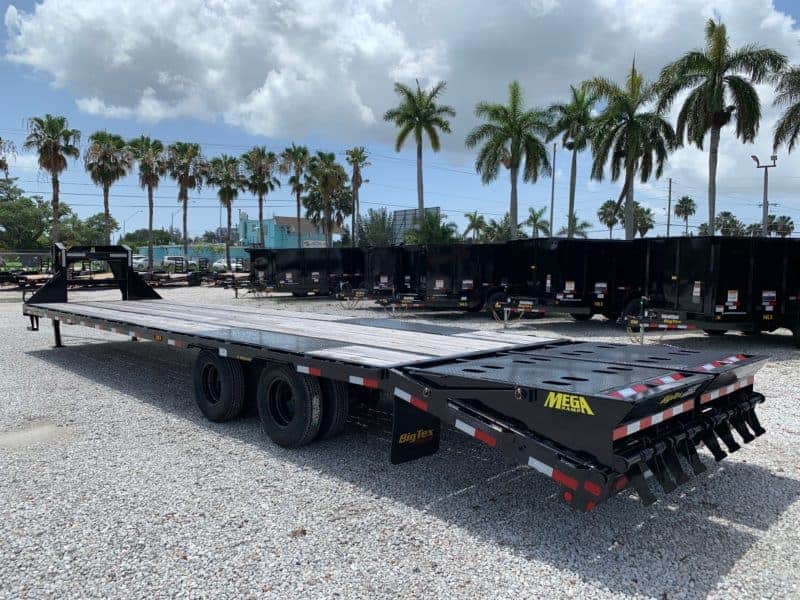

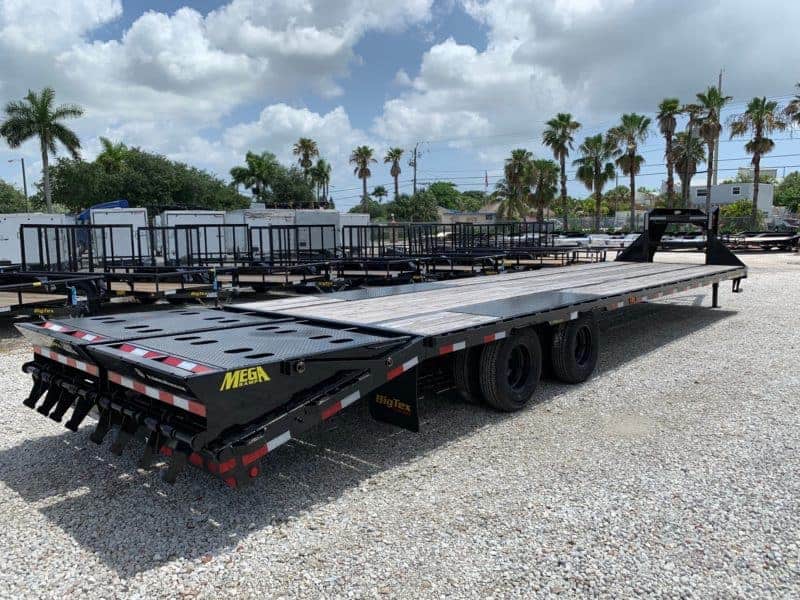

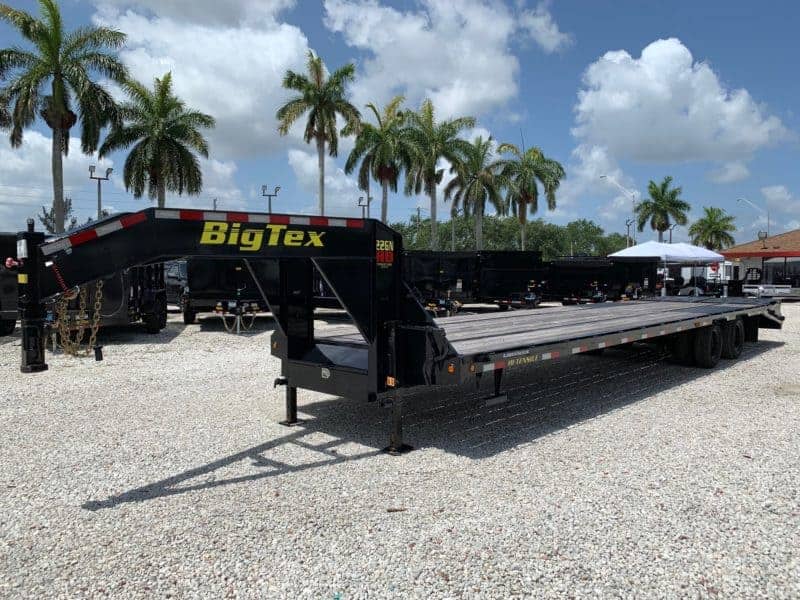

25GN-25+5MR BIG TEX 30′ GOOSENECK TRAILER 25,900 GVWR 13 TON MEGA RAMPS
Store ID #25GN-25+5MR
Price: $21,395.00
- (2) 12,000# Dual Wheel w/ Electric Brakes (Oil Bath)
- Low Profile Bed, Pierced- Beam Frame
- Mega Ramps

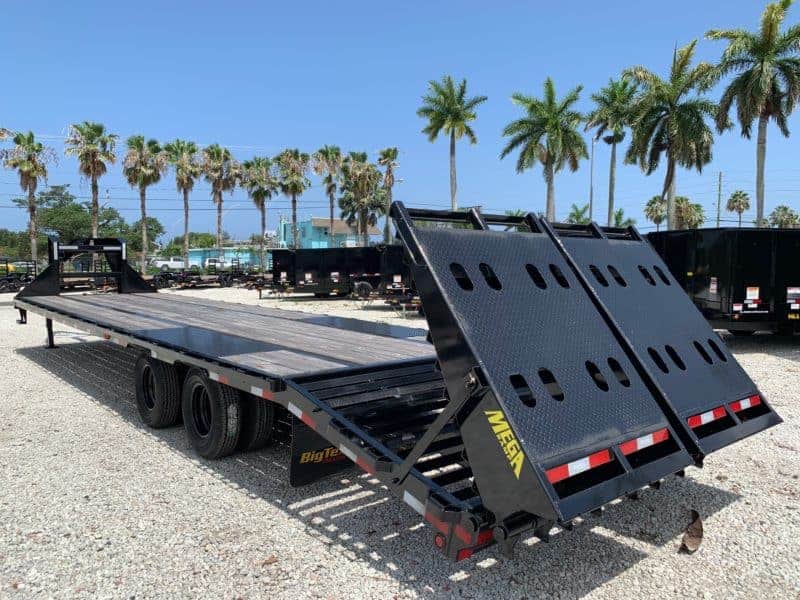

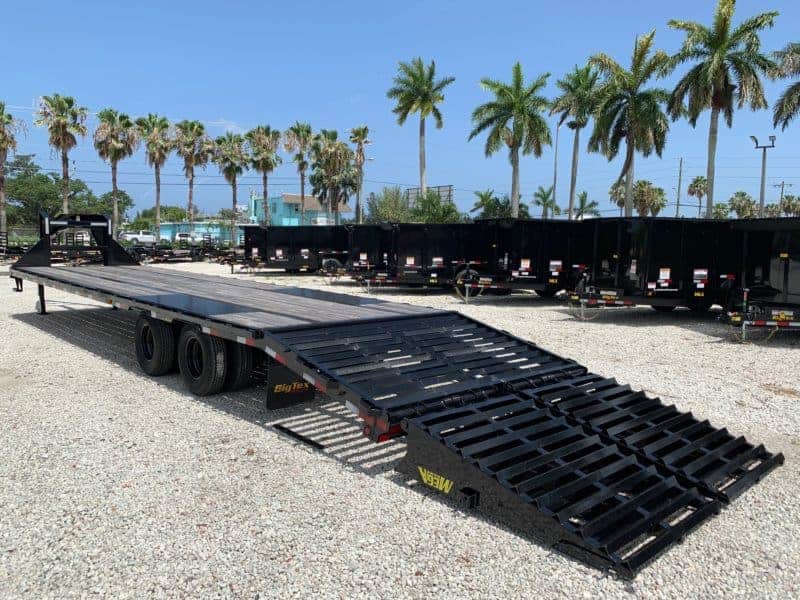

- 5 Dovetail w/ 5 Double Hinged Flip-Over Ramps
- Lippert Brand Axles
- Dual Two Speed Landing Gear
- Radial Tires
- 12″ I Beam Frame, 19#
- Tie Down Pockets Along Sides, 24″ On Center
Print Product Specifications
The 25GN from Big Tex Trailers features 12K heavy-duty axles with Dexter Adjustable suspension. This durable gooseneck trailer comes equipped with a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler.
- 2-5/16″ Ball Adjustable Coupler- Square Crank Type
- Dual Two Speed Landing Gear 50K Capacity (Bolted On)
- Low Profile Bed, Pierced- Beam Frame
- 102″ Overall Width
- (2) Side Bed Steps & Handles
- Lockable Toolbox Between GN Uprights
- 3/8″ Heavy Duty Rub Rail
- Tie Down Pockets Along Sides, 24″ On Center
- 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
- Oil Bath Hubs
- Dexter Brand Axles
- Forward Self Adjusting Brakes
- Torque Tube Standard on 28 (Flat Deck) & Longer
- Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- 5 Dovetail w/ 5 Double Hinged Spring Assisted Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Spare Tire Mount (Top of Neck)
- Radial Tires
- Spare Tire & Wheel – Standard Equipped
- Mudflaps
- Images shown with Optional Sliding Winch Track- Can be added for additional charge
| AXLE | (2) 12,000# Dual Wheel w/Electric Brakes (Oil Bath) |
|---|---|
| JACK | Dual Two Speed Landing Gear |
| TIRE | ST235/80 R-16 Load Range E Dual |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 12″ I Beam, 19# |
| WHEEL | 16″ x 6″; Dual Wheel 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | 2-5/16″ Ball Adj. Square Crank Type |
| NECK | 12″ I Beam, 19# |
| G.V.W.R. | 25,900# |
|---|---|
| TOP RAIL | None |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Gooseneck |
| SIDE RAILS | 8″ Channel w/Rub Rail, Tie Down Pockets on 24″ Centers, and Chain Spools |
| SUSPENSION | Heavy Duty 30,000# Adjustable |
| CROSSMEMBERS | 3″ Channel |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 12,000# |
