PL-20+5MR PJ 25′ DECKOVER EQUIPMENT TRAILER 25,000 GVWR 20+5 MONSTER RAMPS
Store ID #PL-20+5MR
Price: $15,795.00
- Low Profile Bed, Pierced I-Beam Frame * Stronger Frame , Lower Deck Heigth *

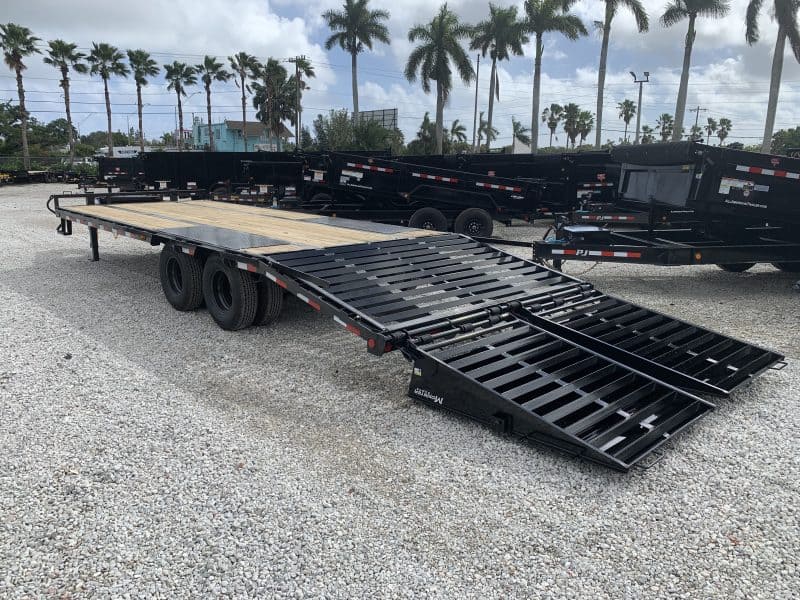

- FULL WIDTH MONSTER RAMP UPGRADE FOR SAFE AND EASY LOADING
- DUAL LANDING GEAR JACKS TO PROVIDE STABILITY AND LIFTING POWER
- 14 PLY TIRE UPGRADE – SUPER DUTY TIRES PREVENT BLOWOUTS
- LIPPERT BRAND AMERICAN MADE AXLES THAT YOU CAN TRUST

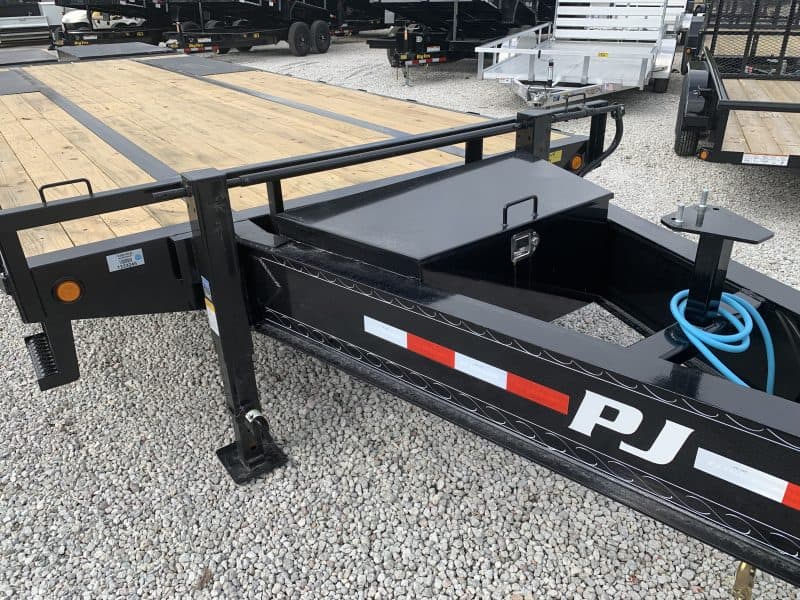

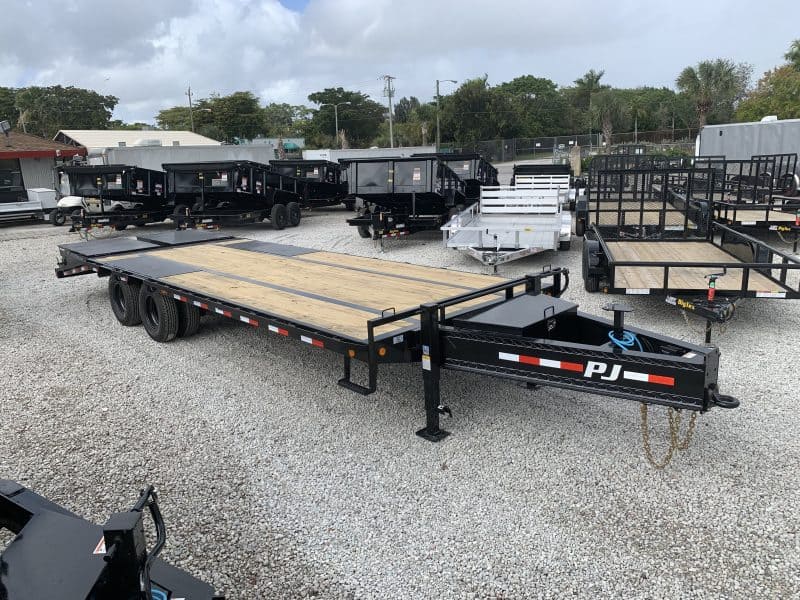

- TOOL BOX ON TONGUE FOR EXTRA STORAGE
- PRIMED AND POWDER COATED FRAME FOR A LONG LASTING FINISH
- 30,000 LB ADJUSTABLE HDSS SUSPENSION (HUTCH STYLE SUSPENSION)
Print Product Specifications
The PJ PL is a Super Duty Deckover Equipment Trailer. With its Tandem Dual Axles rated at 10,000 lbs each and its 30,000 lb adjustable suspension, this trailer is a workhorse ready to haul heavy equipment. The Dual Jacks help stabilize the front end and provide extra lifting power when unhooking. This Model can be purchased with axles rated up to 16,000 lbs for heavier load capacities.
- 3″ ID Pintle Ring
- 12,000# Drop Leg Jacks
- 102″ Overall Width
- Low Profile Bed, Pierced- Beam Frame
- (2) Side Bed Steps
- 3/8″ Heavy Duty Rub Rail
- Tie Down Pockets Along Sides, 24″ On Center
- 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
- Oil Bath Hubs
- Lippert Brand Axles
- Forward Self Adjusting Brakes
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Spare Tire Mount (Inside Tongue)
- 5 Dovetail w/ 5 Double Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Radial Tires
- Mudflaps
- Spare Tire & Wheel-Standard Equipped
| AXLE | (2) 10,000# Dual Wheel w/Electric Brakes |
|---|---|
| JACK | Single 12,000# Drop Leg Jack-Bolted On |
| TIRE | ST235/80 R-16 Load Range G Dual |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 12″ I Beam |
| WHEEL | 16″ x 6″; Dual Wheel 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 12″ I Beam; Integral w/ Frame |
| COUPLER | 3″ ID Pintle Ring |
| FENDERS | Deckover |
| G.V.W.R. | 25,000# |
|---|---|
| TOP RAIL | None |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Pintle Hitch |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| CROSSMEMBERS | 3″ Channel |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 10,000# |
