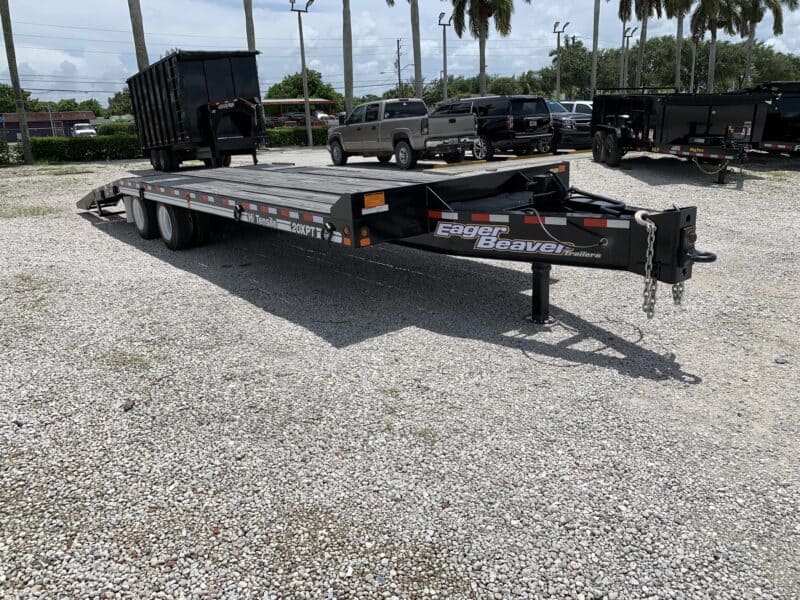

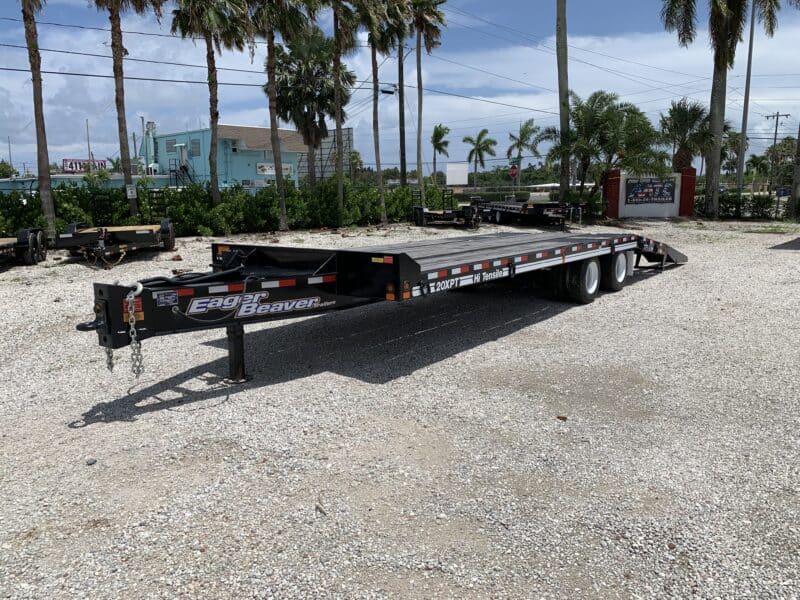

EAGER BEAVER 20 TON DECKOVER HEAVY EQUIPMENT TRAILER 21+6

Store ID #22PH-25+5-1

Price: $18,995.00

• All-Wheel ABS (4S2M) With Spring Brakes On All Axles

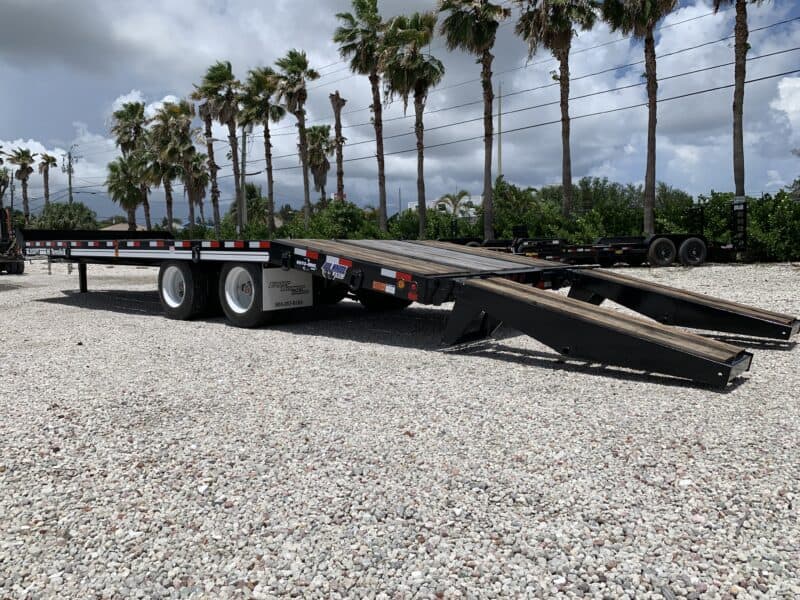

• 6′ Beavertail & 6′ Ramps (8 degree beavertail)

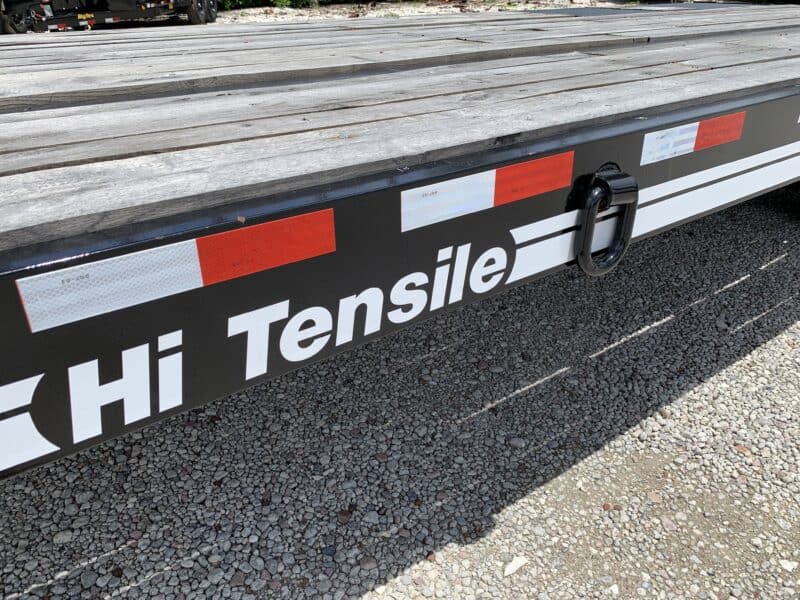

• 14″ Hi-Tensile Steel Mainframe With Cold-Formed Drawbar
• 6″ Crossmembers Pierced Through Mainframe
• 22,500 # Axles, 5″ Diameter, Maximum Track Width
• 215 / 75R 17.5 Radial Tires On Hub-Piloted Disc Wheels

Contact Dealer
Print Product Specifications

The 20XPT for Eager Beaver has become recognized as the an industry standard in 20 ton equipment trailers. Since 1946 Eager beaver has been
producing the most reliable and heavy duty equipment trailers on the market. This is a great trailer for hauler up to 40,000 lbs behind
large trucks with air brakes.

  • Pintle Ring
  • 70,000 lbs. static / 40,000 lbs. lift (Heavy Duty 2-speed)
  • 102″ Overall Width
  • Low Profile Bed, Pierced- Beam Frame
  • Five per side – Patented “ROTO RINGS”® Swivel 360º
  • Oil Bath Hubs
  • 22,500 LB Axles
  • ABS AIR Brakes
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • 2″ hardwood deck

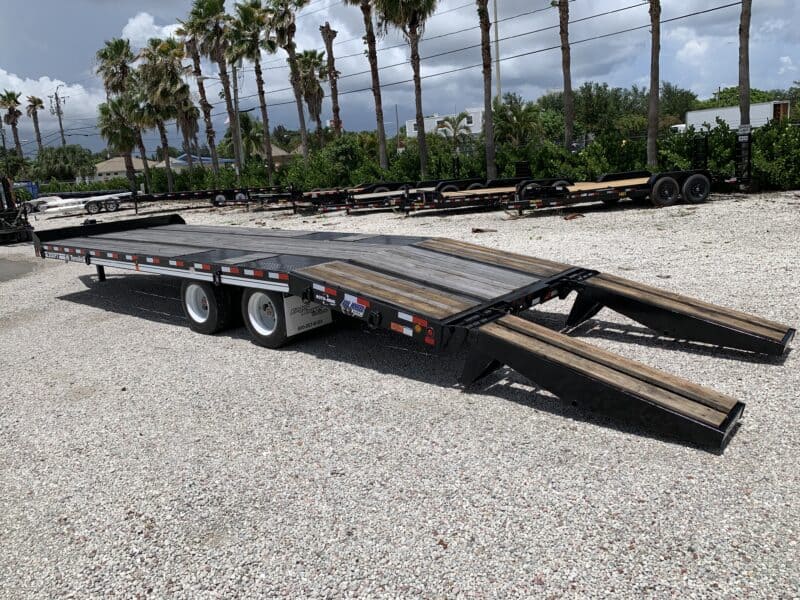

  • 6′ Dovetail w/ 6′ assisted Flip-Over Ramps
  • Radial Tires
  • Mudflaps
  • 6″ I-Beam pierced through mainbeam



AXLE 22,500 lb axles (Oil Bath)
JACK 70,000/40,000 dual speed
TIRE 215/75R 17.5 (H)
FLOOR 2″ Hardwood
FRAME 14″ I Beam
WHEEL 17.5″; Dual Wheel 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 14″ I Beam, 22#

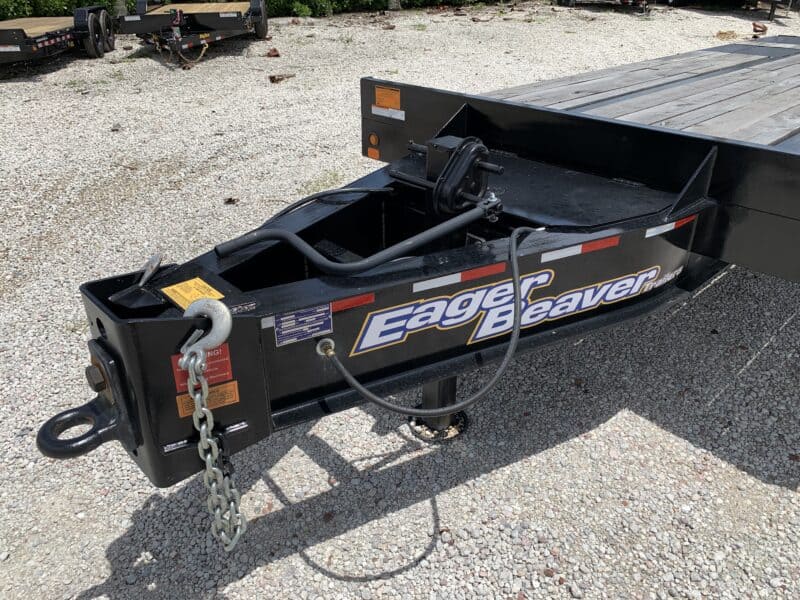

COUPLER Pintle Ring
FENDERS Deckover
G.V.W.R. 48,000#
TOP RAIL None
ELEC. PLUG 7-Way HD round
HITCH TYPE Pintle Hitch
SUSPENSION Hutch H-9700, capacity 50,000 lbs
CROSSMEMBERS 6″ I-beam
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 1/2″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 22,500#

Additional information

Brand

Big Tex

Width

8.5'

Length

30'

Load Capacity

15,900

GVWR

22,000

Tounge Type

Pintel/ military ring
