GN16-35+5MR AATC 40′ GOOSENECK 17,500 GVWR 9 TON MEGA RAMPS – NON CDL
Store ID #GN16-35+5MR
Price: $13,395.00
- Low Profile Bed, Pierced- Beam Frame makes loading easier

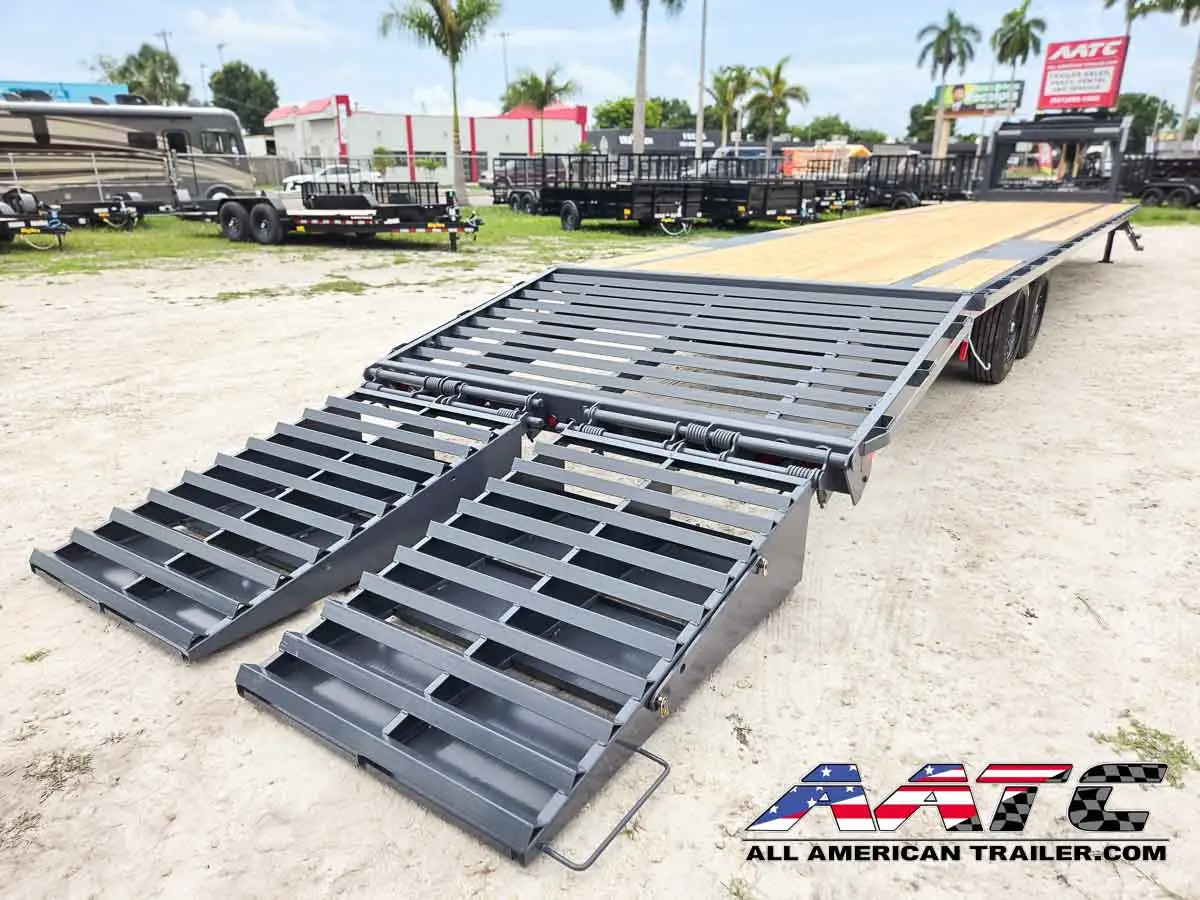

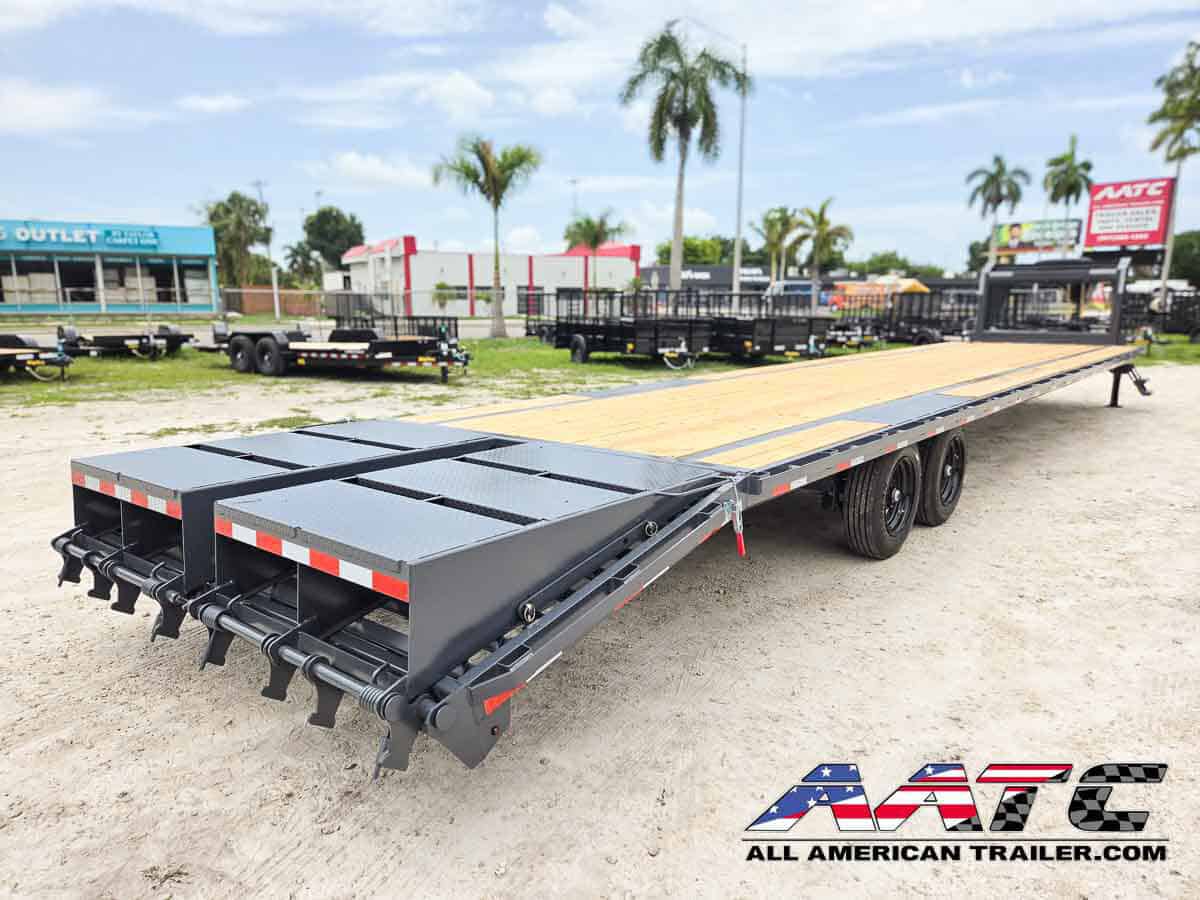

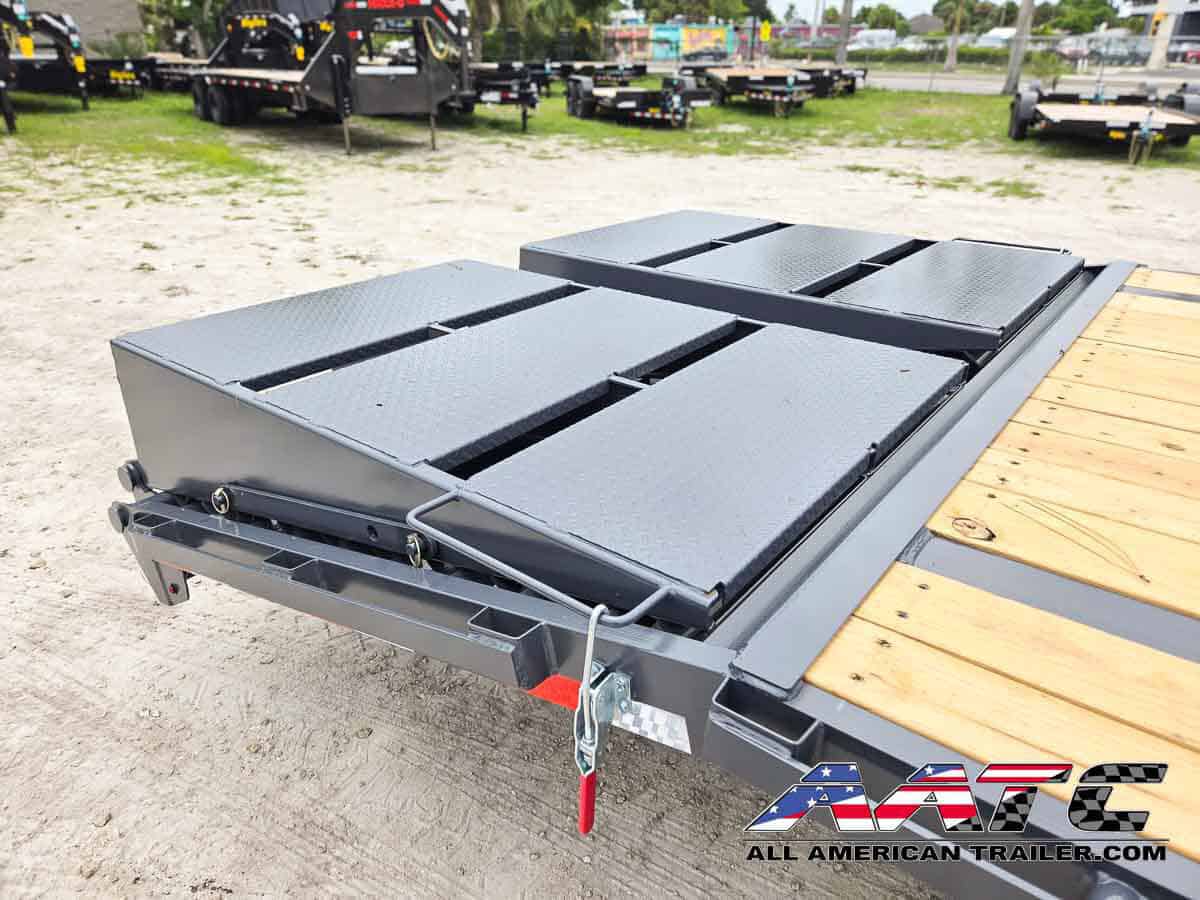

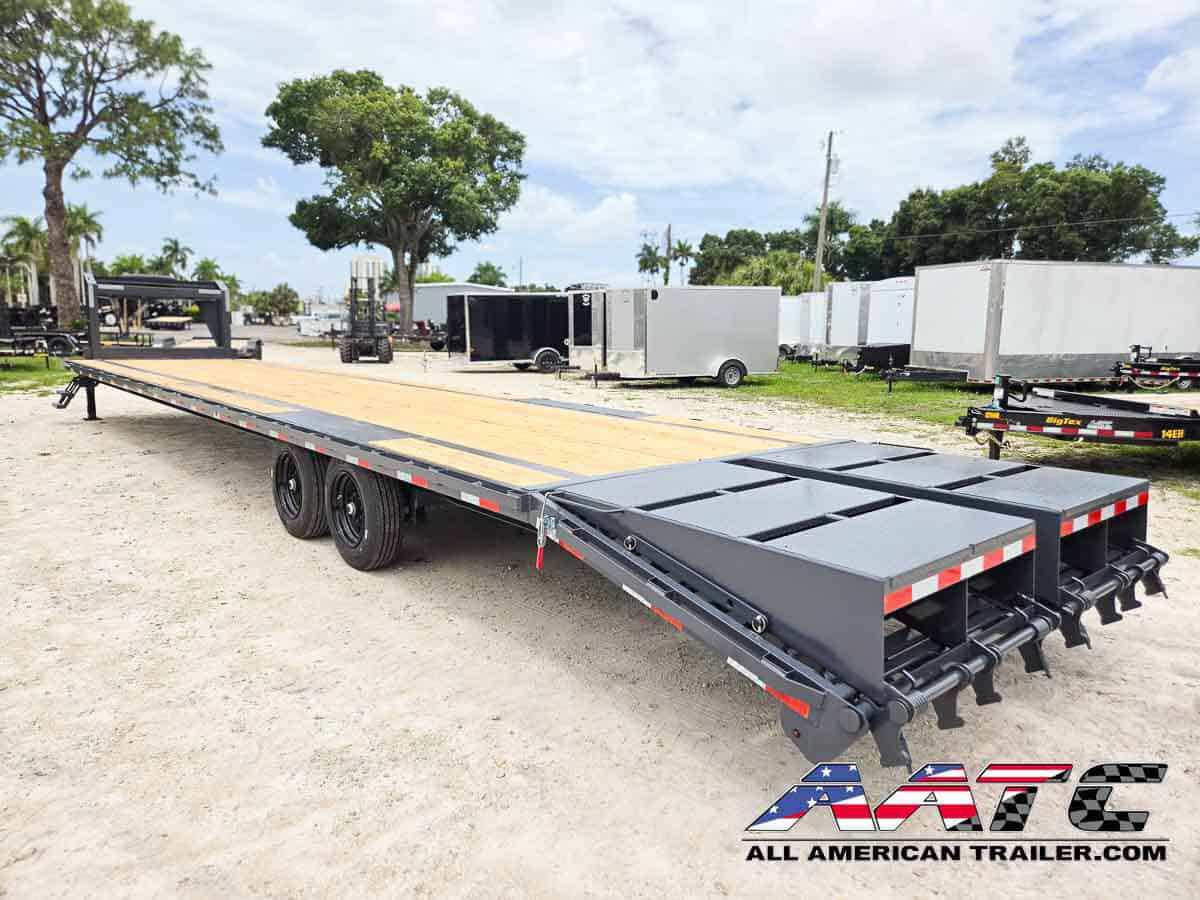

Mega Ramps – Allow Loading on all 40′ & Safe loading of equipment
Dexter Brand, American Made Axles for a Ride you can Trust
Full Size storage toolbox built into Neck

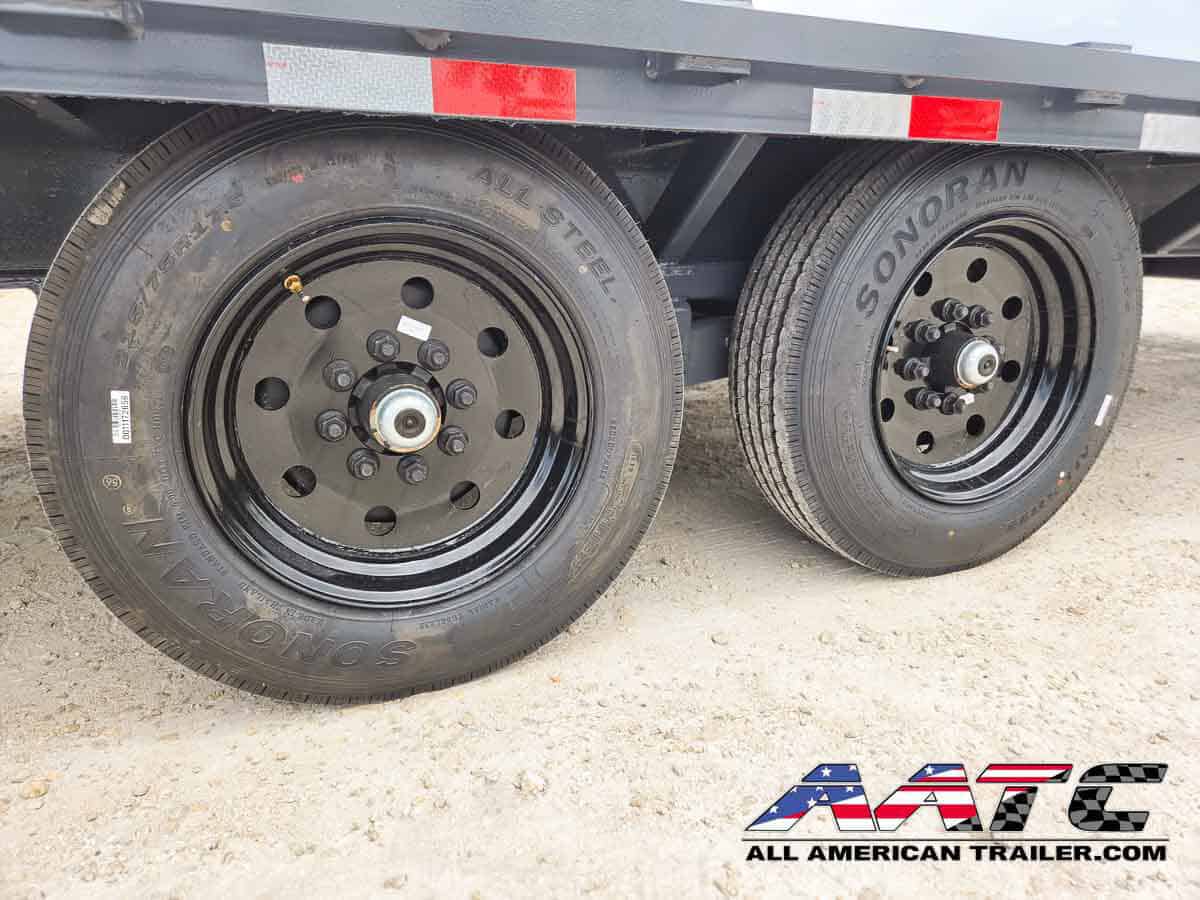

17.5″ Wheels with 16 Ply Radial Tires
8,000 lb Grease Axles – Heavier Duty Bearings and Axle over standard 7k Axles
Tie Down Pockets Along Sides, Full Length Rub Rail
Print Product Specifications
The GN16 is our durable gooseneck trailer equipped with 8K heavy-duty axles. This unit features a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler
- Dual 12,000# Drop Leg Jacks- (Bolted On) w/ Greasable Handle
- 2-5/16″ Ball Adjustable Coupler- Square Crank Type
- Low Profile Bed, Pierced- Beam Frame
- 102″ Overall Width

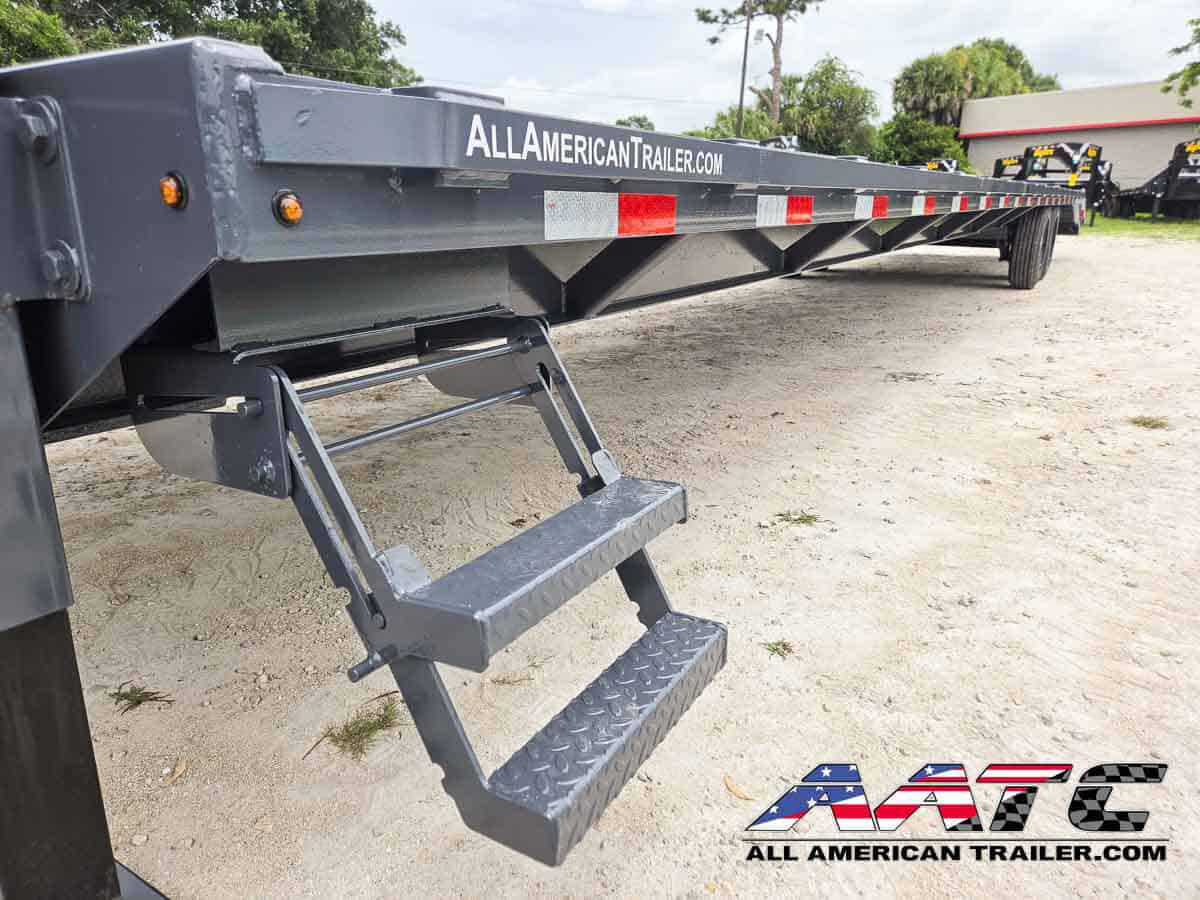

- (2) Side Bed Steps & Handles
- Lockable Toolbox Between GN Uprights
- 3/8″ Heavy Duty Rub Rail
- Tie Down Pockets Along Sides, 24″ On Center
- 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
- Grease Hubs
- Dexter Brand Axles
- Cambered Axles
- Forward Self Adjusting Brakes
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Spare Tire Mount (Top of Neck)
- Radial Tires
- Spare Tire & Wheel – Standard Equipped
- 16 Ply Tires
| AXLE | (2) 8,000# Dual Wheel w/Electric Brakes |
|---|---|
| JACK | Dual 12,000# Drop Leg Jacks (Bolted On) |
| TIRE | ST215/75R17.5 LRH Tires |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 12″ I Beam, 16# |
| WHEEL | 17.5″ x 6″; Dual Wheel 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | 2-5/16″ Ball Adj. Square Crank Type |
| NECK | 12″ I Beam, 16# |
| G.V.W.R. | 17,500# |
|---|---|
| TOP RAIL | None |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Gooseneck |
| SIDE RAILS | 5″ Channel w/Rub Rail, Tie Down Pockets, and Chain Spools |
| SUSPENSION | Heavy Duty Spring |
| CROSSMEMBERS | 3″ Channel |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 8,000# |
