14TL-20 BIG TEX 20′ TANDEM AXLE TILT 14,000 GVWR 16+4
Store ID #14TL-20
Price: $8,595.00
- HYDRAULIC DAMPENING SYSTEM
- STATIONARY FRONT DECK
- UNIQUE TWO PIECE MAIN FRAME
- RUBRAIL & TIE DOWN POCKETS ALONG SIDES
- 12,000# DROP LEG JACK
- HYDRAULIC LOCK VALVE
- POWDER COATED FRAME
- LIPPERT AXLES
- RADIAL TIRES
Print Product Specifications

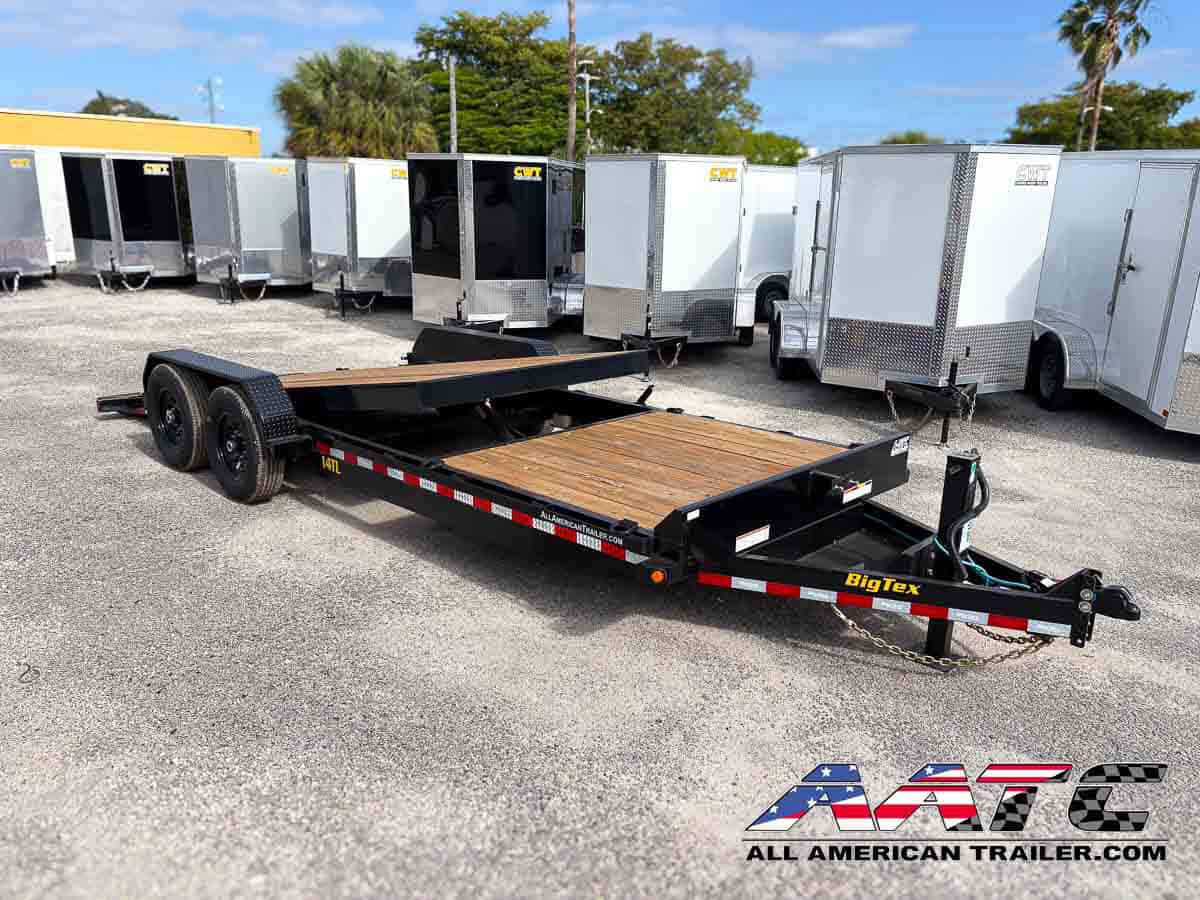

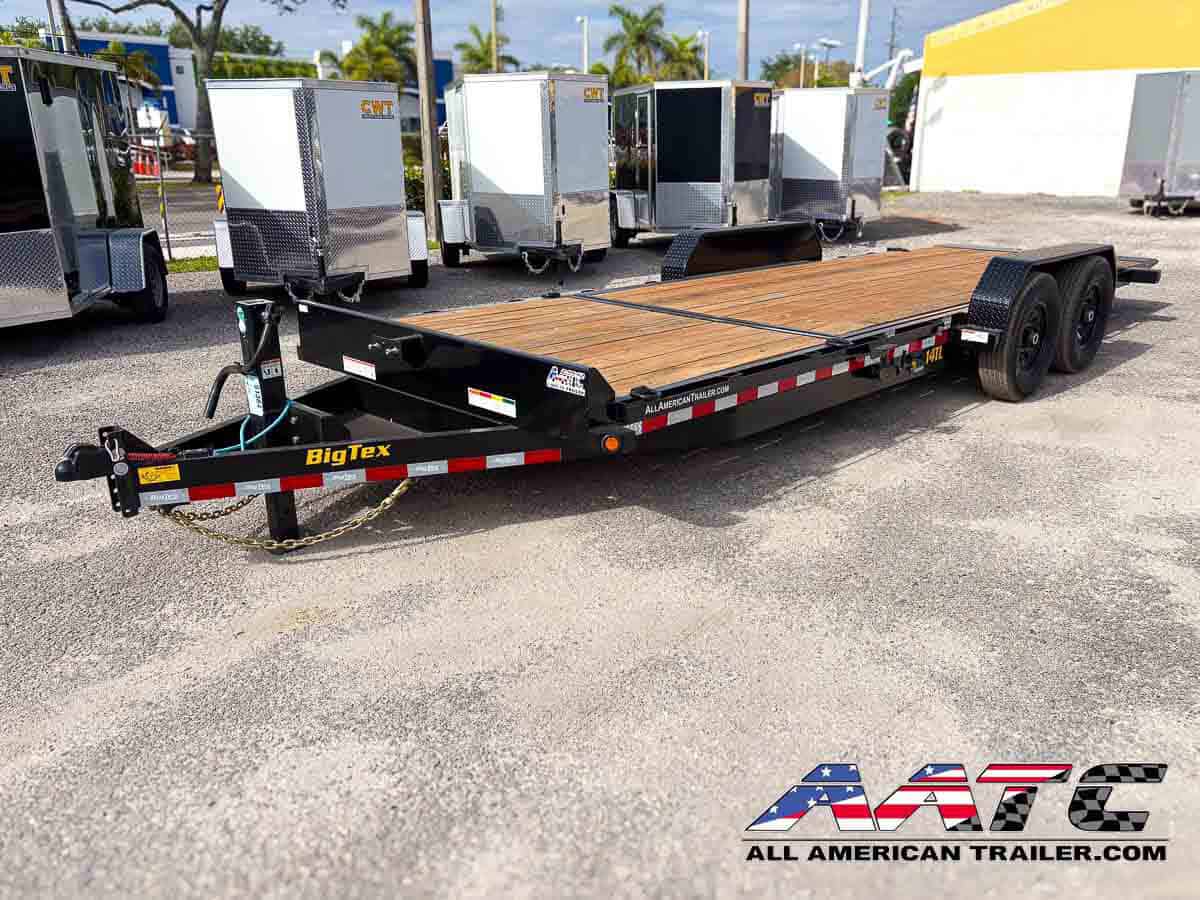

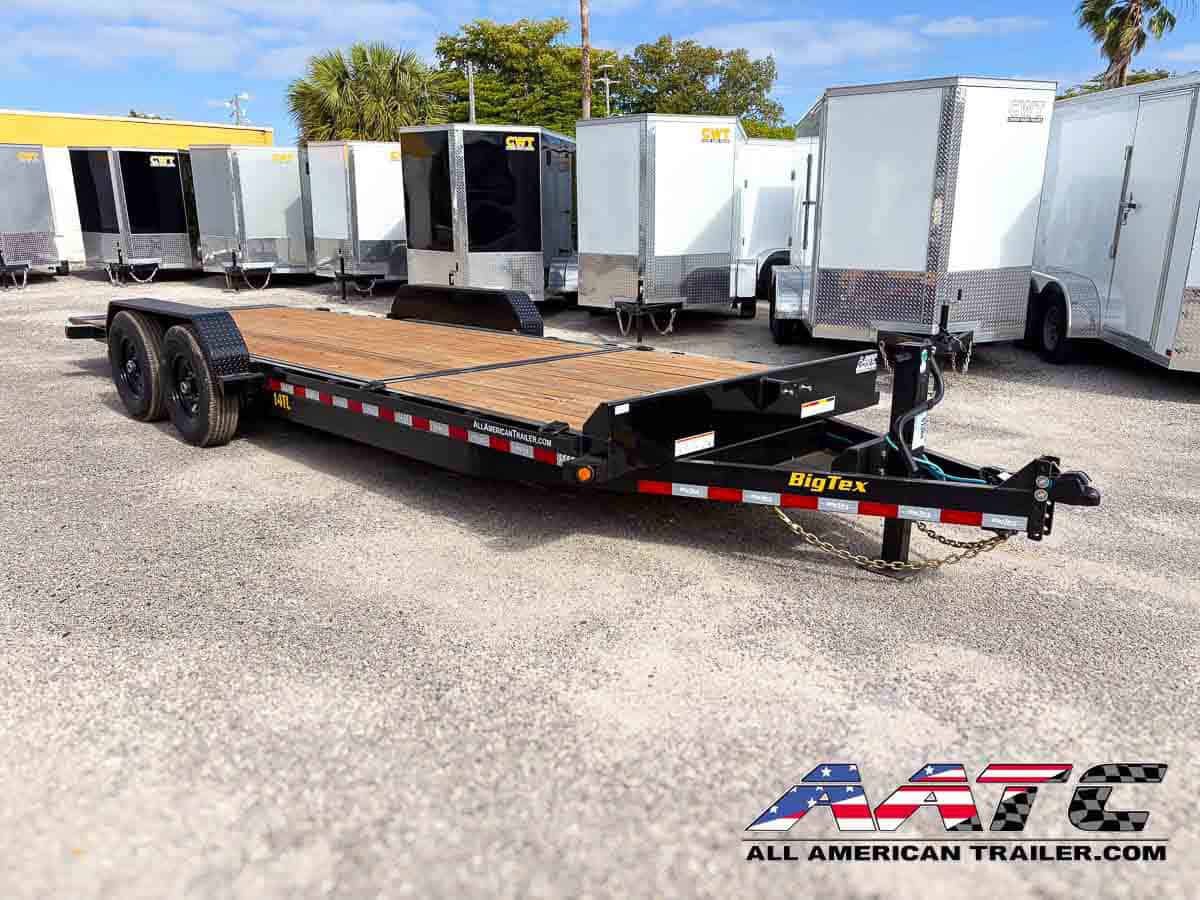

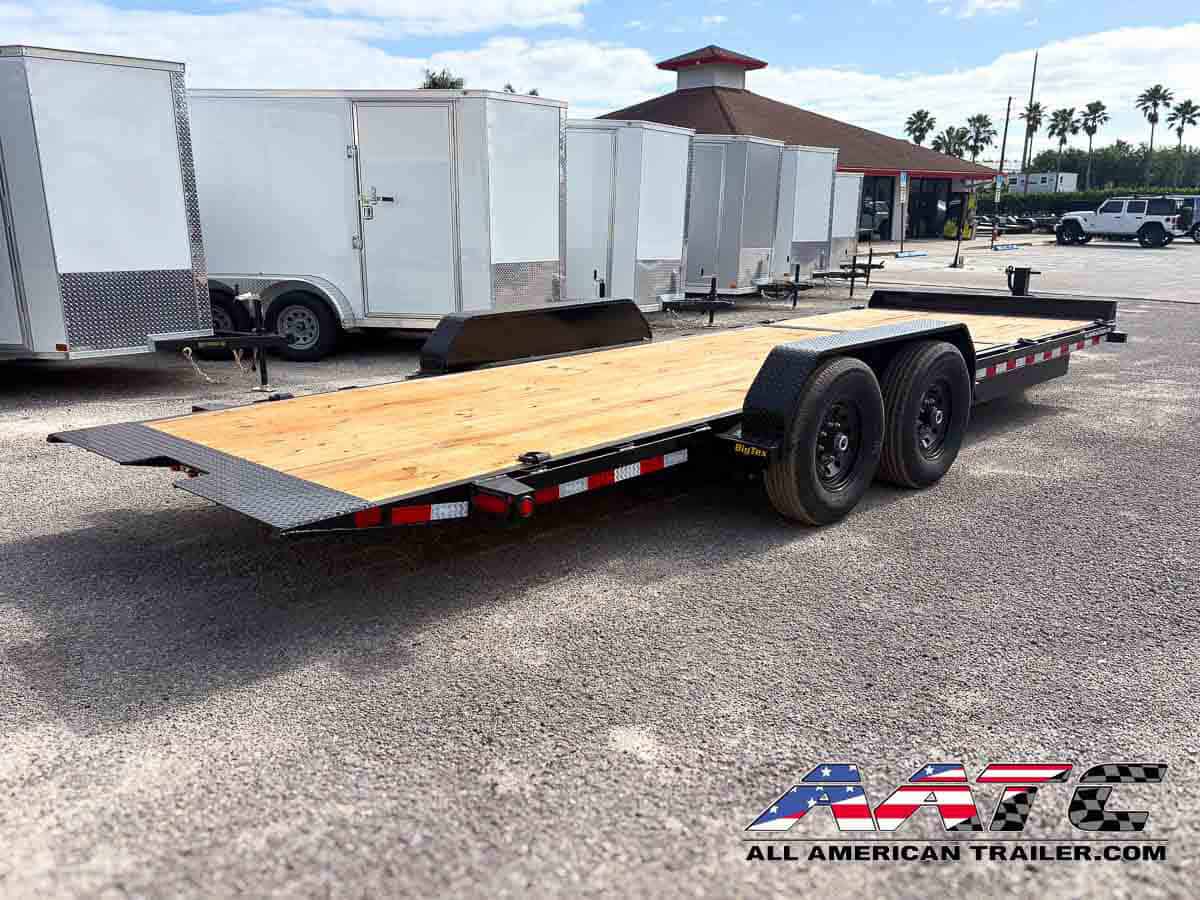

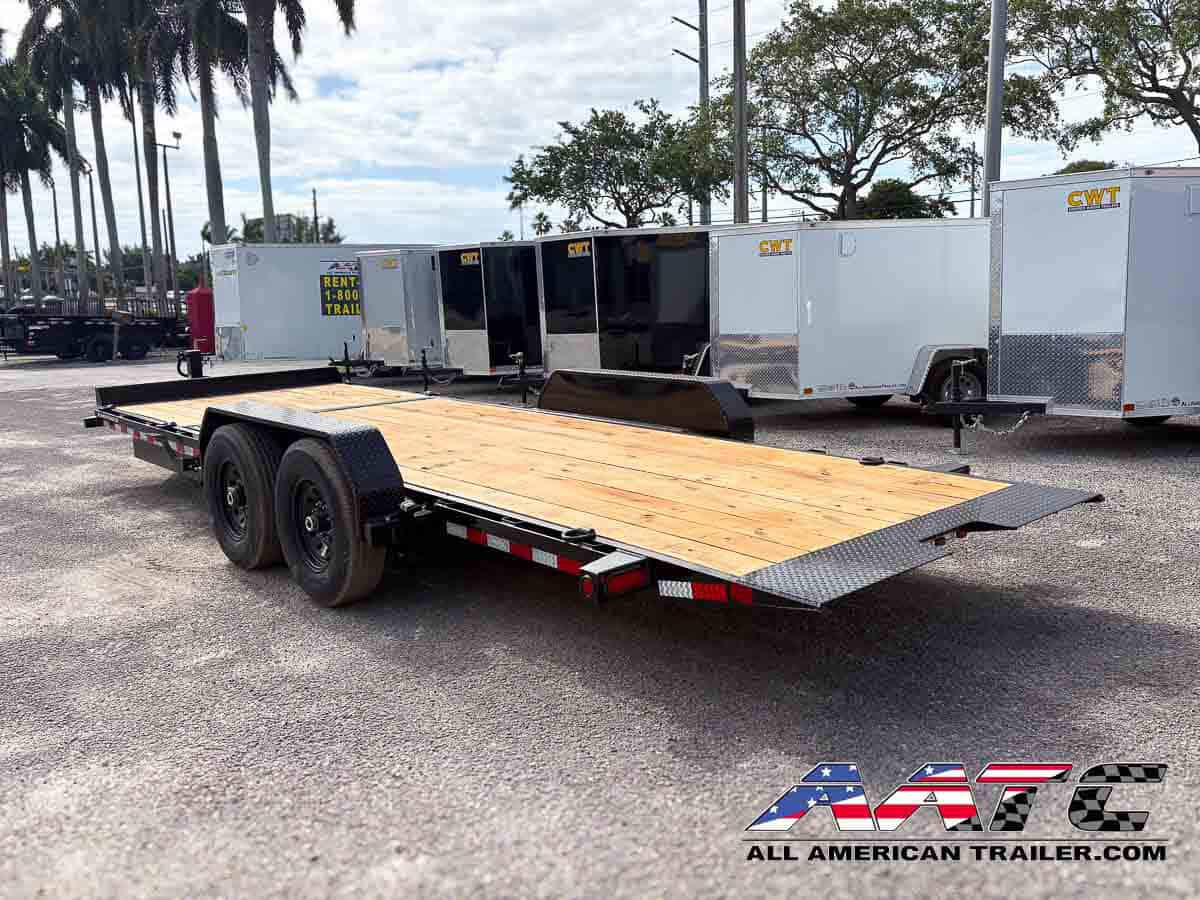

The 14TL is a stationary platform tilt-deck trailer with a 4-foot stationary deck on the front (6-foot deck on the 22). This unit, similar to the 14FT, is designed to haul medium-duty, low-profile equipment.
- Rubrail and Tie Down Pockets Along Sides

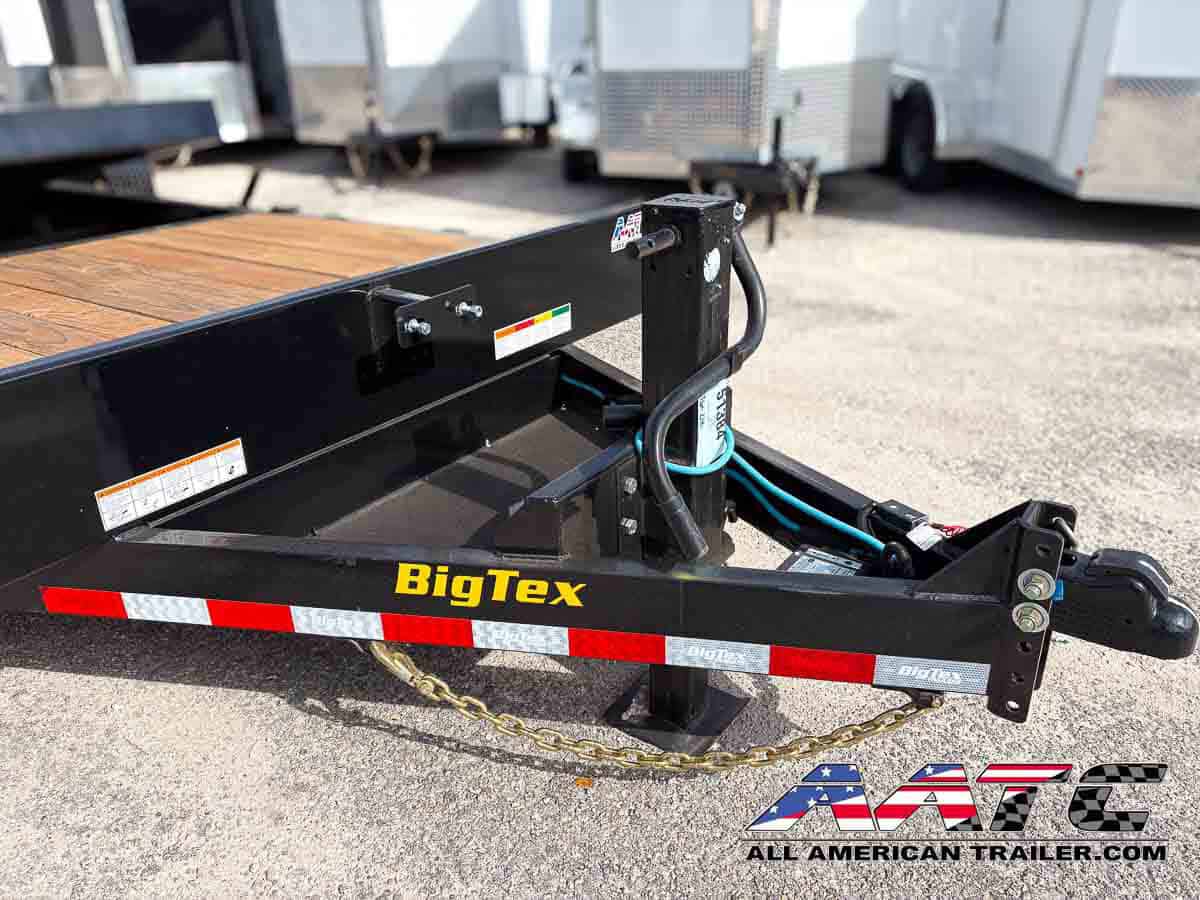

- Adjustable 2-5/16″ 14,000# Cast Coupler
- Fold Back/Wrap Tongue w/ Raised Coupler
- 12,000# Drop Leg Jack- Side Wind Against Bed
- 2″ Tubular Stop Rail
- EZ Lube Hubs
- Lippert Brand Axles
- Nev-R-Adjust Electric Brakes on All Hubs
- Cambered 4″ Drop Axles
- Complete Break-A-Way System w/Charger
- Double Broke Diamond Plate Fenders (Removable)
- Stationary Front Deck for Added Versatility
- Unique Two Piece Main Frame
- 102″ Wide Overall, 83″ Width Between Fenders
- Tilt Platform is 75″ Wide
- Hydraulic Dampening System
- 1/4 Diamond Plate Knife Edge on Rear
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount (Front)

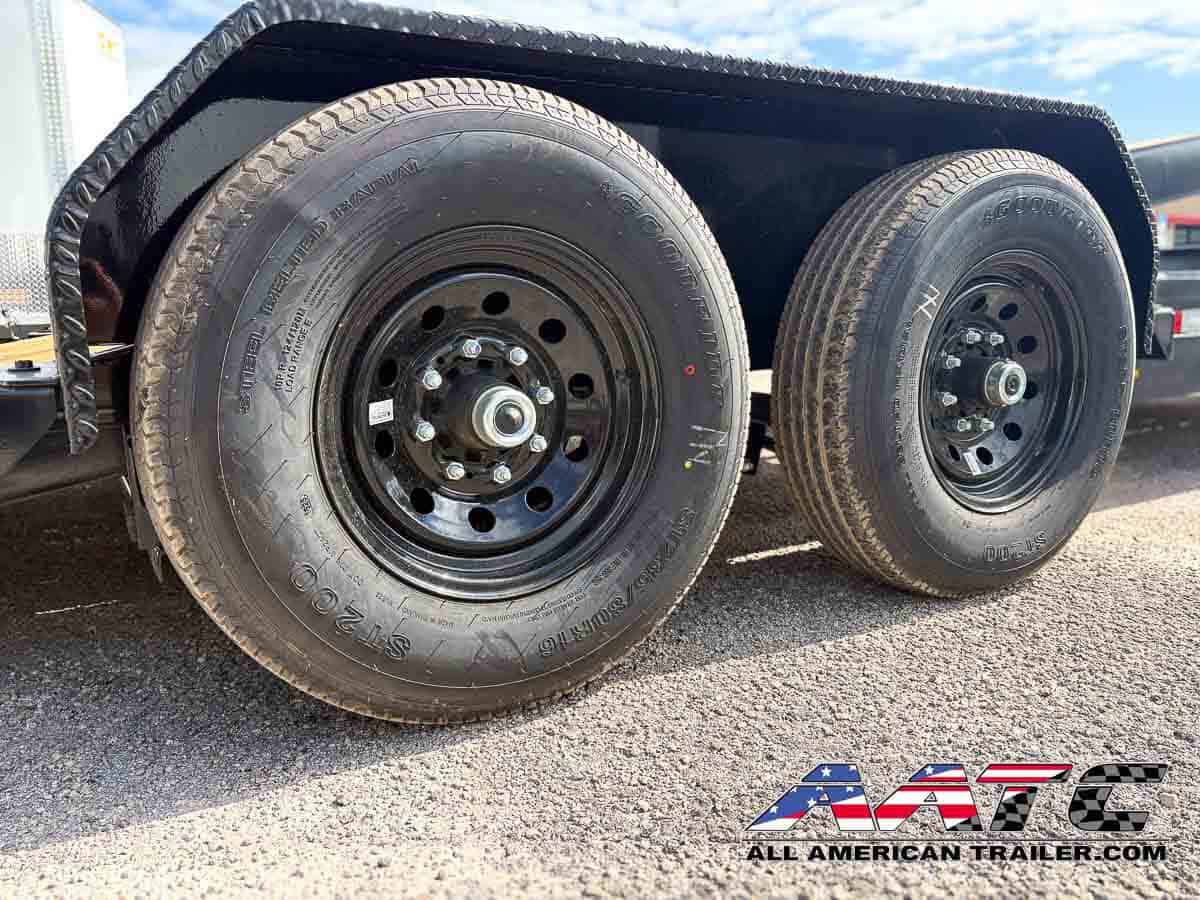

- Radial Tires
| AXLE | (2) 7,000#, 4″ Drop EZ Lube w/Electric Brakes |
|---|---|
| JACK | 12,000# Drop Leg Jack-Side Wind |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 6″ Channel |
| WHEEL | 16″ x 6″; Heavy Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 6″ Channel Fold Back |
| COUPLER | Adjustable 14K Cast 2-5/16″ |
| FENDERS | 9″ x 72″ Double Square Brake Diamond Plate (Removable) |
| UPRIGHTS | NONE |
|---|---|
| G.V.W.R. | 14,000# |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| CROSSMEMBERS | 3″ Channel, 3″ Sq. Tube |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 ea) |
| FRONT STOP RAIL | Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 7,000# |
