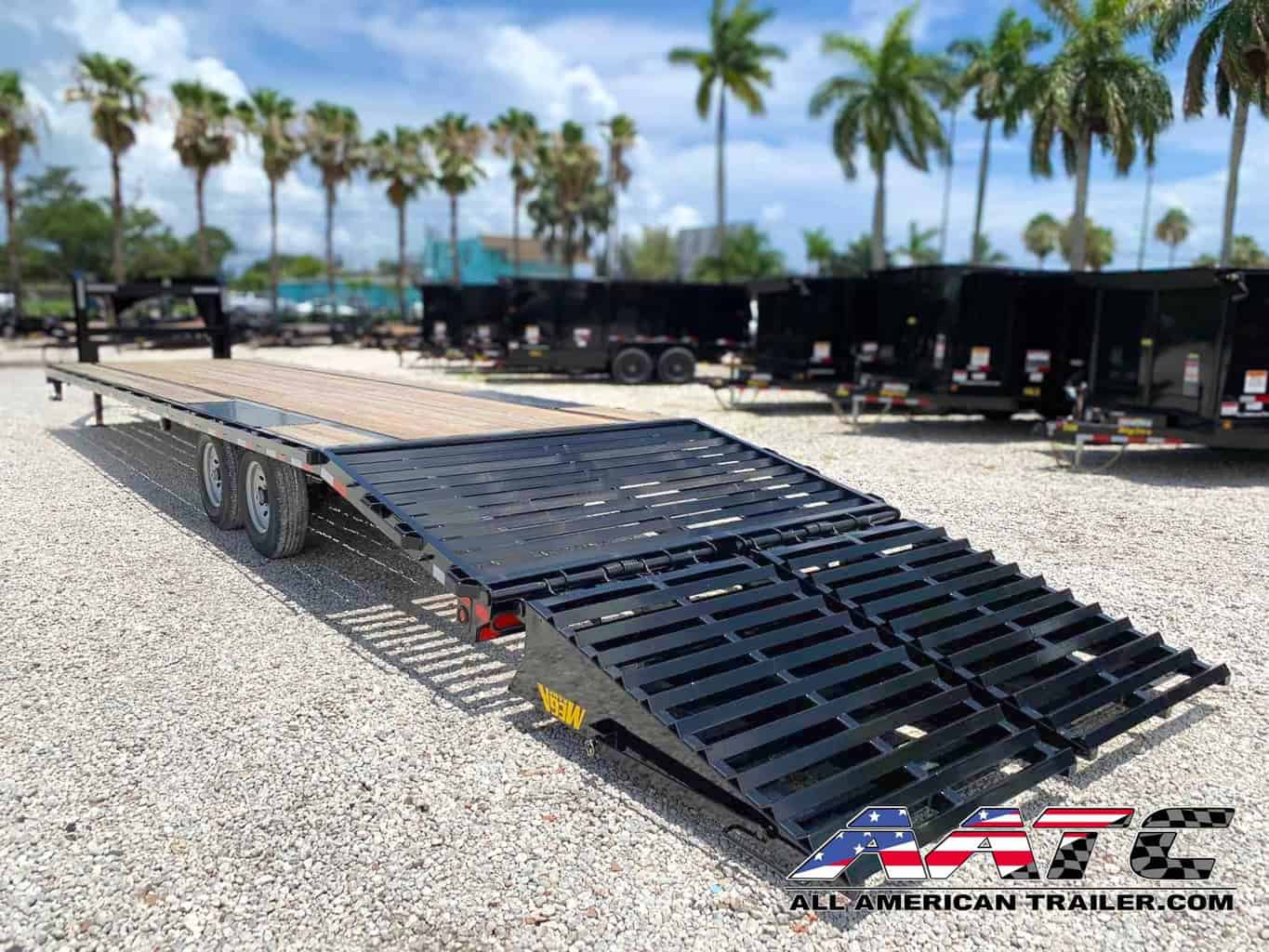

14GN-28+5MR BIG TEX 33′ GOOSENECK TRAILER 15,900 GVWR 8 TON MEGA RAMPS (CAN BE DERATED TO NON CDL)
Store ID #14GN-28+5MR
Price: $12,995.00
- Low Profile Bed, Pierced- Beam Frame
- Mega Ramps Upgrade
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Lockable Toolbox Between GN Uprights
- Dexter Brand Axles
- Dual 12,000# Drop Leg Jacks (Bolted on)
- Radial Tires
- Grommet Mount Sealed Lighting
Print Product Specifications
The 14GN from Big Tex Trailers is our medium-duty, single-wheel gooseneck. This model combines many of unique Big Tex features-low-profile decks, LED lights, treated floor, dual jacks and an adjustable coupler-providing a professional-grade trailer that delivers for an exceptional value.
- 2-5/16″ Ball Adjustable Pipe Coupler
- Dual 12,000# Drop Leg Jacks- (Bolted On)
- 102″ Overall Width
- Low Profile Bed, Pierced- Beam Frame
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8″ Heavy Duty Rub Rail
- Tie Down Pockets Along Sides, 24″ On Center
- 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
- E-Z Lube Hubs
- Dexter Brand Axles
- Nev-R-Adjust Electric Brakes on All Hubs
- Cambered Axles
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Spare Tire Mount (Top of Neck)
- Radial Tires
- Spare Tire & Wheel – Standard Equipped
| AXLE | (2) 7,000# E-Z Lube w/Electric Brakes |
|---|---|
| JACK | Dual 12,000# Drop Leg Side Wind (Bolted On) |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 12″ I Beam |
| WHEEL | 16″ x 6″; Heavy Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | 2-5/16″ Ball Adjustable Pipe |
| NECK | 12″ I Beam |
| G.V.W.R. | 15,900# |
|---|---|
| TOP RAIL | None |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Gooseneck |
| SIDE RAILS | 5″ Channel w/Rub Rail, Tie Down Pockets on 24″ Centers, and Chain Spools |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| CROSSMEMBERS | 3″ Channel |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 7,000# |
