14FT-16 BIG TEX 16′ TANDEM AXLE FULL TILT 14,000 GVWR

Store ID #14FT-16

Price: $8,295.00

  • HYDRAULIC DAMPENING SYSTEM
  • STATIONARY FRONT DECK
  • UNIQUE TWO PIECE MAIN FRAME
  • RUBRAIL & TIE DOWN POCKETS ALONG SIDES
  • 12,000# DROP LEG JACK
  • HYDRAULIC LOCK VALVE
  • POWDER COATED FRAME
  • LIPPERT AXLES
  • RADIAL TIRES
Contact Dealer
Print Product Specifications

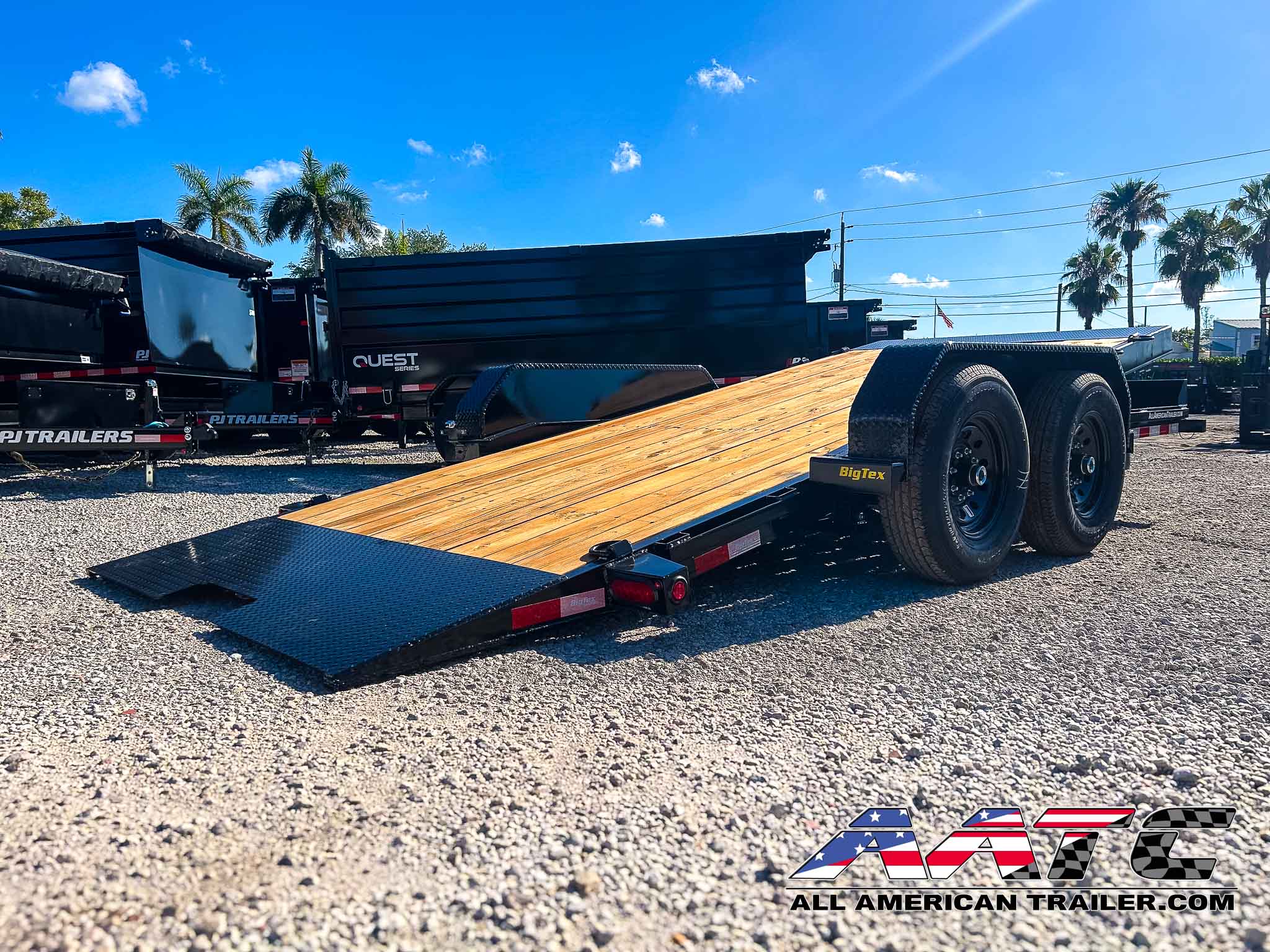

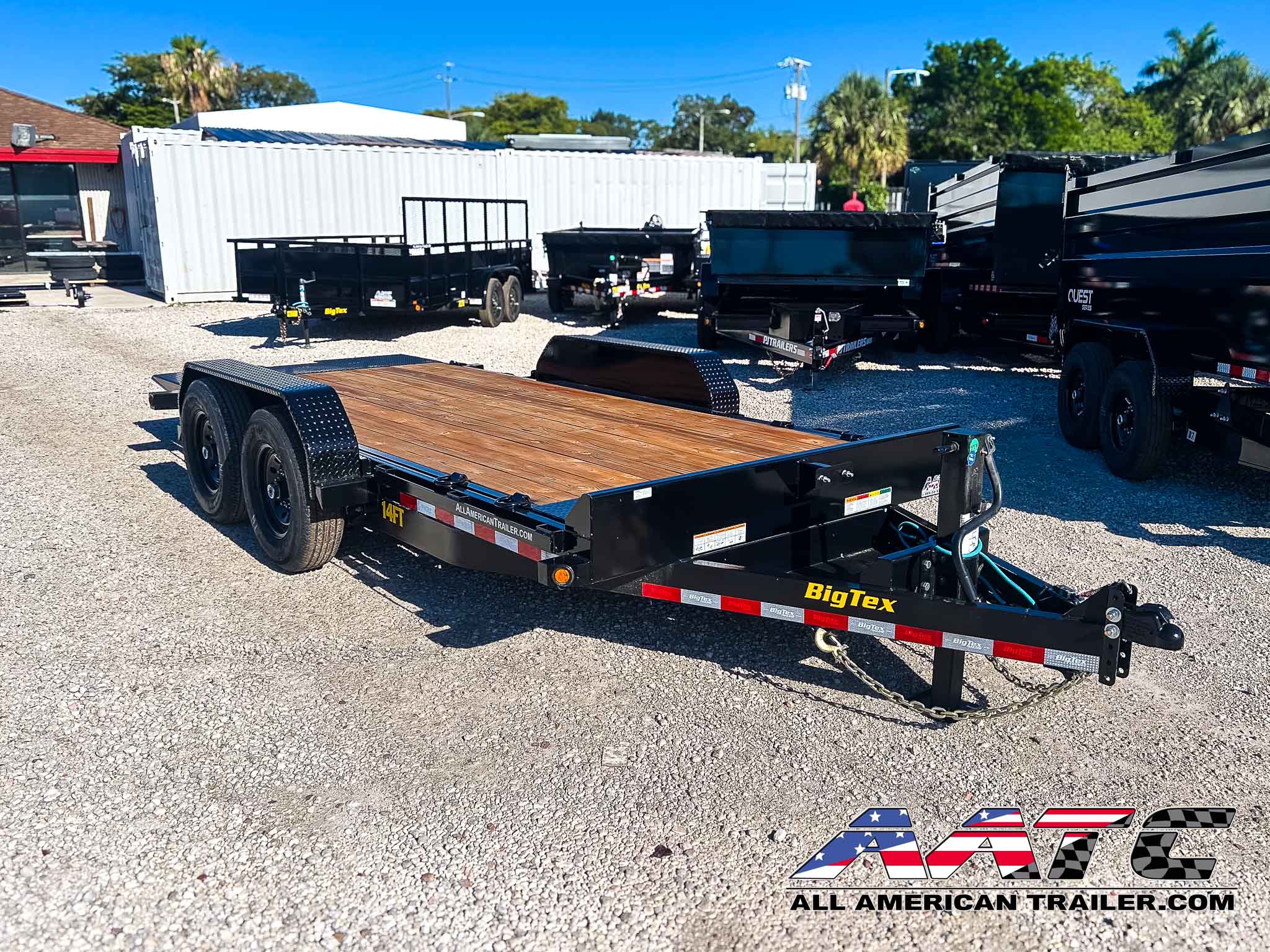

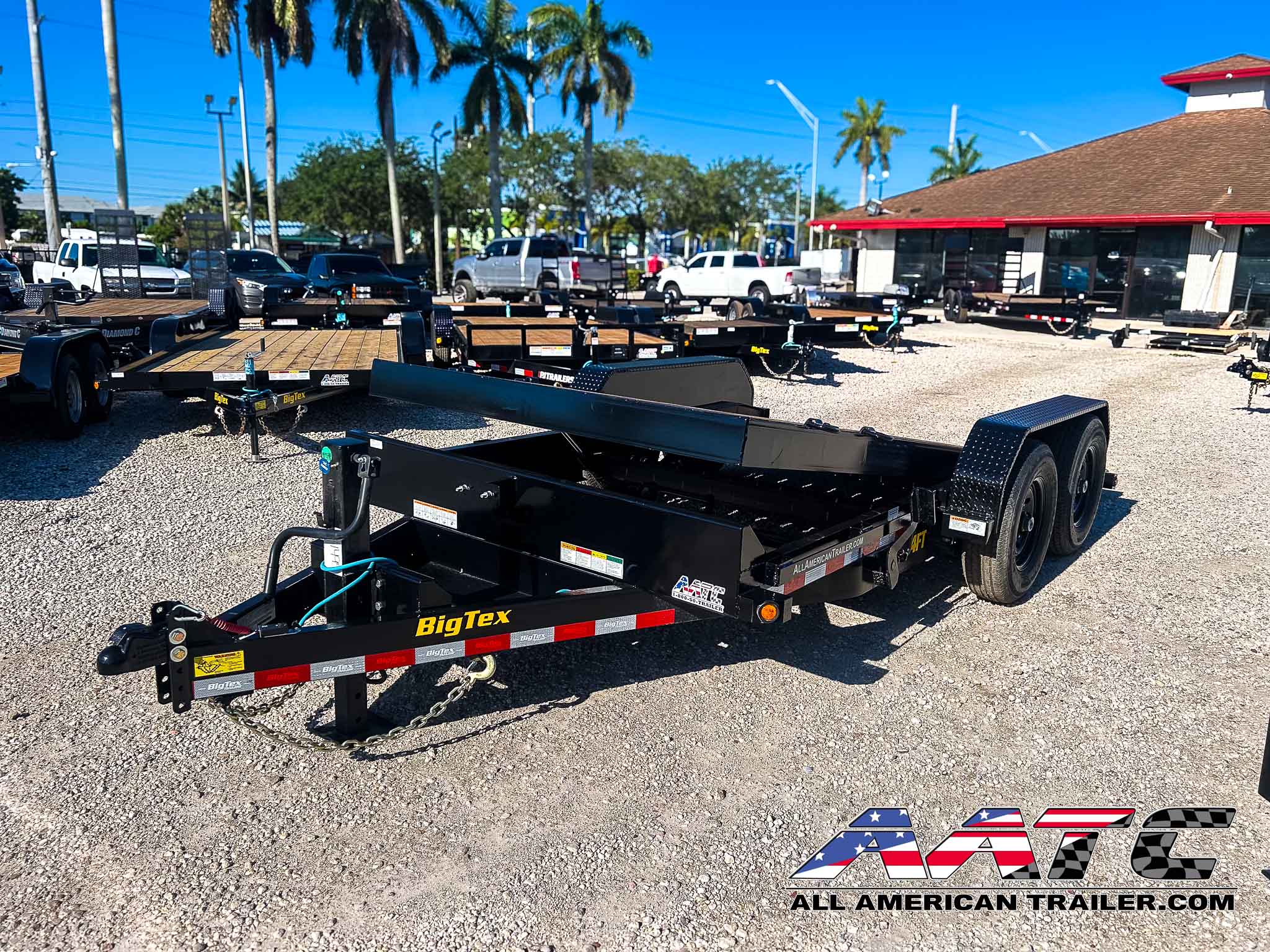

The 14FT is a tilt-deck trailer with a full 16′ of tilt deck. This unit is designed to haul medium-duty, low-profile equipment up to 11,000 lbs ( holds 11,000 lbs on the deck)


  • Rubrail and Tie Down Pockets Along Sides
  • Adjustable 2-5/16″ 14,000# Cast Coupler

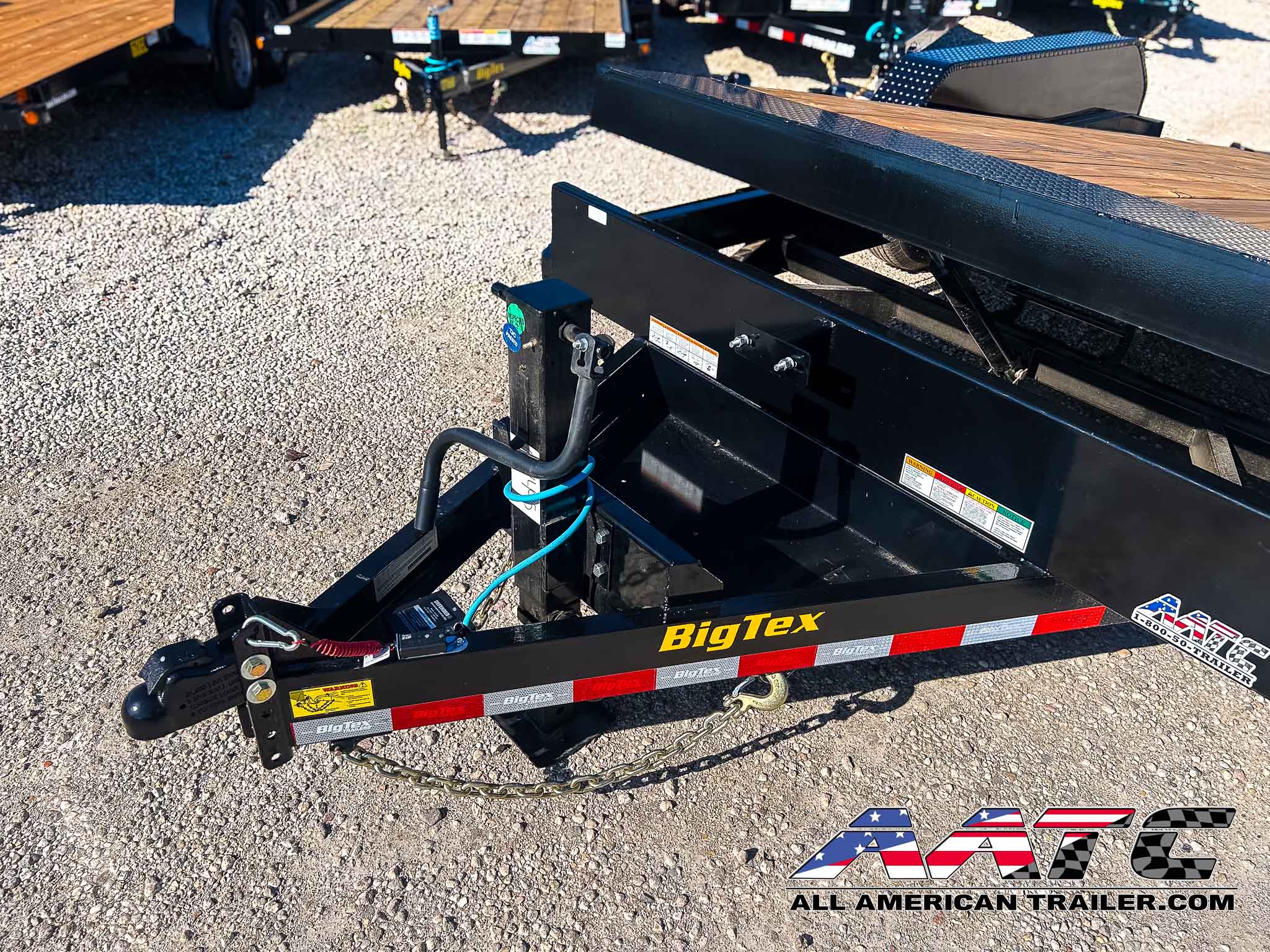

  • Fold Back/Wrap Tongue w/ Raised Coupler
  • 12,000# Drop Leg Jack- Side Wind Against Bed
  • 2″ Tubular Stop Rail
  • EZ Lube Hubs
  • Lippert Brand Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Cambered 4″ Drop Axles
  • Complete Break-A-Way System w/Charger
  • Double Broke Diamond Plate Fenders (Removable)
  • Stationary Front Deck for Added Versatility
  • Unique Two Piece Main Frame
  • 102″ Wide Overall, 83″ Width Between Fenders
  • Tilt Platform is 75″ Wide
  • Hydraulic Dampening System
  • 1/4 Diamond Plate Knife Edge on Rear

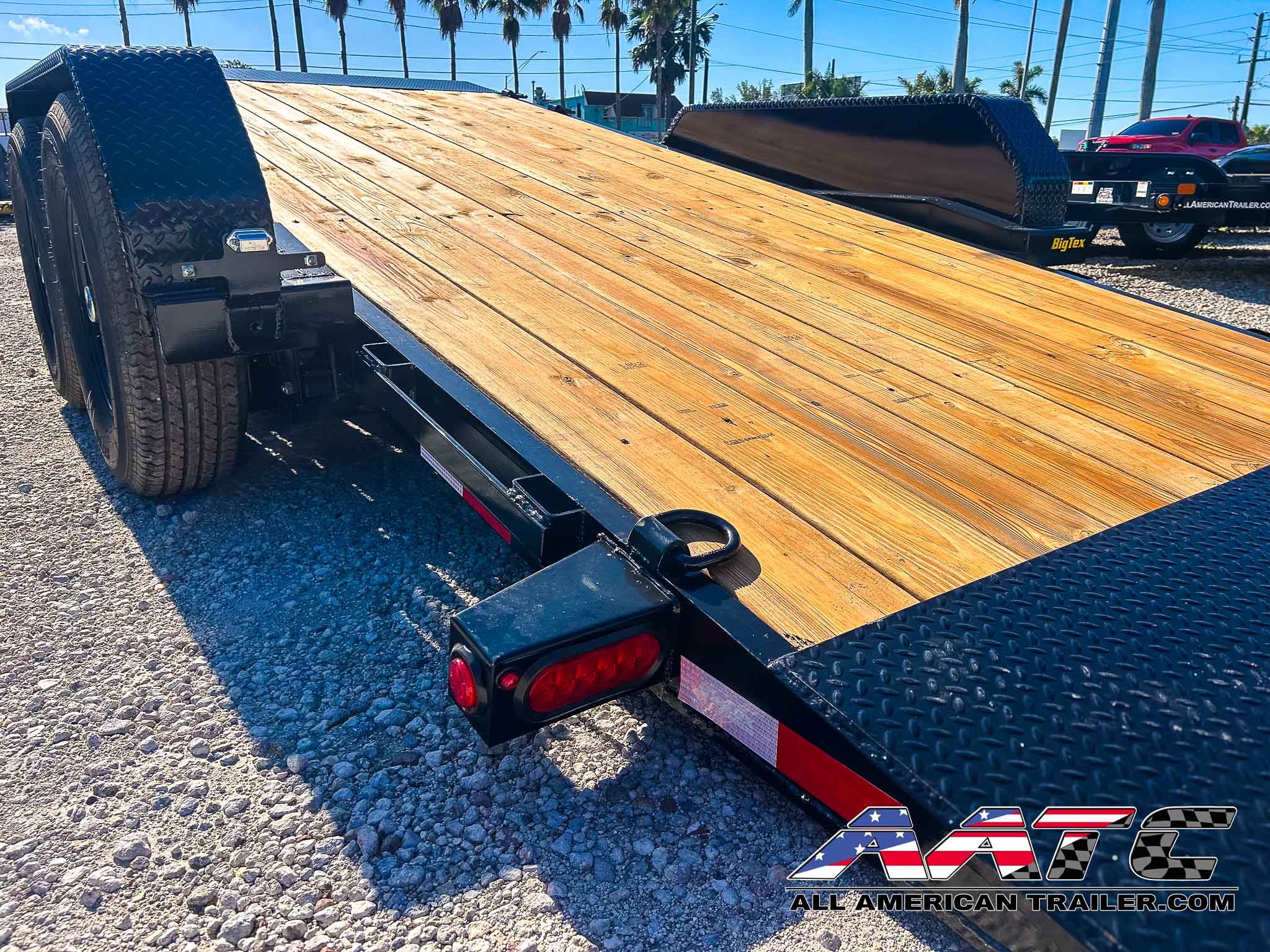

  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed Modular Wiring Harness
  • Spare Tire Mount (Front)

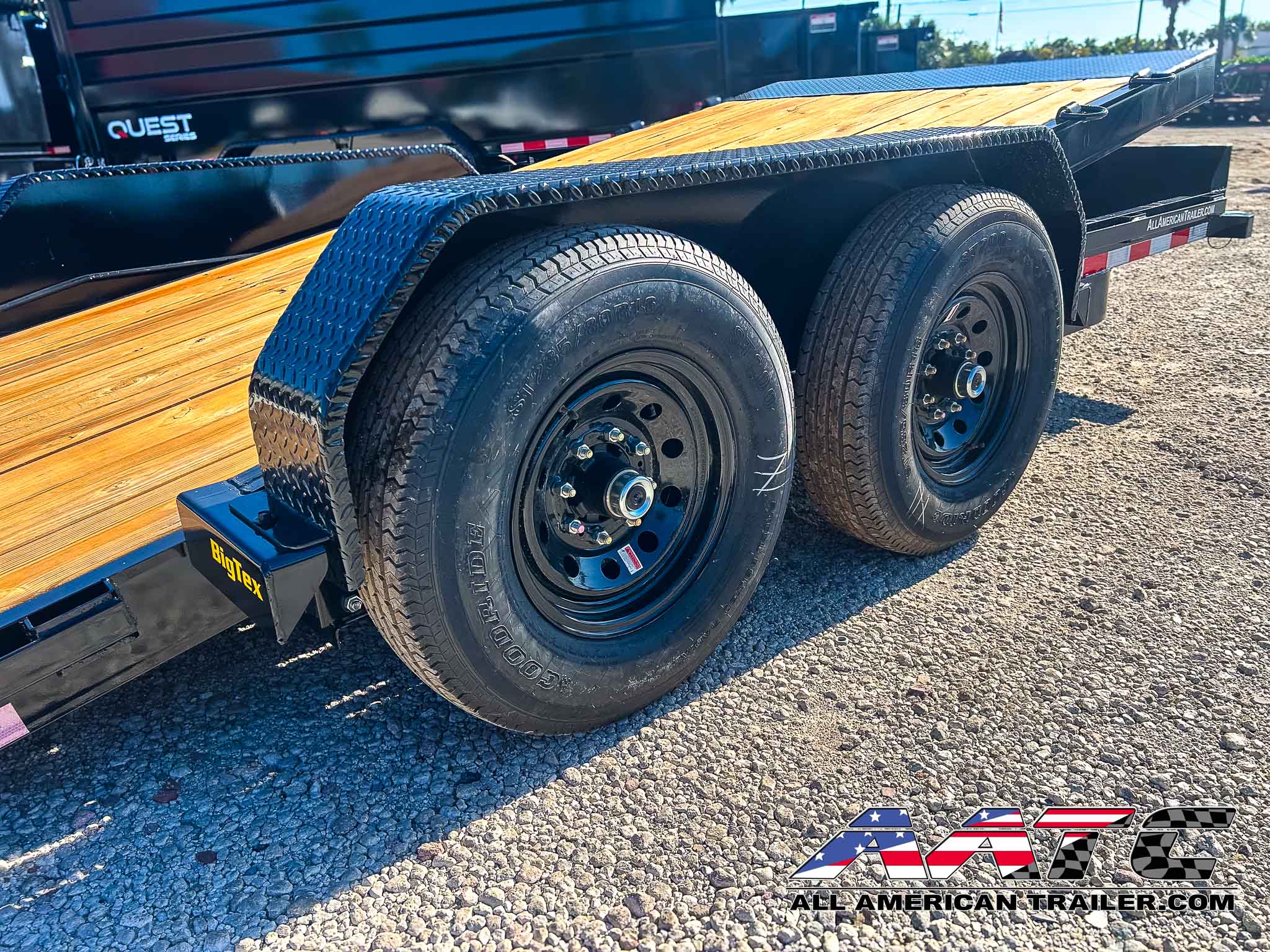

  • Radial Tires
AXLE (2) 7,000#, 4″ Drop EZ Lube w/Electric Brakes
JACK 12,000# Drop Leg Jack-Side Wind
TIRE ST235/80 R-16 Load Range E
FLOOR 2″ Treated Pine or Douglas Fir*
FRAME 6″ Channel
WHEEL 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 6″ Channel Fold Back
COUPLER Adjustable 14K Cast 2-5/16″
FENDERS 9″ x 72″ Double Square Brake Diamond Plate (Removable)
UPRIGHTS NONE
G.V.W.R. 14,000#
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3″ Channel, 3″ Sq. Tube
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle) 7,000#

Additional information

Trailer Brand

Trailer Type

Tilt Trailer

Length

Width

Sidewall Height

GVWR

Load Capacity

Color

Tongue Type

Brake Type
