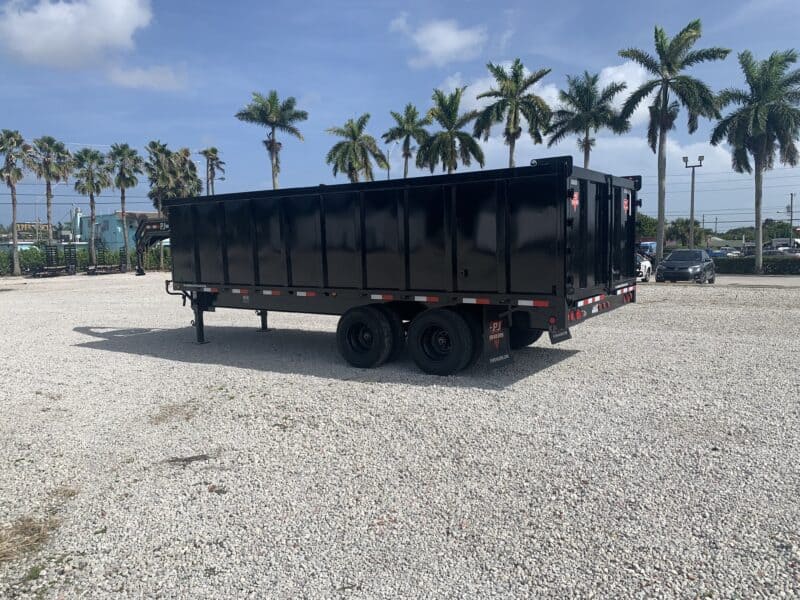

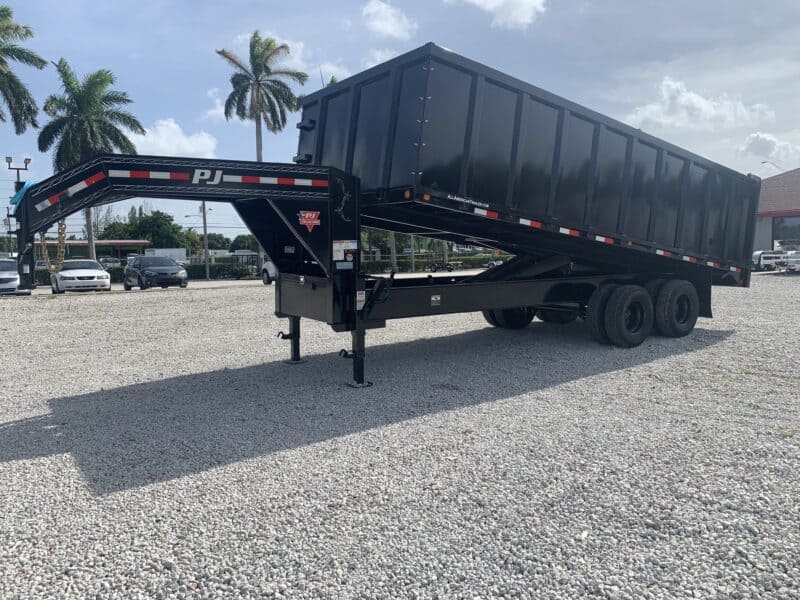

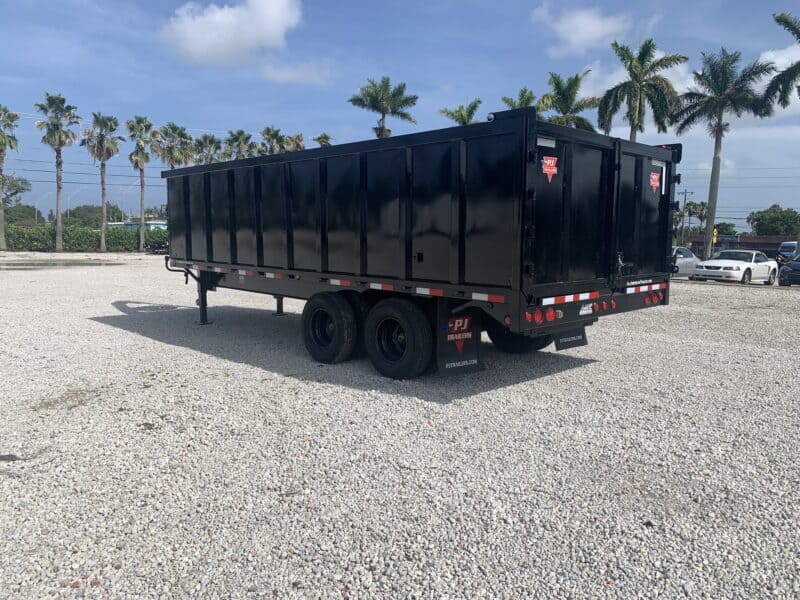

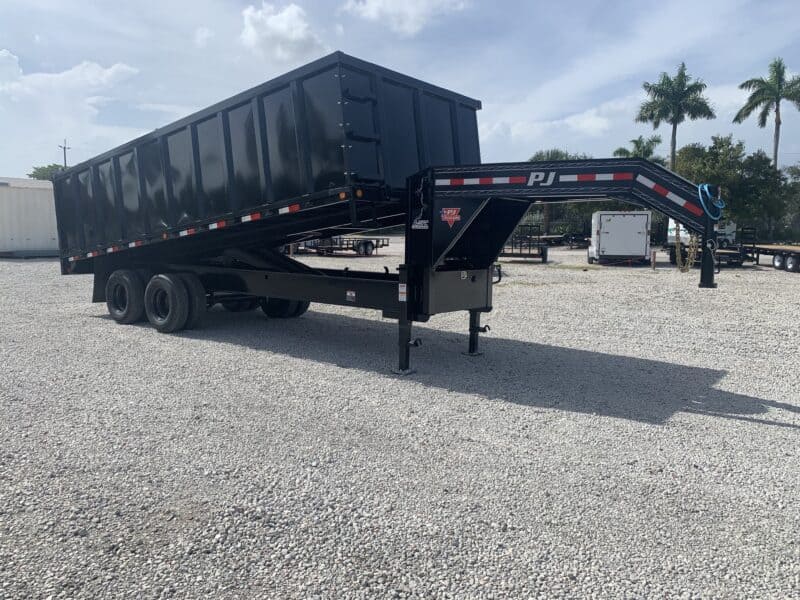

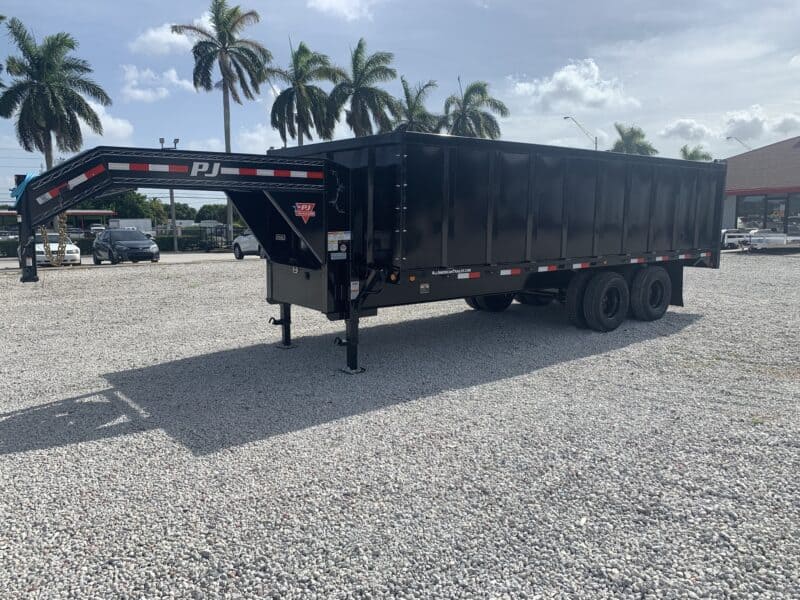

PJ DUMP TRAILER DD-202 TANDEM DUAL 13 TON 8X20 HIGH SIDE

Store ID #DD-202

Price: $19,895.00

23.7 Cubic Yards

Scissor Lift

8′ Slide In Ramps

Double Doors

Powder Coated

Recessed LED Lights

Dexter Axles

Radial Tires

Lockable Pump & Battery Box

Sealed Wiring Harness

10 Gauge Floor

*Product may be shown with optional equipment*

*Price does not include tarp*

Contact Dealer
Print Product Specifications

The PJ DD Tandem Dual Gooseneck Dump Trailer is the heavy-duty dump trailer users dream. With 4-foot sides, this unit is designed to handle any load of trash, sand or gravel, and is even equipped with ramps for loading equipment for easy transport.



  • Lockable Pump & Battery Box Mounted in Front of Bed
  • J-Hooks for Tie Down

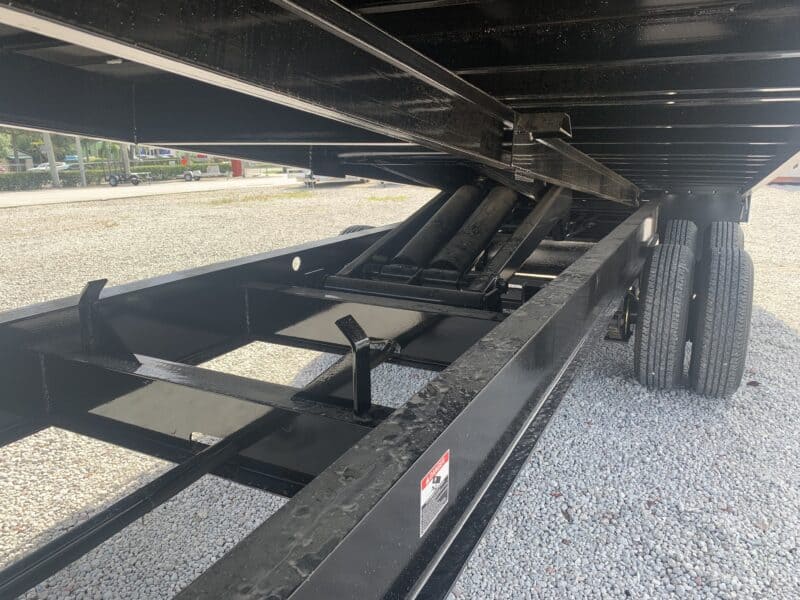

  • Self Contained Electric/Hydrauic Scissor Lift
  • Double Rear Doors
  • 48″ Sides w/ Formed channel Supports
  • 10 Ga. Floor
  • Stake Pockets (Sides)
  • EZ Lube Hubs
  • Dexter Brand Axles
  • 110V Charger
  • (4) 5/8″ D-Rings Inside Bed
  • Forward Self Adjusting Brakes
  • Cambered Axles
  • Spare Tire Mount
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Protected Wiring
  • Complete Break-A-Way System w/Charger
  • Radial Tires
  • Mudflaps
  • Spare Tire & Wheel- Standard Equipped NEW!
AXLE (2) 10,000# Dual Wheel Oil Bath w/Elec. Brakes
JACK Dual 12,000# Side Wind Drop Legs
TIRE ST235/80 R-16 Load Range E Dual
FLOOR 10 Gauge Smooth Steel
FRAME 12″ x 16# I Beam
WHEEL 16″ x 6″ Dual Wheel 8 Bolt
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 12″ I Beam
COUPLER 30k 2-5/16″ Adjustable Crank Type
G.A.W.R. (Ea. Axle) 10,000#
G.V.W.R. 25,000#
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
FENDERS 9″ x 72″ Double Square Broke Diamond Plate
CROSSMEMBERS 8″ Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
SAFETY CHAINS 3/8″ Grd. 70 w/Safety Latch Hook (2 each)

Additional information

Brand

Big Tex

Width

8'

Length

20'

Load Capacity

18,000

Sidewall Height

4'

GVWR

25,000

Tounge Type

Gooseneck
