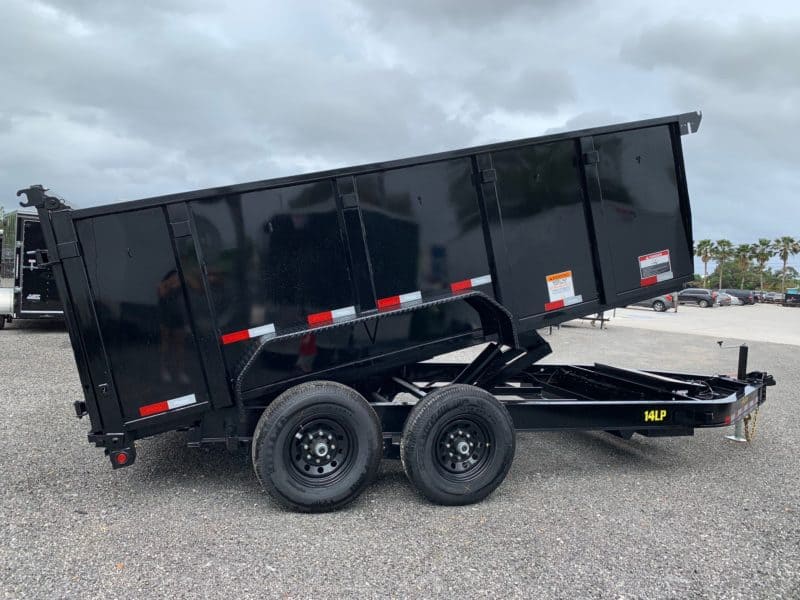

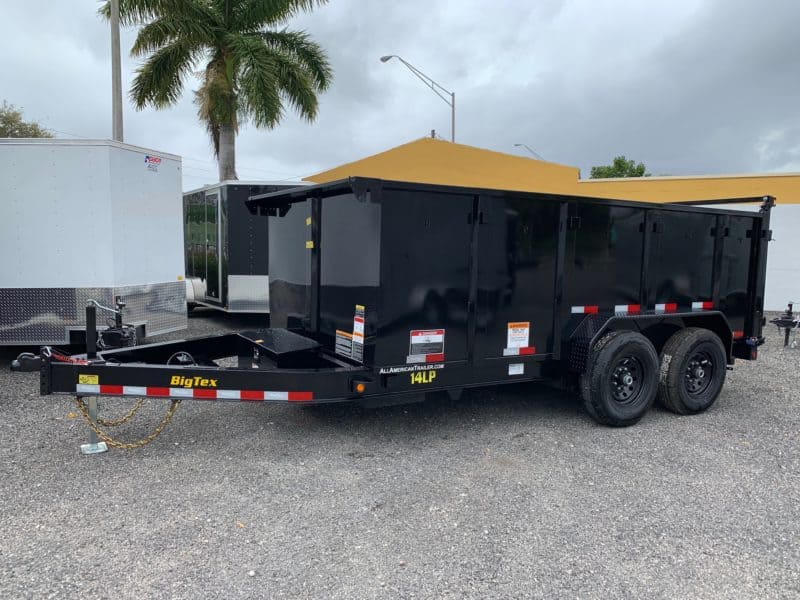

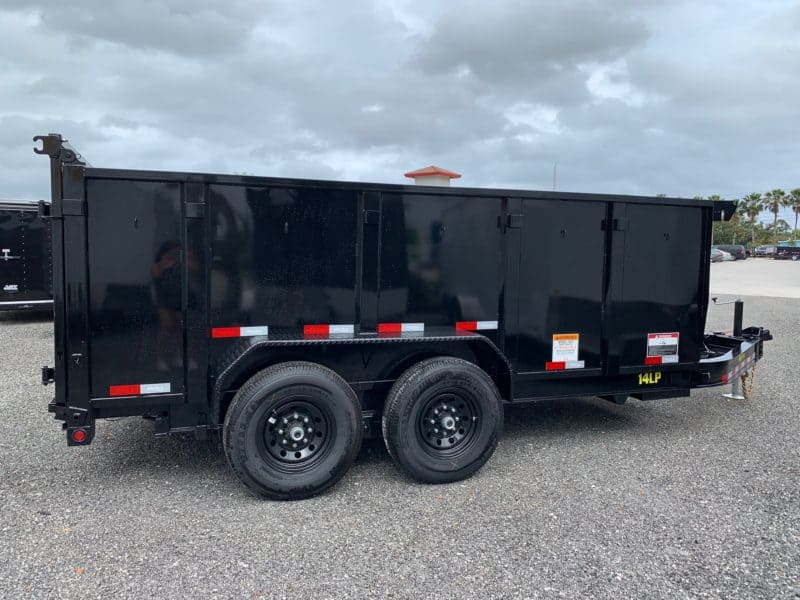

14LP-14-P4 BIG TEX 14′ DUMP TRAILER 4′ SIDE 7 TON 14,000 GVWR 7X14
Store ID #14LP-14-P4
Price: $11,795.00
- 15 CUBIC YARDS
- SCISSOR LIFT

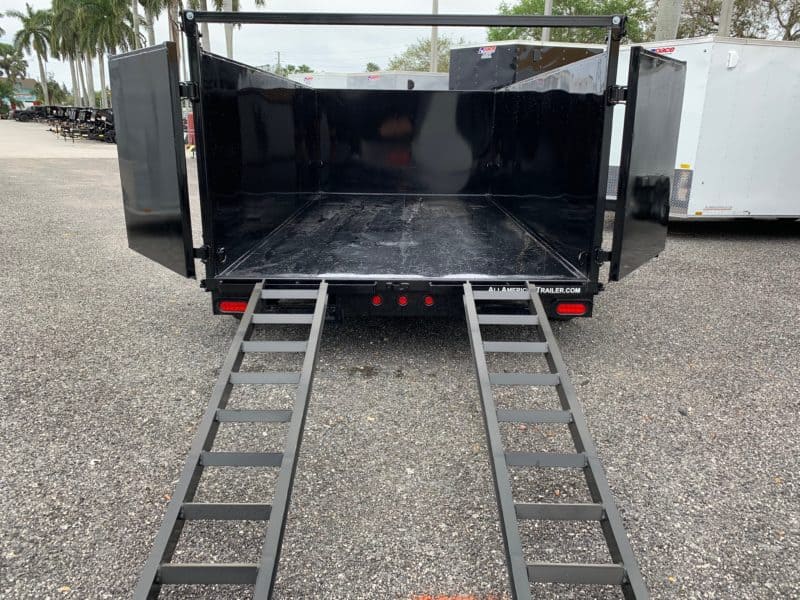

- 7’SLIDE IN RAMPS
- COMBO GATE
- POWDER COATED
- RECESSED LED LIGHTS
- LIPPERT AXLES
- RADIAL TIRES
- LOCKABLE PUMP & BATTERY BOX
- SEALED WIRING HARNESS
- 10 GAUGE FLOOR
**Product may be shown with optional equipment**
Print Product Specifications
The Big Tex 14LP Low Profile Dump Trailer offers ultra-low profile deck height to make loading and unloading easier than ever. Designed with the user in mind, this unit has an 8-inch I-beam frame with integrated tongue, Heavy Duty tongue jack and rear Drop Jacks for stability.
- Adjustable 2-5/16″ Cast Coupler in Channel
- 12,000# Spring-Loaded Drop-Leg Jack
- Lockable Pump & Battery Box Mounted in Front of Bed

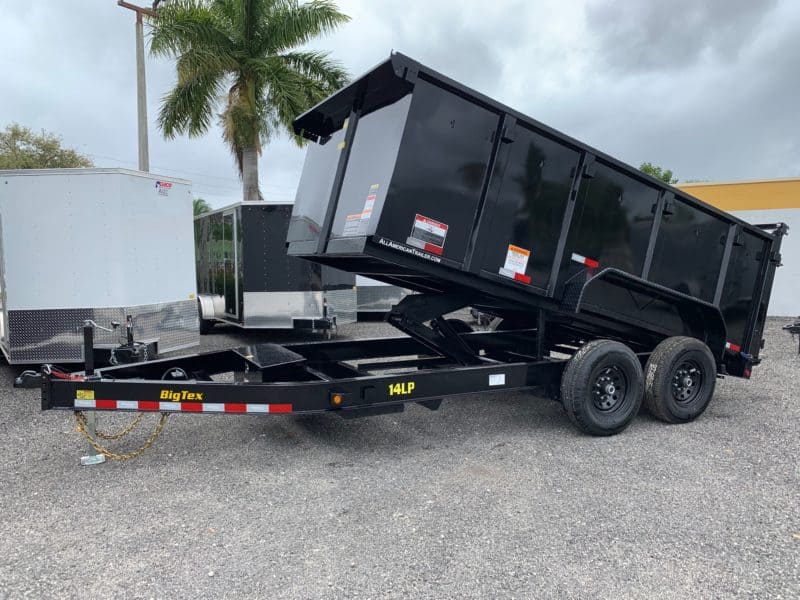

- Self Contained Electric/Hydraulic Scissor Hoist
- 2″ Square Tubing Top Rail
- 24″ Tall, 12-Gauge Steel Sides
- 10-Gauge Steel Floor
- (4) 1/2″ D-Rings Inside Bed to Secure Equipment
- Combo-Style Rear Gate
- Lippert Brand Axles
- Drop Axles for Ultra-Low 24″ Deck Height
- EZ Lube Hubs
- Nev-R-Adjust Electric Brakes on All Hubs
- Diamond Plate Fenders
- 8″ I-Beam Frame w/ Integrated Tongue
- Fully Formed Front Shroud for Tarp
- J-Hooks on Sides & Rear for Tarp Control
- Stake Pockets Along Sides
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Complete Brake Away System
- 110V On-Board Battery Charger (5 Amp)
- 12V Interstate Battery Included
- Radial Tires
- Spring-Loaded Door Hold-Backs
- Spare Tire Mount
- sealed wire harnesses
| AXLE | (2) 7,000# Drop Axles w/ EZ Lube Hubs & Elec. Brakes |
|---|---|
| JACK | 7,000# Drop Leg- Top Wind |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 10 Gauge Smooth Steel |
| FRAME | 8″ I Beam, 10# |
| WHEEL | 16″ x 6″; HD Black Mod 8 Bolt |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 8″ I Beam, 10# |
| COUPLER | 2-5/16″ Adjustable Cast |
| G.A.W.R. (Ea. Axle) | 7,000# |
| G.V.W.R. | 14,000# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Mulit-Leaf Spring w/ Equalizer |
| FENDERS | 9″ x 72″ Double Square Broke Diamond Plate |
| CROSSMEMBERS | 3″ Channel & 4″ x 2″ Rect. Tubing |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
