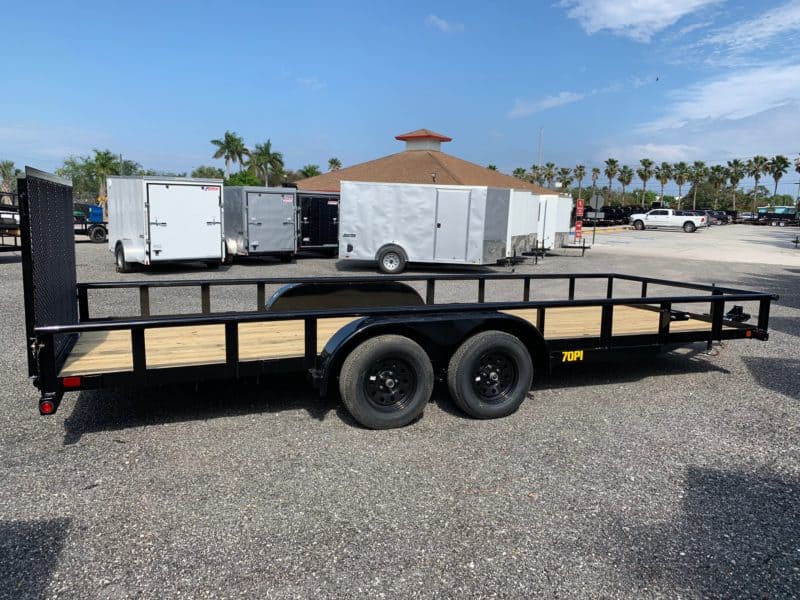

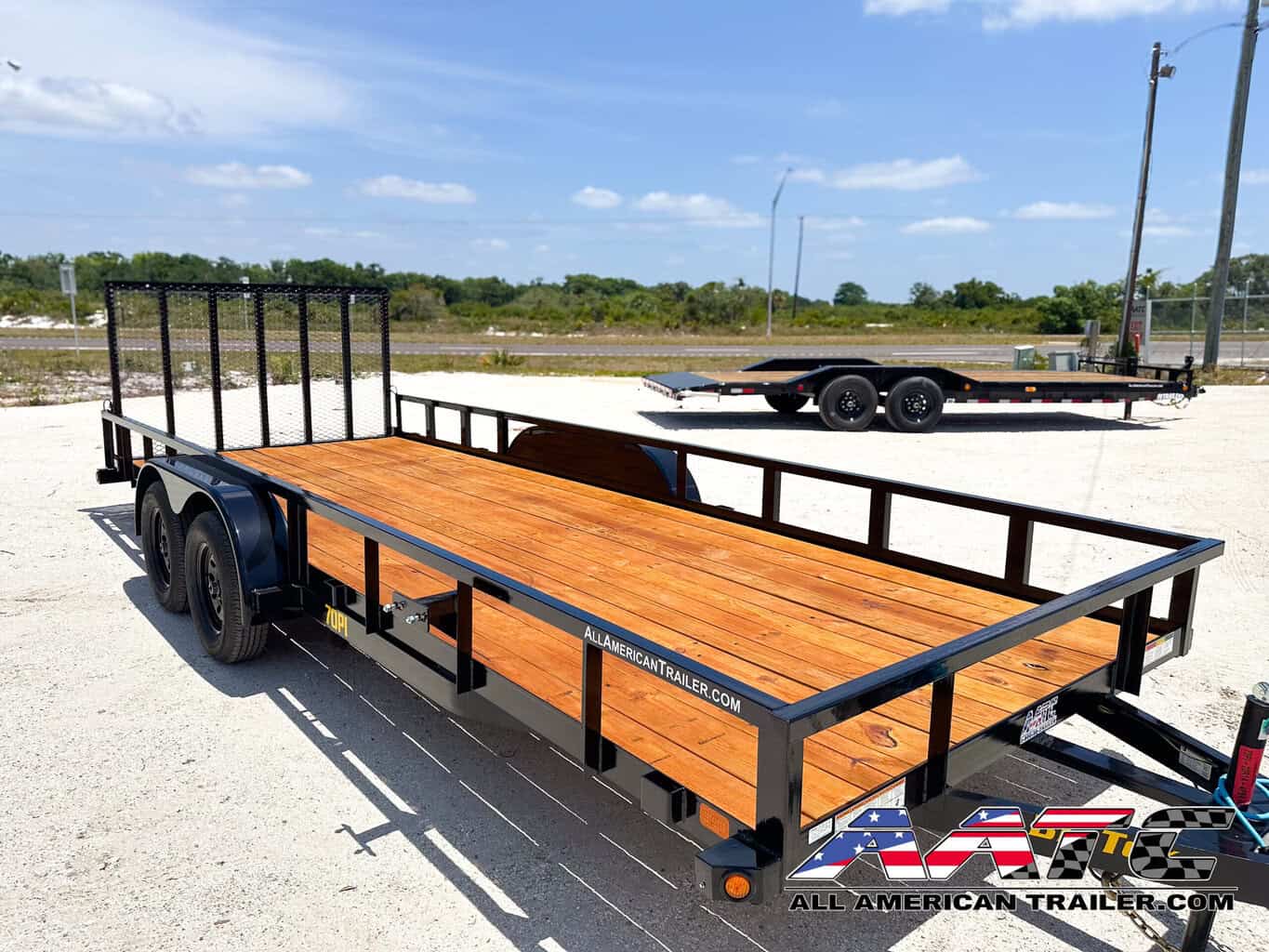

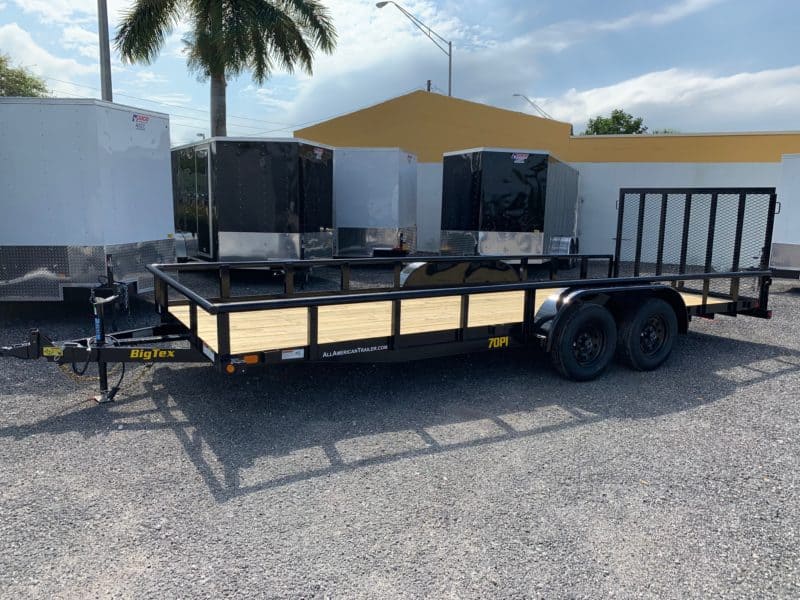

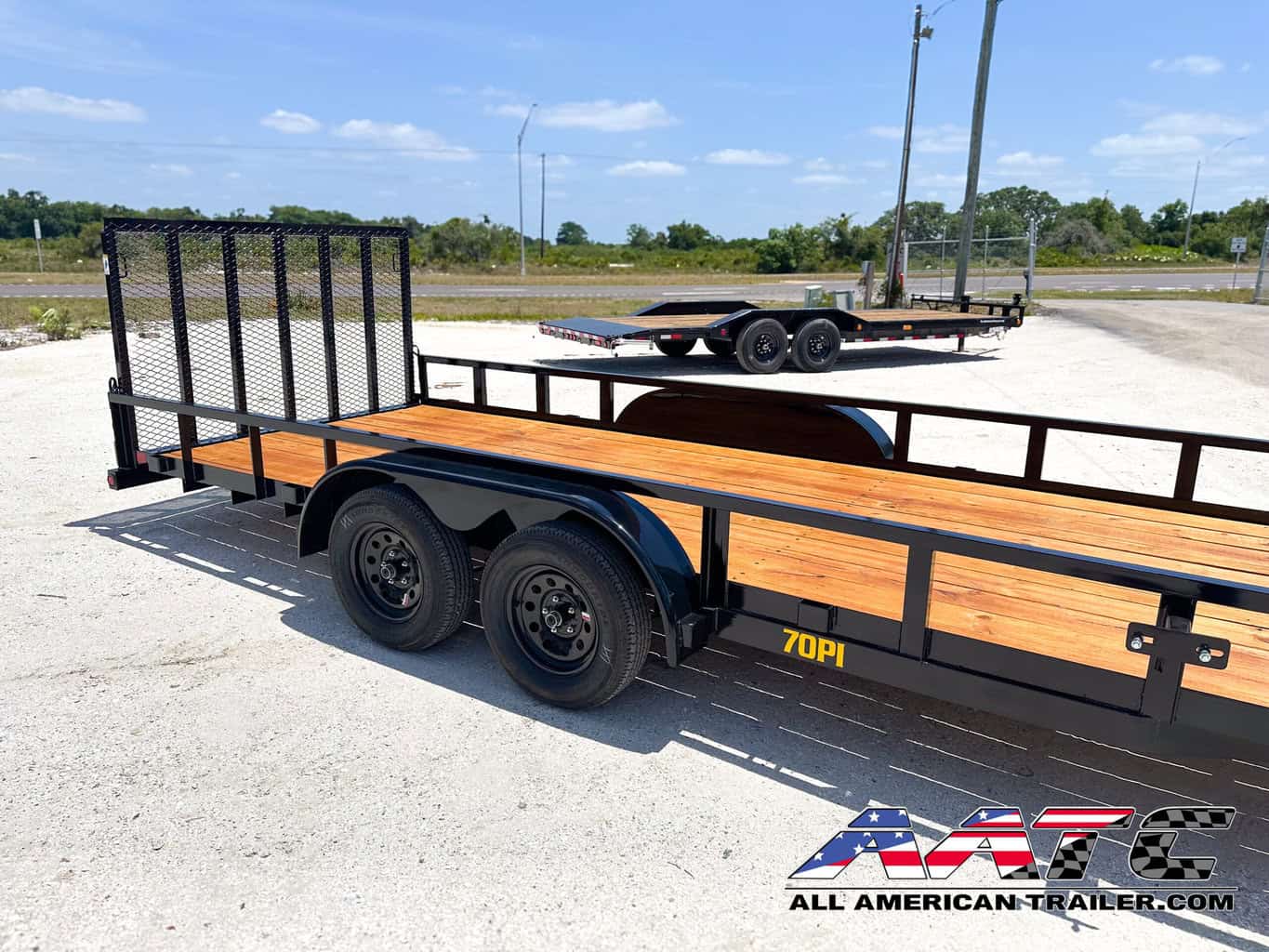

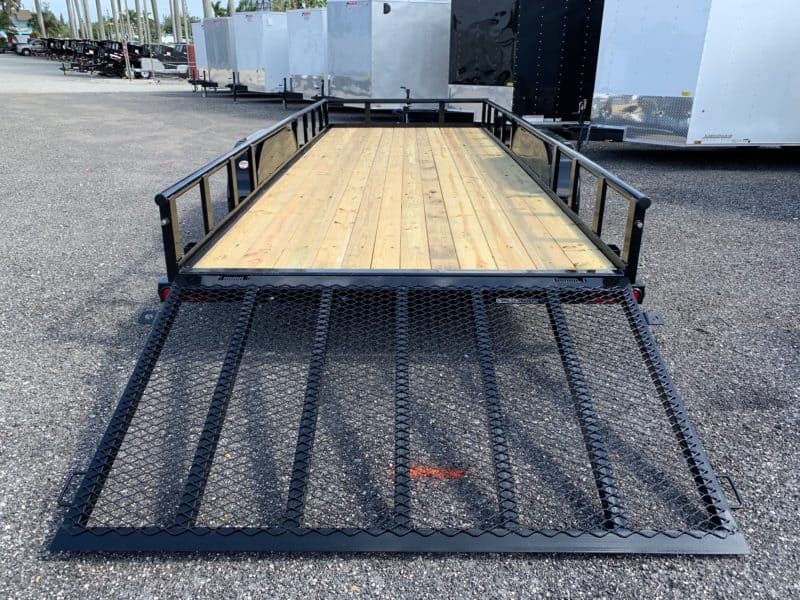

70PI-20 BIG TEX 7X20 TANDEM AXLE UTILITY TRAILER WITH RAMP GATE 2 BRAKE AXLES
Store ID #70PI-20
Price: $4,495.00
- POWDER COATED FRAME
- PIPE TOP RAIL
- DEXTER AXLE
- 15″ WHEELS
- PRESSURE TREATED DECK

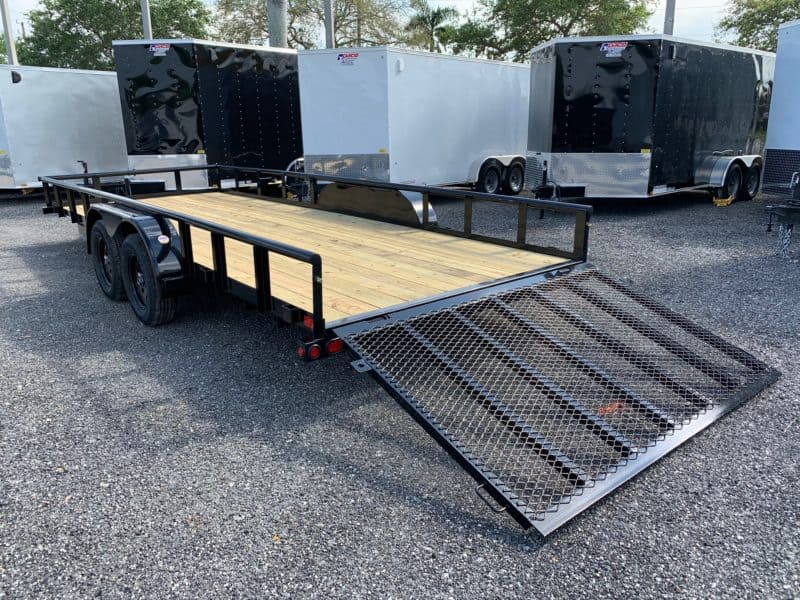

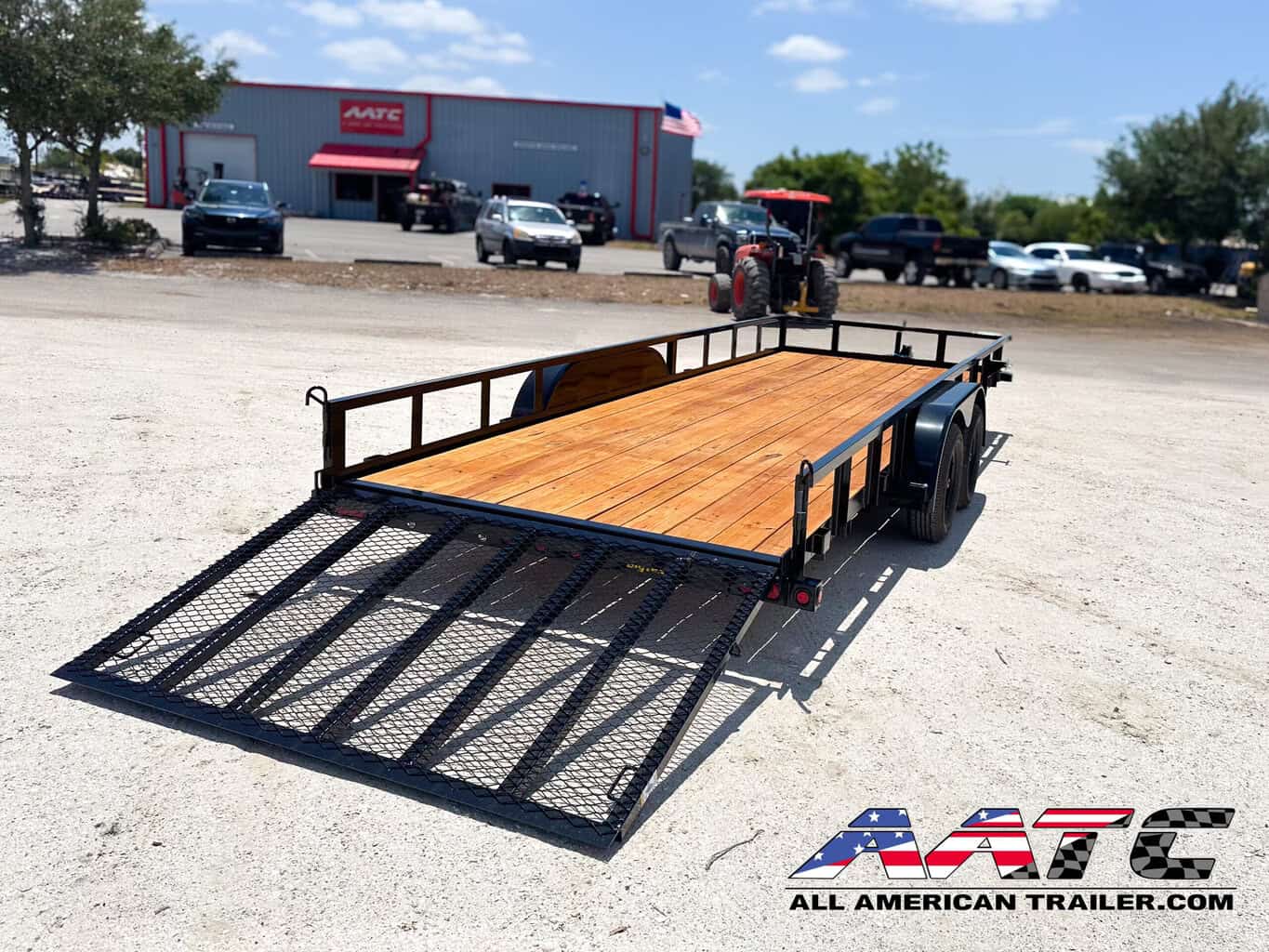

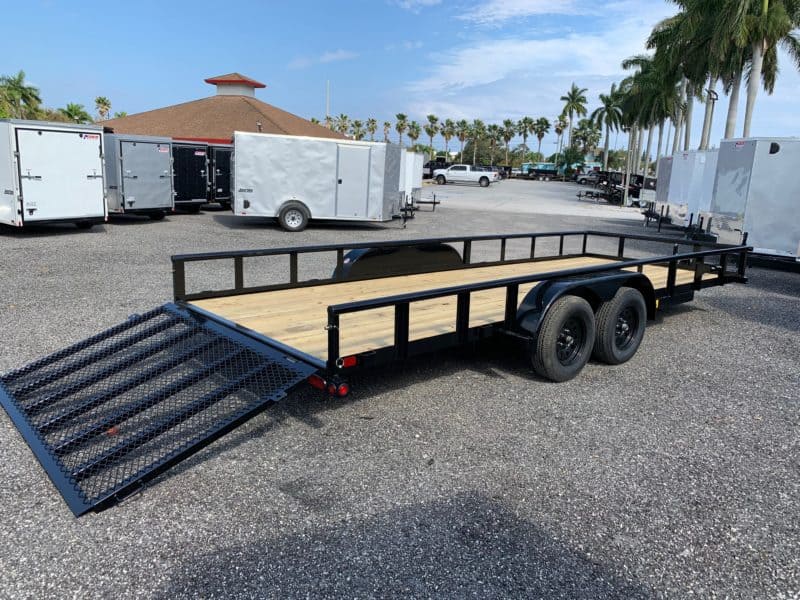

- HEAVY DUTY TUBE RAMP GATE

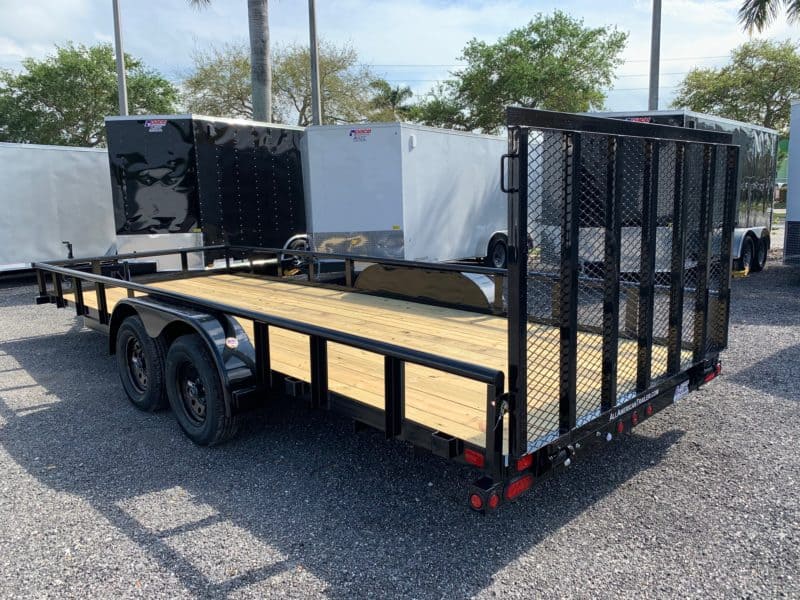

- SPRING ASSISTED GATE
- RECESSED LED LIGHTS
- RADIAL TIRES
- BRAKES ON ALL FOUR WHEELS
Print Product Specifications
The 70PI-X Tandem Axle Pipe Top Utility Trailer comes standard with a generous 83-inch width. Ideal for hauling compact trailers, small equipment and other farm & ranch applications, the 70PI-X is sturdy, versatile and economical.
- (4) Tie Down Pockets on Outside Frame
- Forged, 7,000# Coupler
- Fold Back/Wrap Tongue (14 & Longer)
- Set-Back Jack
- EZ Lube Hubs
- Dexter Brand Axles
- Nev-R-Adjust Electric Brakes
- Cambered Axles
- 2-3/8″ Pipe Top Rail
- Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
| AXLE | (2) 3,500# EZ Lube w/ (1) Elec. Brake |
|---|---|
| JACK | 2,000# Top Wind (Bolted On) |
| TIRE | ST205/75R-15 Load Range C |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 4″ x 3″ x 1/4″ Angle |
| WHEEL | 15″ x 5″; Black Spoke 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 4″ Channel Fold Back/Wrap Tongue |
| COUPLER | Adjustabel, 7,000#, 2″ Forged Coupler |
| FENDERS | 9″ x 72″ Tear Drop w/ Back |
|---|---|
| G.V.W.R. | 7,000# |
| TOP RAIL | 2-3/8″ Pipe Square Back |
| UPRIGHTS | 16″ Tall 3″ x 2″ x 3/16″ Angle |
| ELEC. PLUG | 7-Way RV |
| SUSPENSION | Multi-Leaf Spring w/ Equalizer |
| CROSSMEMBERS | 3″ x 2″ x 3/16″ Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| G.A.W.R. (Ea. Axle) | 3,500# |
