BIG TEX 14′ GOOSENECK DUMP TRAILER 4′ SIDE – 7 TON 15,900 GVWR 7X14 – 14GX-14-P4
Store ID #14GX-14-P4
Price: $13,795.00
- 14.51 Cubic Yards
- Scissor Lift

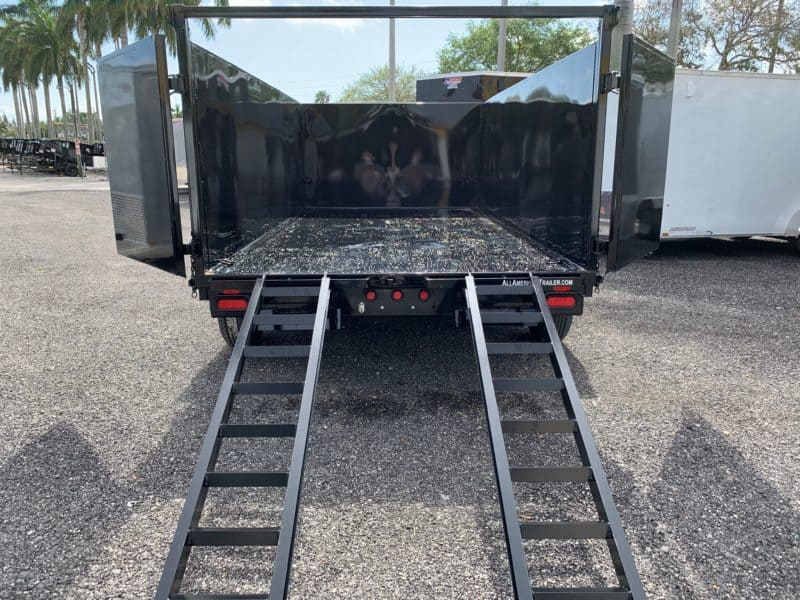

- 7′ Slide In Ramps
- Combo Gate
- Powder Coated Frame
- Recessed LED Lights
- Dexter Axles
- Radial Tires
- Lockable Pump & Battery Box
- Sealed Wiring Harness
- 10 Gauge Floor
*Price does not include tarp*
*Product may be shown with optional equipment* - 7′ Slide In Ramps
Print Product Specifications
The 14GX Tandem Axle Low Profile Extra Wide Dump Trailer from Big Tex Trailers is a great way to gain the features of our popular 14LX in a gooseneck configuration. This unit combines a tube frame and heavy duty cross members in addition to the most complete box unit in the industry.
- Round Adjustable Pin 2-5/16″ Gooseneck Coupler (25K)
- Dual 12,000# Drop Leg (Side Wind)
- Lockable Pump & Battery Box Mounted Between Jacks
- 24″ Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor
- Fully Formed Tarp shroud on Front
- Tarp Rod Included to Secure Tarp on Rear
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Dexter Brand Axles
- Cambered Axles w/EZ Lube Hubs
- Nev-R_Adjust Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- Diamond Plate Fenders
- 2″ square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2″ D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
| AXLE | (2) 7,000# EZ Lube w/Elec. Brakes |
|---|---|
| JACK | Dual 12,000# Drop Leg-Side Wind |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 10 Gauge Smooth Steel |
| FRAME | 8″ x 3″ Rec. Tube |
| WHEEL | 16″ x 6″; HD Black Mod 8 Bolt |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| NECK | 10″ I Beam |
| COUPLER | 2-5/16″ Adjustable Pin (25k) |
| G.A.W.R. (Ea. Axle) | 7,000# |
| G.V.W.R. | 14,000# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Gooseneck |
| SUSPENSION | Mulit-Leaf Slipper Spring w/ Equalizer |
| FENDERS | 9″ x 72″ 14 Ga. Diamond Plate Souble Square Broke |
| CROSSMEMBERS | 8″ x 3″ Tube Main Frame |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 each) |
