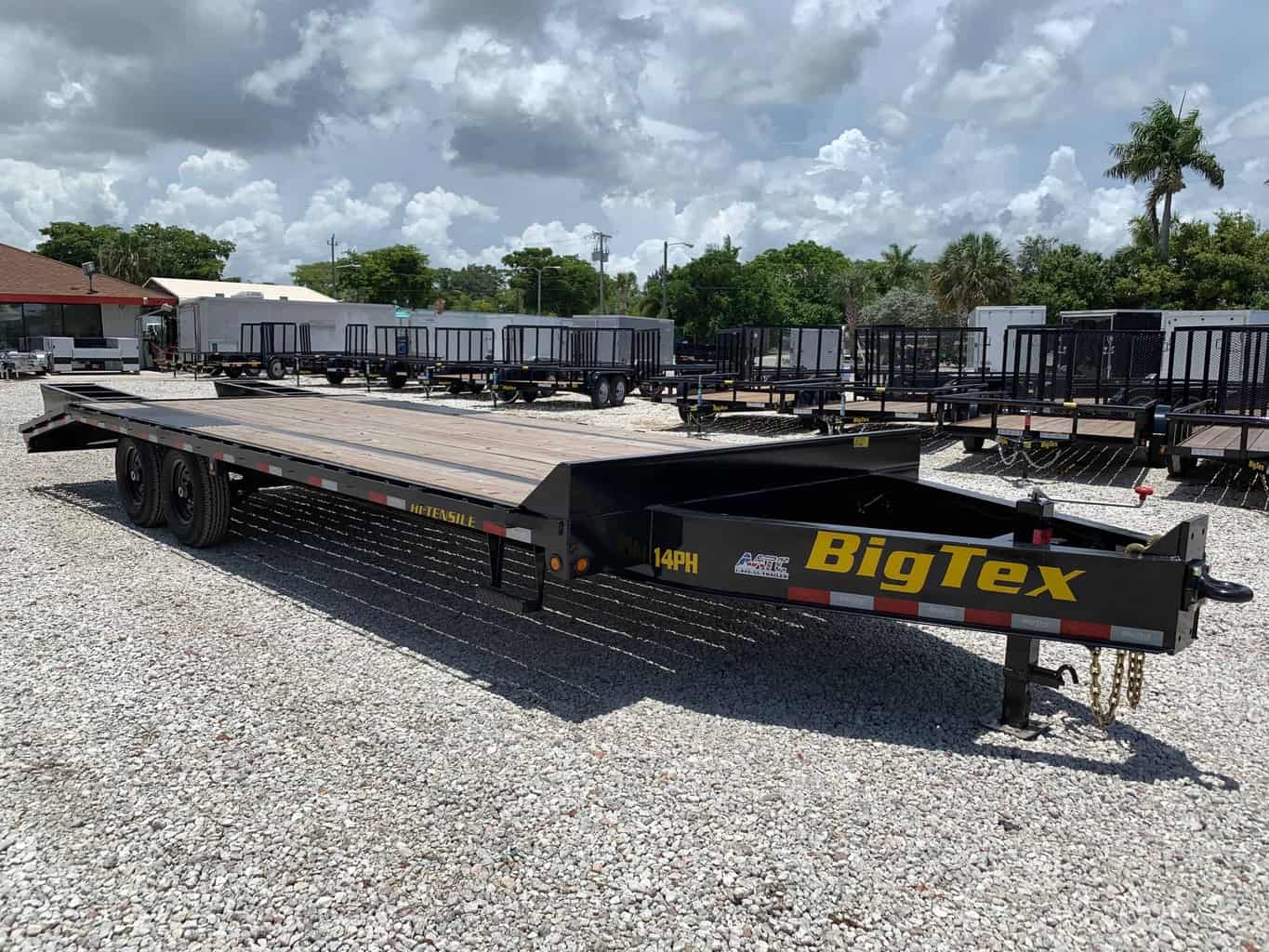

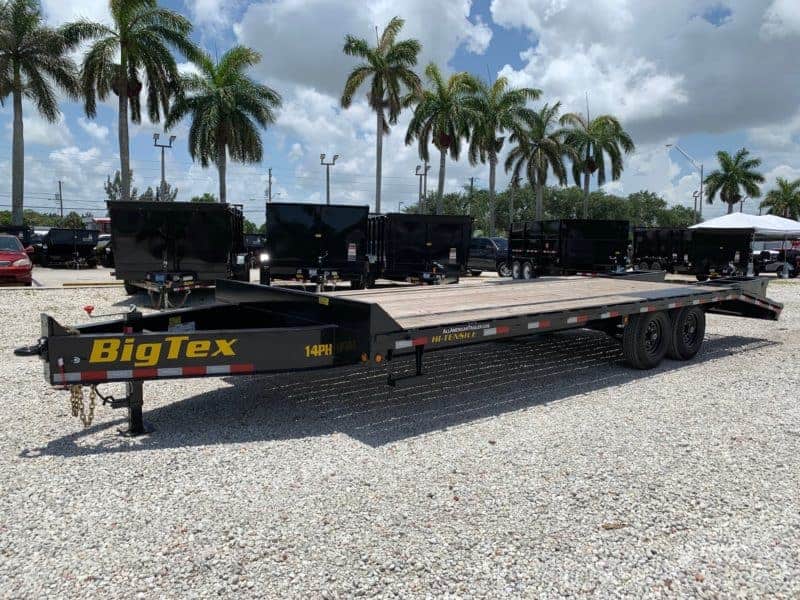

BIG TEX 25′ DECKOVER TRAILER 7 TON 14PH-20+5

Store ID #14PH-20+5

Price: $6,895.00

  • Low Profile Bed, Pierced- Beam Frame

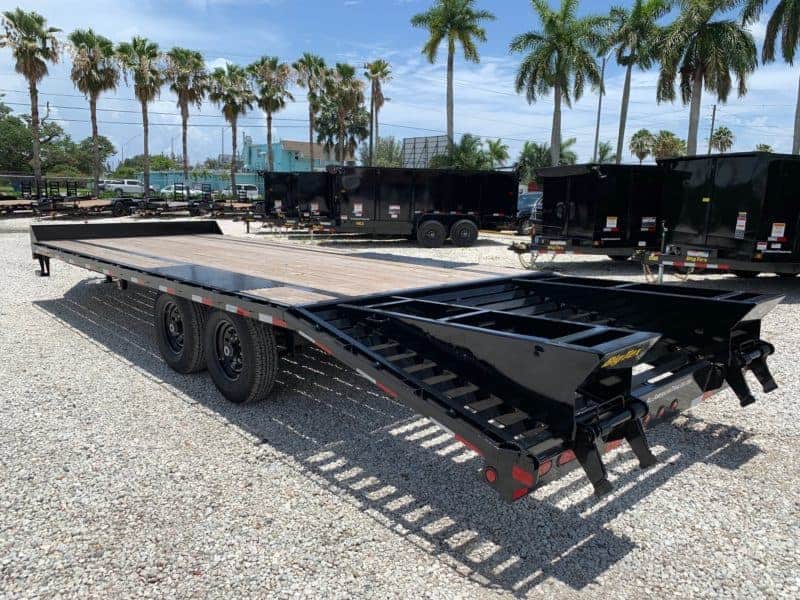

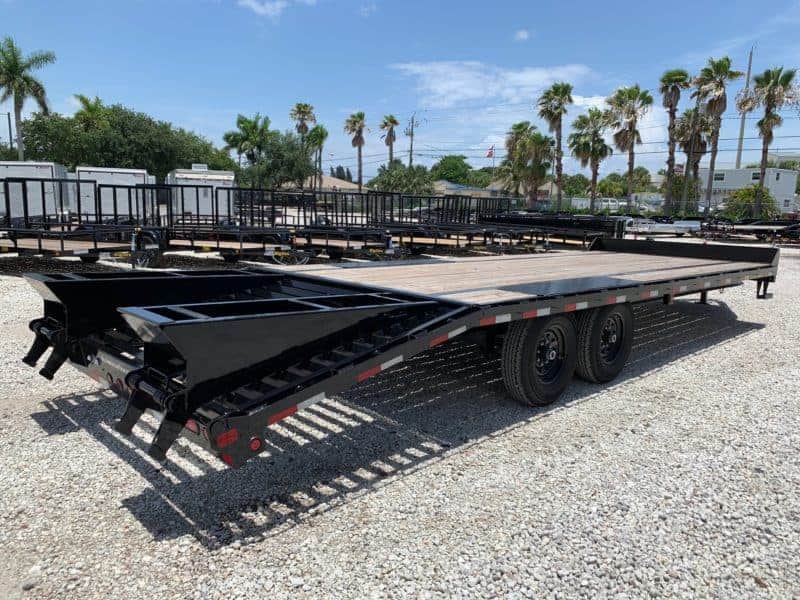

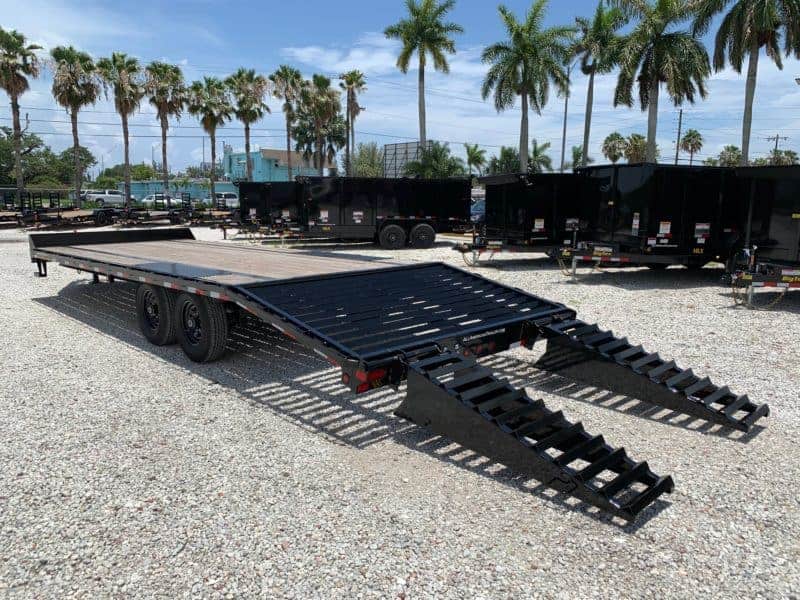

  • 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
  • Tie Down Pockets Along Sides, 24″ On Center
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Dexter Brand Axles
  • Spare Tire & Wheel-Standard Equipped
  • Grommet Mount Sealed Lighting
  • Cambered Axles
Contact Dealer
Print Product Specifications

The 14PH from Big Tex Trailers is a tandem axle pintle hitch hauler. Standard features include two 7K axles, a spare tire and wheel, an LED lighting package and a low-profile bed with a pierced-beam frame. The 14PH delivers exceptional performance at a price that cant be beat.



  • 3″ ID Pintle Ring
  • 12,000# Drop Leg Jack- Top Wind (Bolted On)
  • 102″ Overall Width
  • Low Profile Bed, Pierced- Beam Frame
  • (2) Side Bed Steps
  • 3/8″ Heavy Duty Rub Rail
  • Tie Down Pockets Along Sides, 24″ On Center
  • 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
  • EZ Lube Hubs
  • Dexter Brand Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Cambered Axles
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • Spare Tire Mount (Top of Neck)
  • 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
  • Complete Break-A-Way System w/Charger
  • Radial Tires
  • Spare Tire & Wheel-Standard Equipped



AXLE (2) 7,000# EZ Lube w/Electric Brakes
JACK 12,000# Drop Leg Jack-Bolted On
TIRE ST235/80 R-16 Load Range E
FLOOR 2″ Treated Pine or Douglas Fir*
FRAME 8″ I Beam
WHEEL 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE Integral w/ Frame
COUPLER Adjustable Forged 2-5/16″
FENDERS Deckover
G.V.W.R. 14,000#
UPRIGHTS 5″ Channel w/Stake Pockets & Rubrail on Both Sides, Front & Rear
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3″ Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 1/4″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 7,000#

Additional information

Brand

Big Tex

Width

8.5'

Length

25'

Load Capacity

9,500

GVWR

14,000

Tounge Type

Pintel/ military ring
