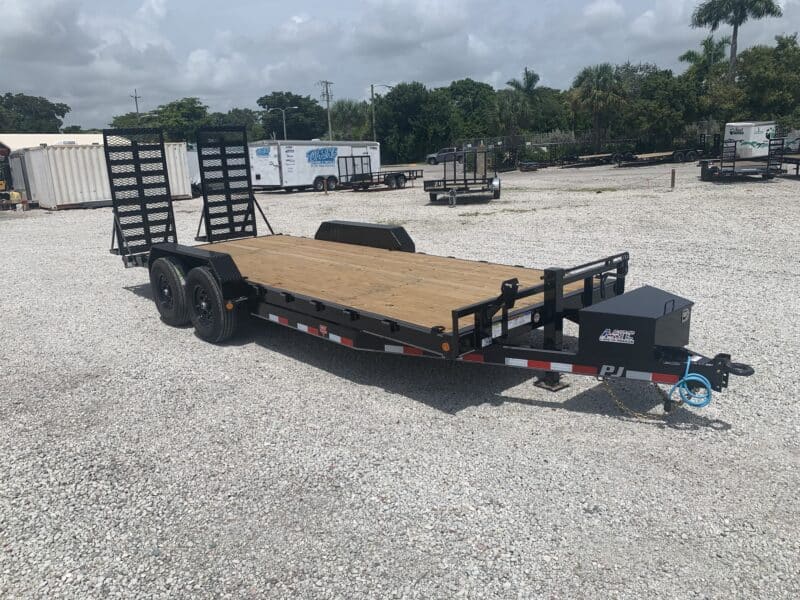

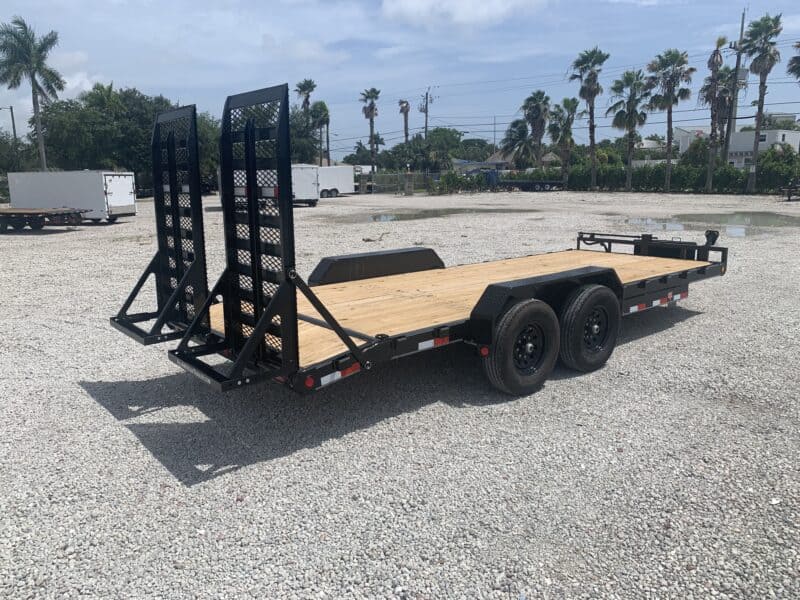

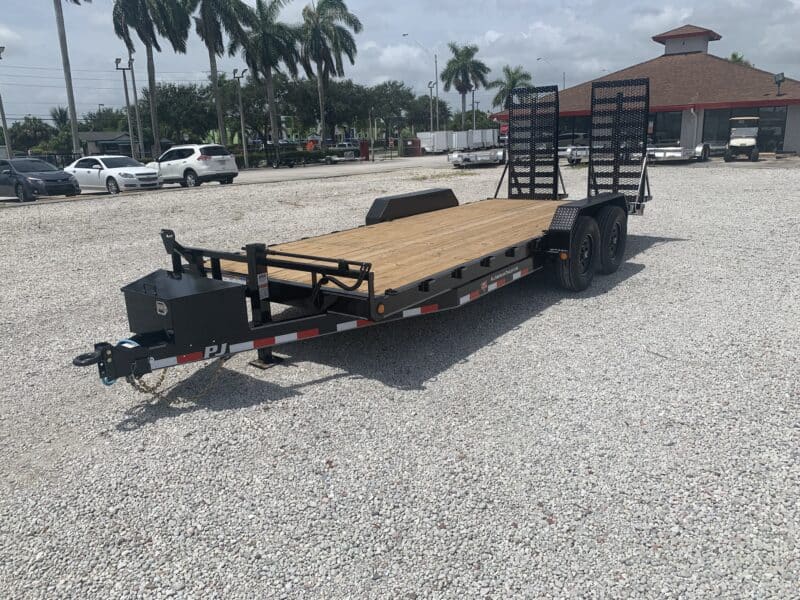

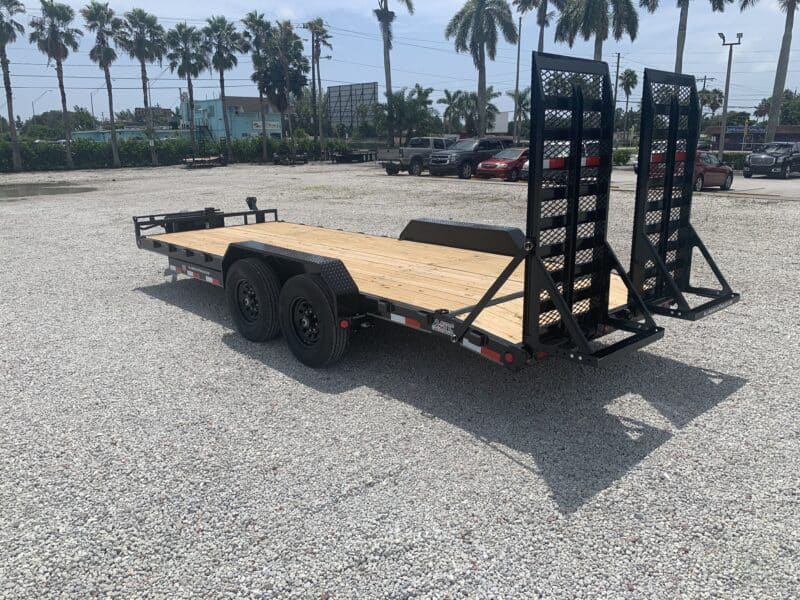

PJ 7×20 EQUIPMENT TRAILER 8 TON W/ EXTRA WIDE RAMPS 20′ CC
Store ID #CC-202-5SWR
Price: $8,895.00
- POWDER COATED
- HD WIDE RAMPS
- TOOL BOX ON TONGUE
- TIE DOWN POCKETS DOWN SIDES
- DEXTER BRAND AXLES
- 14 PLY TIRE UPGRADE
- RADIAL TIRES
- 16,000 GVWR
- 12,000# DROP LEG JACK
Print Product Specifications
The PJ CC Super Duty Tandem Axle Equipment Trailer from Big Tex has an 83-inch width, multiple length options and a flush floor, providing versatility and exceptional value. 7,000-pound axles give the CC added weight capacity for unmatched durability and strength.
- Tie Down Pockets Along Sides
- 36″ Cleated Dovetail
- 4 Tall Channel Knee Ramps
- Adjustable 2-5/16″ 14,000# Cast Coupler
- Fold Back/Wrap Tongue (14 & Longer)
- 12,000# Drop Leg Jack- Side Wind Against Bed
- 2″ Tubular Stop Rail
- EZ Lube Hubs
- Dexter Brand Axles
- Nev-R-Adjust Electric Brakes on All Hubs
- Cambered Axles
- Double Broke Diamond Plate Fenders (Removable)
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Spare Tire Mount (Front)
- Complete Break-A-Way System w/Charger
- Radial Tires
| AXLE | (2) 7,000# EZ Lube w/Electric Brakes |
|---|---|
| JACK | 12,000# Drop Leg Jack-Side Wind |

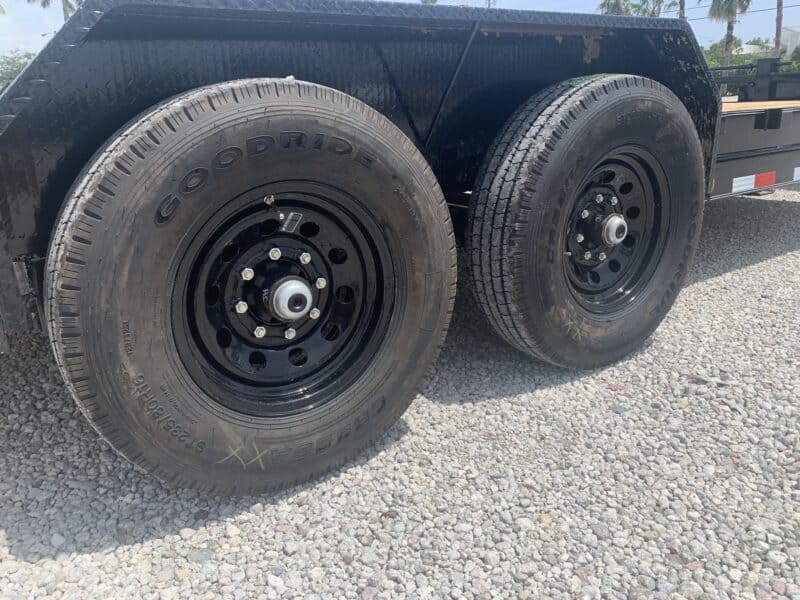

| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 6″ Channel |
| WHEEL | 16″ x 6″; Heavy Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LiGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 6″ Channel Fold Back/Wrap, 10″ I-Beam on GN |
| COUPLER | Adjustable 2-5/16″ 14,000# Cast |
| FENDERS | 9″ x 72″ Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 14,000# |
|---|---|
| UPRIGHTS | NONE |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| CROSSMEMBERS | 3″ Channel on 16″ Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 ea) |
| FRONT STOP RAIL | Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 7,000# |
