16ET-17+3MR BIG TEX 20′ EQUIPMENT TRAILER 17,500 GVWR 7 TON MEGA RAMPS
Store ID #16ET-17+3MR
Price: $11,295.00
- 17,500lb GVWR
- FULL WIDTH MEGA RAMPS
- 17.5 LOAD RANGE H TIRES
- 8″ CHANNEL FRAME
- 36″ CLEATED DOVETAIL
- DEXTER D8ON 8,000# AXLES
- 12,000LB DROP LEG JACK
- SEALED MODULAR WIRING HARNESS
- PREMIUM HD BLACK MOD WHEELS
Print Product Specifications

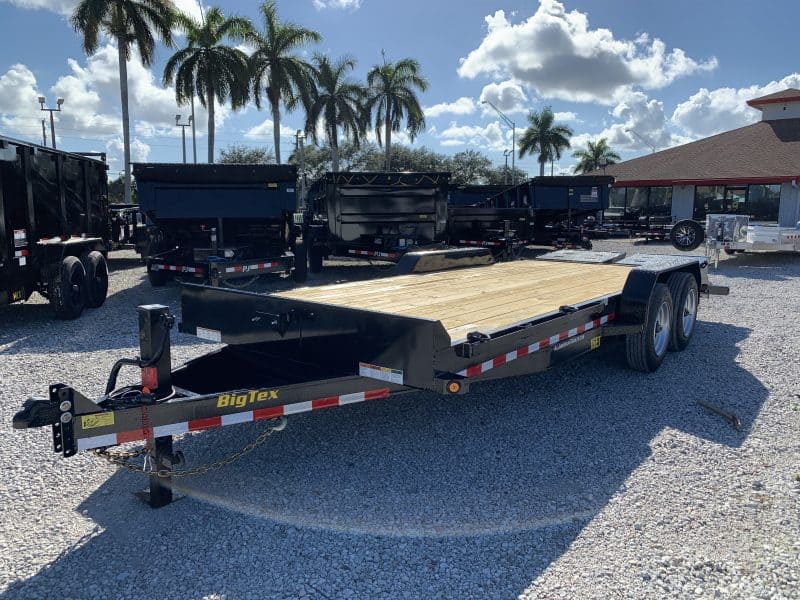

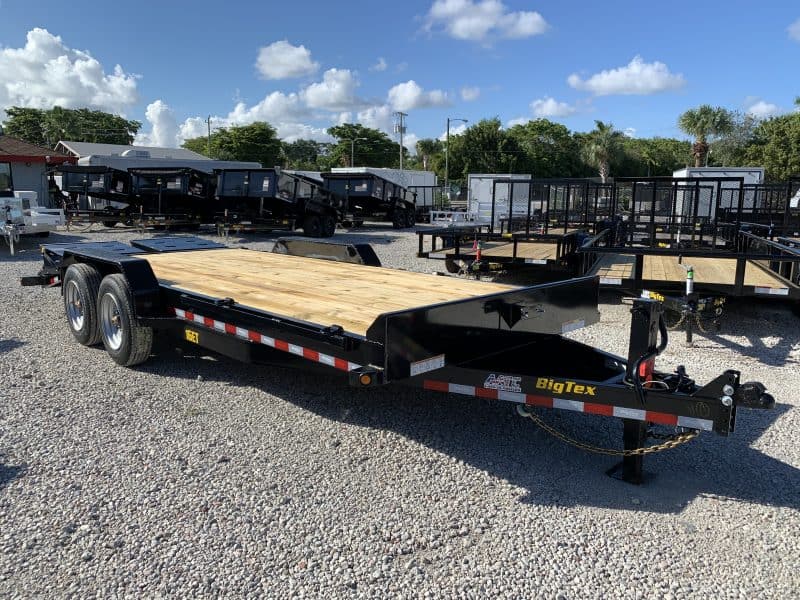

The 16ET Super Duty Tandem Axle Equipment Trailer from Big Tex has a generous 83-inch width, multiple length options and a flush floor, providing versatility and exceptional value all in one. Haul equipment and small tractors confidently with the 16ET.
- Adjustable 2-5/16″ Demco Coupler in Channel
- Fold Back/Wrap Tongue
- 12,000# Drop Leg Jack- Side Wind *Dual Jacks & Front Toolbox on Gooseneck Model
- Fabricated Front Stop Rail
- Full 83″ Wide Bed Between Fenders
- Double Broke Diamond Plate Fenders (Removable)
- Dexter D8ON 8,000# Axles
- Cambered, Oil Bath Axles
- Nev-R-Adjust Electric Brakes on All Hubs
- 36″ Cleated Dovetail (+3 Models)

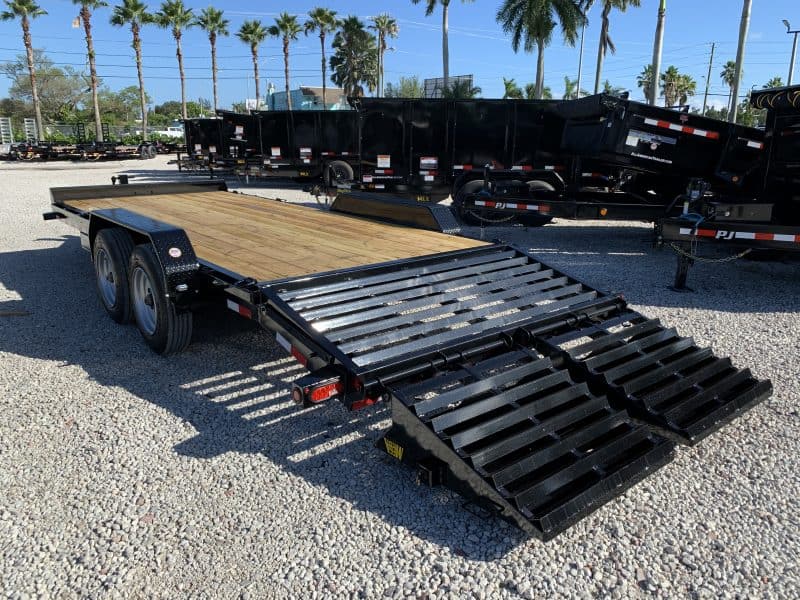

- Mega Ramps
- Rubrail and Tie Down Pockets Along Sides
- Storage Tray in Tongue Area
- Grommet Mount, Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- 17.5″ Radial Tires
- Premium HD Black Mod Wheels w/ 5/8″ Wheel Studs
- Spare Tire Mount (Front)
| AXLE | (2) 8,000# Oil Bath w/Electric Brakes |
|---|---|
| JACK | 12,000# Drop Leg Jack- Side Wind |
| TIRE | ST215/75 R-17.5 Load Range H |
| FLOOR | 2″ Treated Pine or Douglas Fir* |
| FRAME | 8″ Channel |
| WHEEL | 17.5″ x 6.75″; Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LiGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 6″ Channel Fold Back/Wrap Tongue, 10″ I-Beam Neck on GN |
| COUPLER | Adjustable 2-5/16″ 18,000# Demco |
| FENDERS | 9″ x 72″ Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 17,500# |
|---|---|
| UPRIGHTS | NONE |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| CROSSMEMBERS | 3″ Channel on 16″ Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8″ Grd. 70 w/Safety Latch Hook (2 ea) |
| FRONT STOP RAIL | 3/16″ Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 8,000# |
