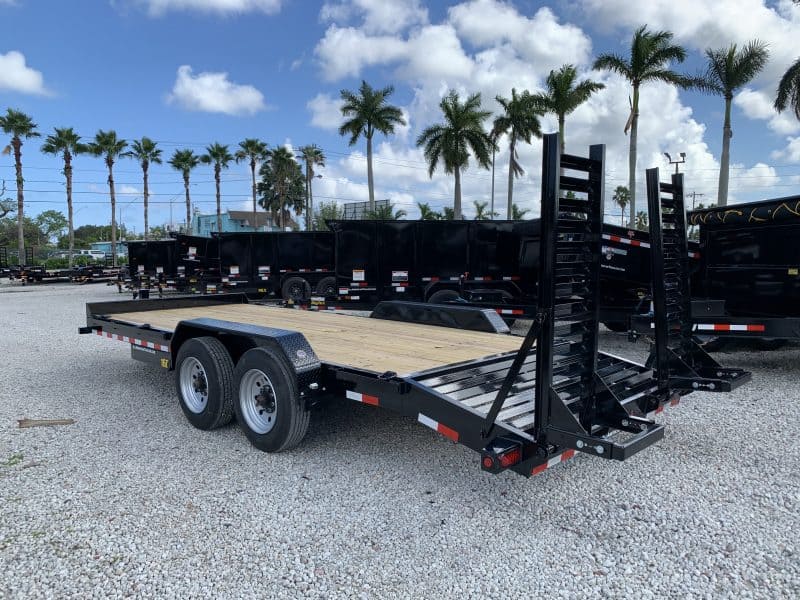

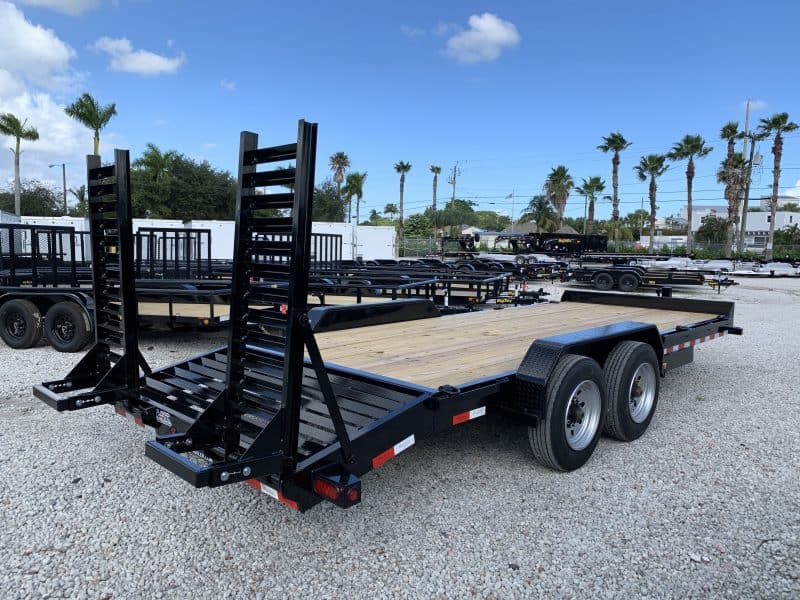

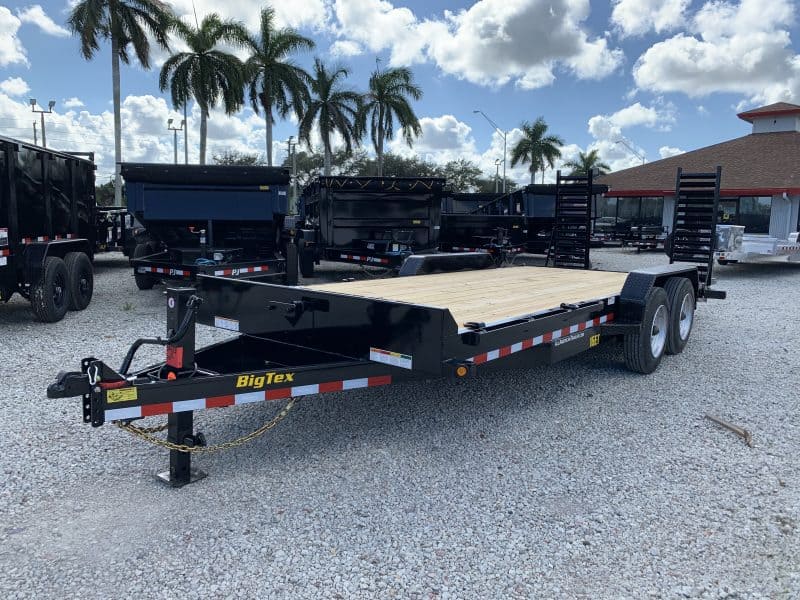

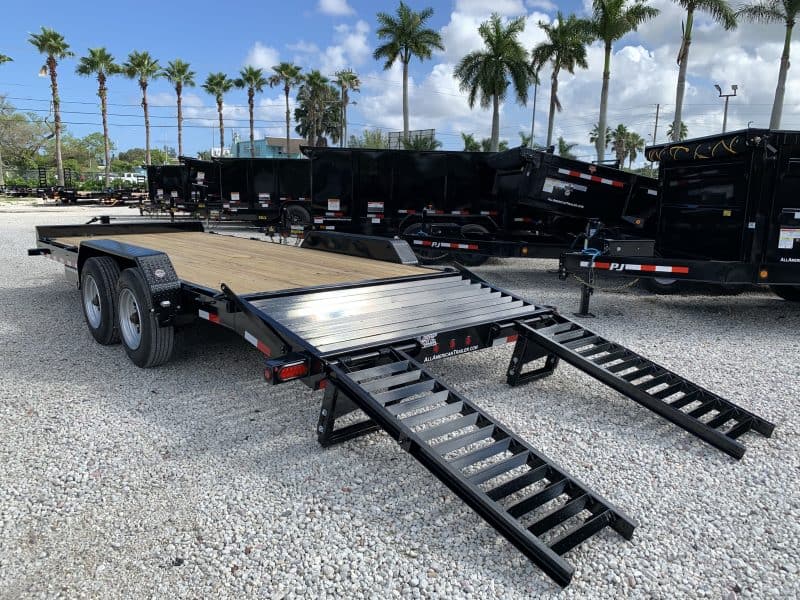

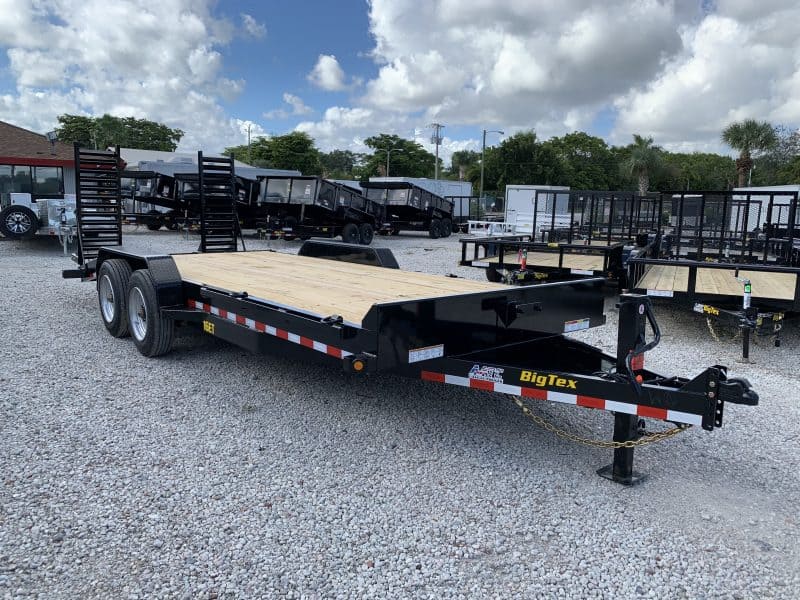

BIG TEX 7×20 EQUIPMENT TRAILER 8 TON 16ET17+3-KR

Store ID #16ET-17+3MR-1

Price: $6,995.00

  • 17,500lb GVWR
  • 17.5 LOAD RANGE H TIRES
  • 8″ CHANNEL FRAME
  • 36″ CLEATED DOVETAIL
  • DEXTER D8ON 8,000# AXLES
  • 12,000LB DROP LEG JACK
  • SEALED MODULAR WIRING HARNESS
  • PREMIUM HD BLACK MOD WHEELS
Contact Dealer
Print Product Specifications

The 16ET Super Duty Tandem Axle Equipment Trailer from Big Tex has a generous 83-inch width, multiple length options and a flush floor, providing versatility and exceptional value all in one. Haul equipment and small tractors confidently with the 16ET.



  • Adjustable 2-5/16″ Demco Coupler in Channel
  • Fold Back/Wrap Tongue
  • 12,000# Drop Leg Jack- Side Wind *Dual Jacks & Front Toolbox on Gooseneck Model
  • Fabricated Front Stop Rail
  • Full 83″ Wide Bed Between Fenders
  • Double Broke Diamond Plate Fenders (Removable)
  • Dexter D8ON 8,000# Axles
  • Cambered, Oil Bath Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • 36″ Cleated Dovetail (+3 Models)
  • Knee Ramps
  • Rubrail and Tie Down Pockets Along Sides
  • Storage Tray in Tongue Area
  • Grommet Mount, Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed Modular Wiring Harness
  • Complete Break-A-Way System w/Charger
  • Zip Breakaway Cable
  • 17.5″ Radial Tires
  • Premium HD Black Mod Wheels w/ 5/8″ Wheel Studs
  • Spare Tire Mount (Front)
AXLE (2) 8,000# Oil Bath w/Electric Brakes
JACK 12,000# Drop Leg Jack- Side Wind
TIRE ST215/75 R-17.5 Load Range H
FLOOR 2″ Treated Pine or Douglas Fir*
FRAME 8″ Channel
WHEEL 17.5″ x 6.75″; Black Mod 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LiGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 6″ Channel Fold Back/Wrap Tongue, 10″ I-Beam Neck on GN
COUPLER Adjustable 2-5/16″ 18,000# Demco
FENDERS 9″ x 72″ Double Broke Diamond Plate w/Back (Removable)
G.V.W.R. 17,500#
UPRIGHTS NONE
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3″ Channel on 16″ Centers
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL 3/16″ Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle) 8,000#

Additional information

Brand

Big Tex

Width

7'

Length

20'

Load Capacity

13,800

GVWR

17,500

Tounge Type

Bumper Pull
