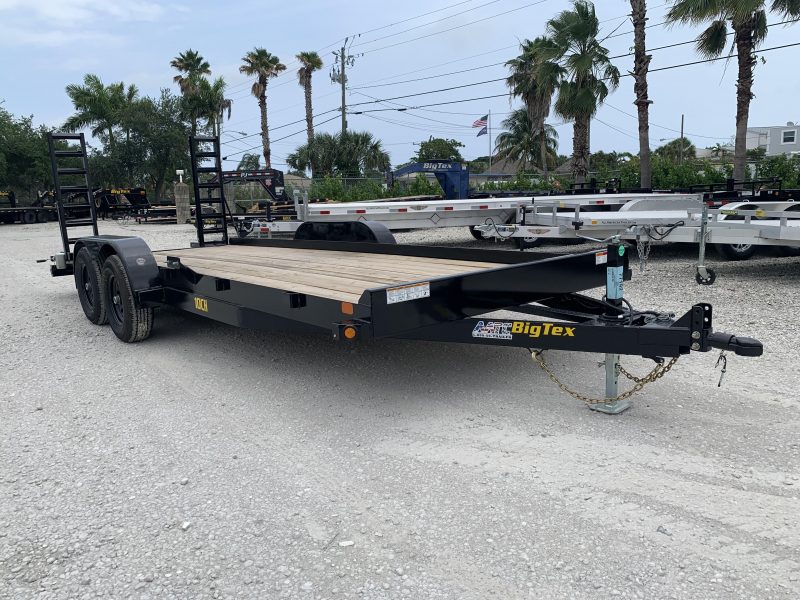

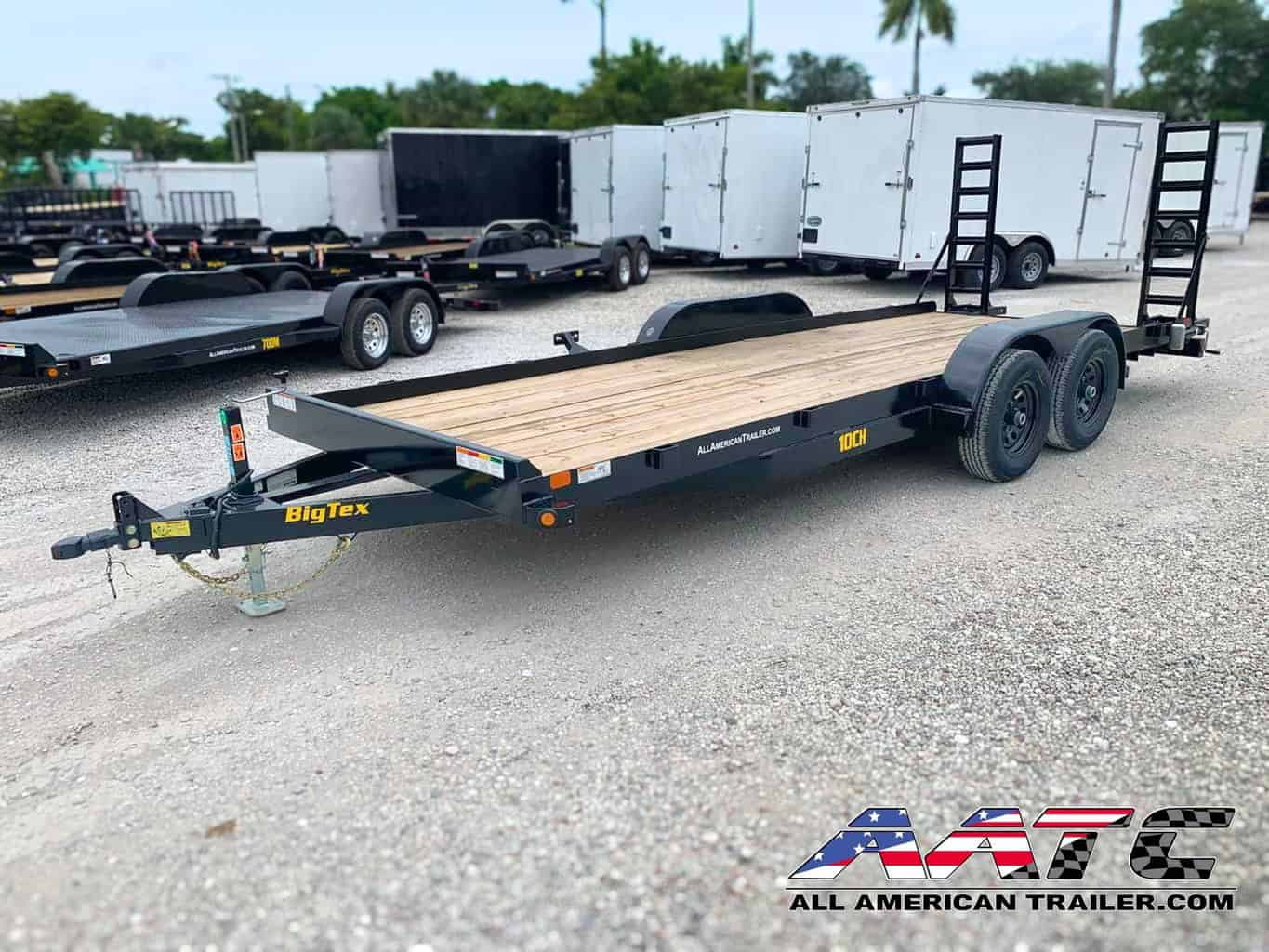

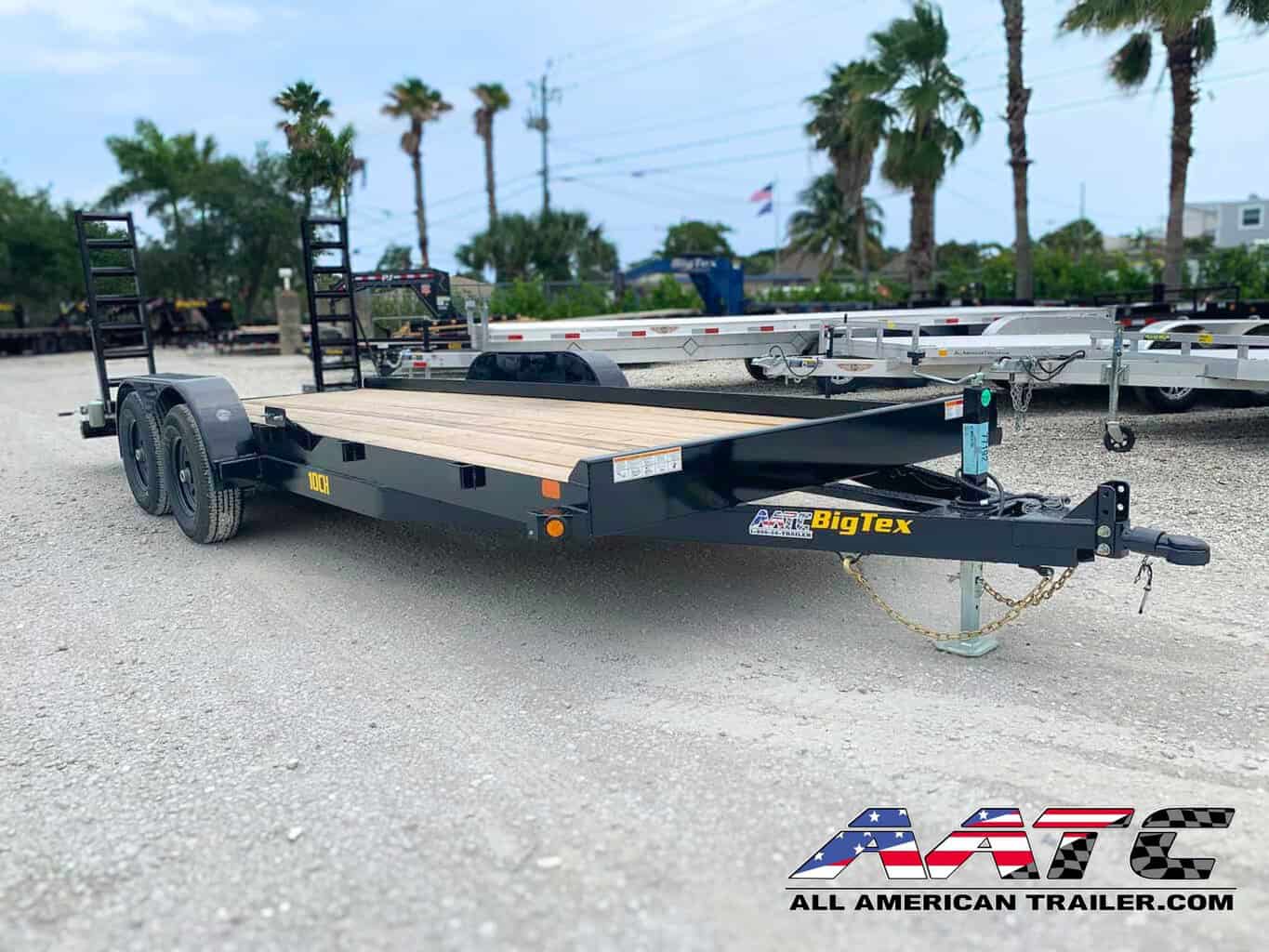

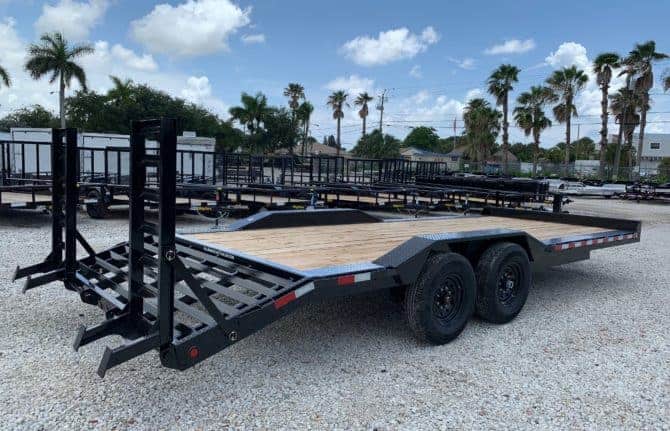

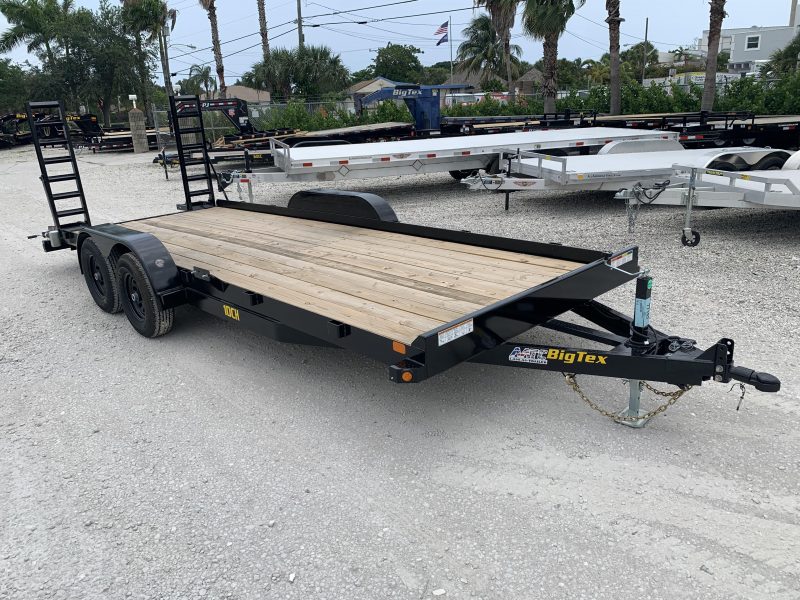

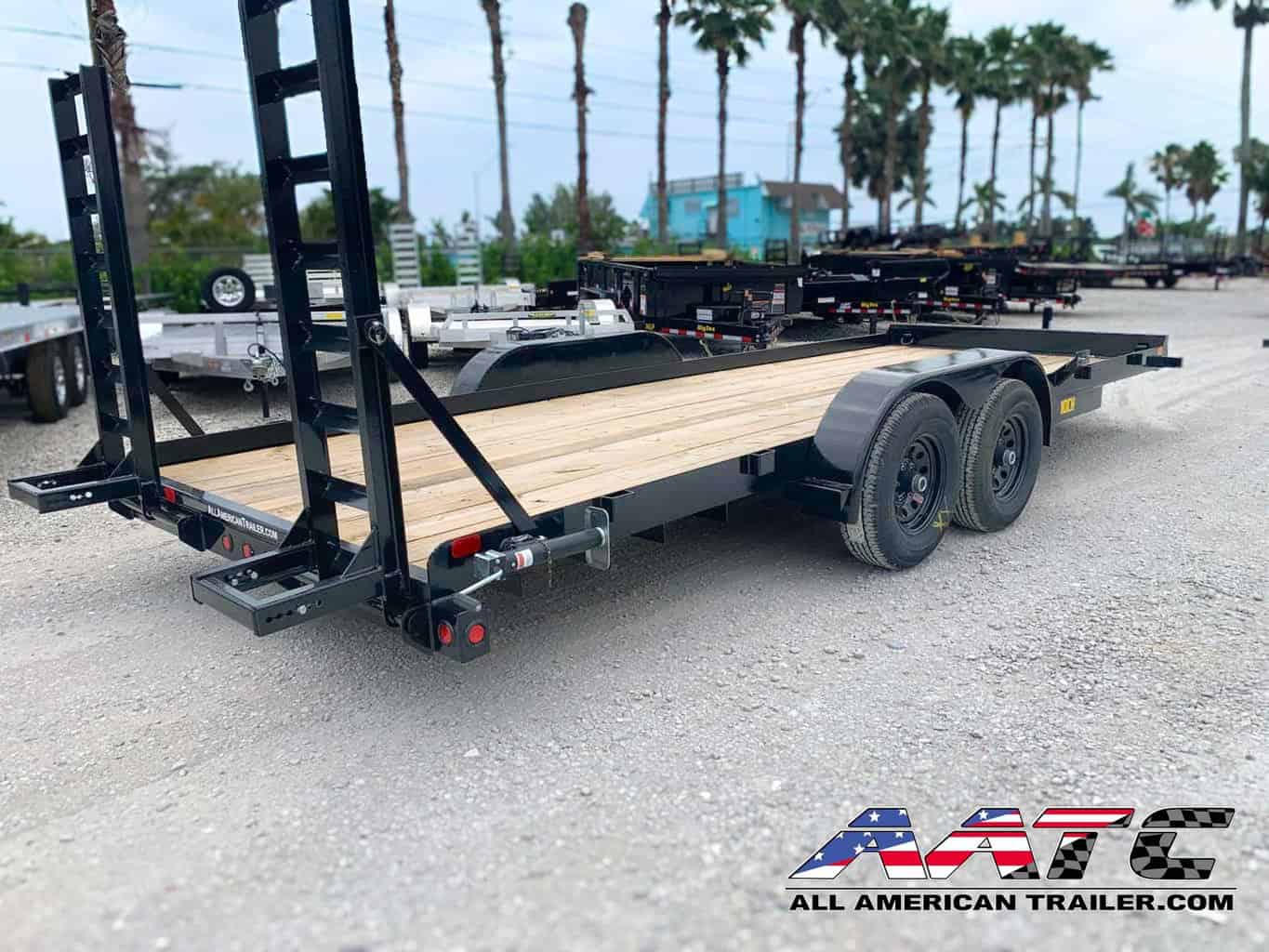

10CH-20-KR BIG TEX 20′ EQUIPMENT TRAILER 10,000 GVWR 5 TON 5′ STAND UP RAMP

Store ID #10CH-20-KR

Price: $5,595.00

  • POWDER COATED
    • 5′ TALL CHANNEL KNEE RAMPS
  • DEXTER BRAND AXLES
  • RECESSED LED LIGHTS
  • RADIAL TIRES
  • BRAKES ON ALL FOUR WHEELS
Contact Dealer
Print Product Specifications

The 10CH Tandem Axle Equipment Trailer from Big Tex Trailers is tough and durable with 5,200# axles. Multiple length options and a flush floor provides versatility for any haul from light to medium duty to small tractors.



  • Rubrail and Tie Down Pockets Along Sides

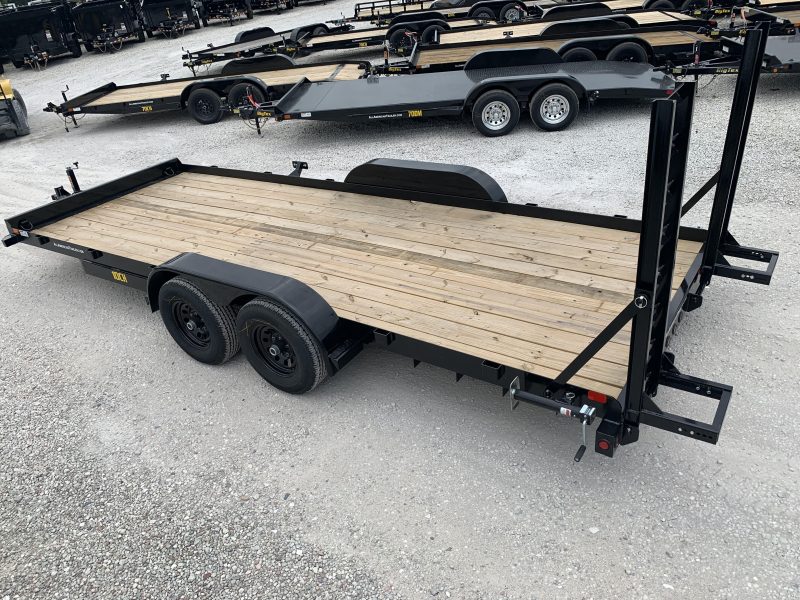

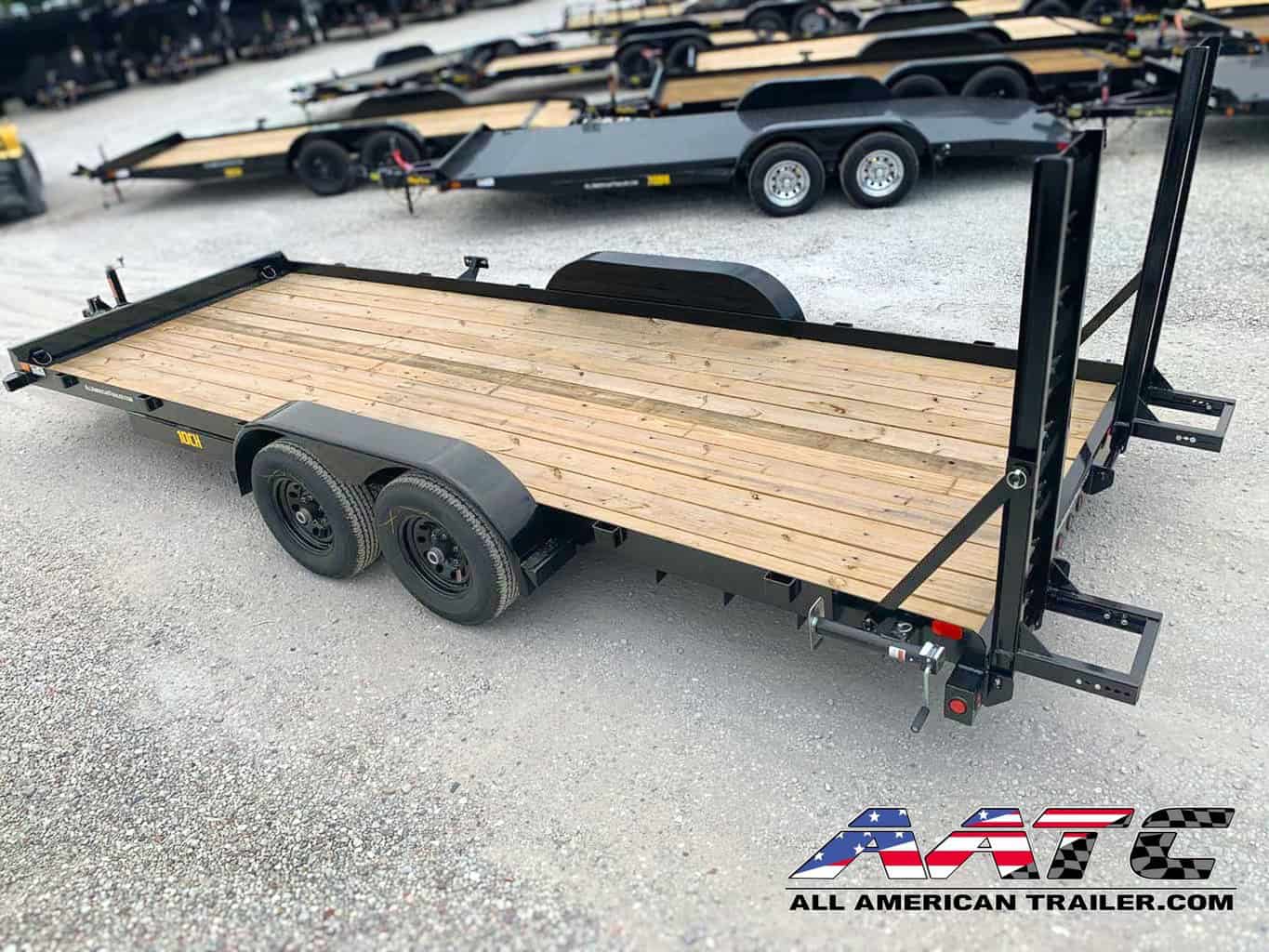

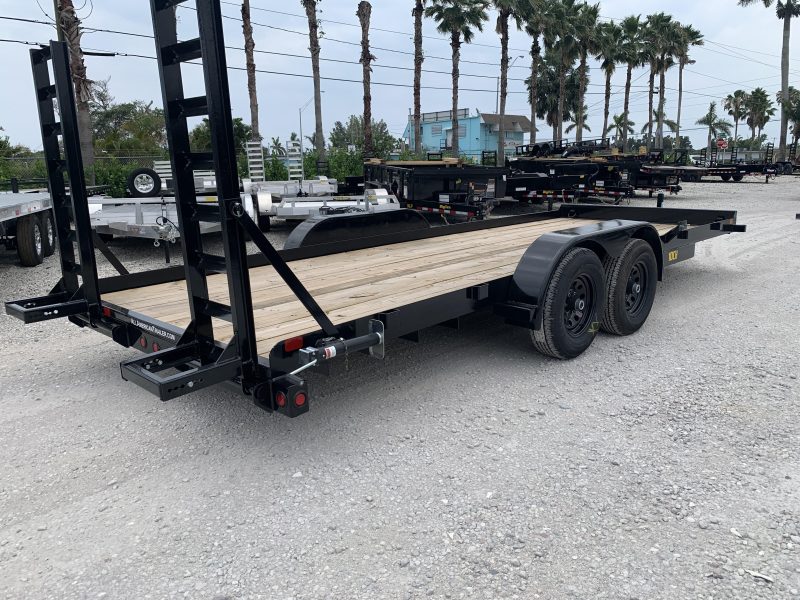

  • 5′ Tall Channel Knee Ramp (KR)
  • Forged Adjustable 2-5/16″ Coupler
  • Fold Back/Wrap Tongue
  • Set-Back, 8,000# Drop Leg Jack
  • 2″ Formed Tubular Stop Rail
  • EZ Lube Hubs
  • Dexter Brand Axles
  • Nev-R-Adjust Electric Brakes on All Hubs
  • Cambered Axles
  • Tear Drop Style Fenders (Removable)
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed Modular Wiring Harness
  • Spare Tire Mount
  • Complete Break-A-Way System w/Charger
  • Radial Tires
AXLE (2) 5,200# EZ Lube w/Electric Brakes
JACK 8,000# Drop Leg (Bolted On)
TIRE ST225/75 R-15 Load Range D
FLOOR 2″ Treated Pine or Douglas Fir*
FRAME 5″ Channel
WHEEL 15″ x 6″; Black Spoke 6 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

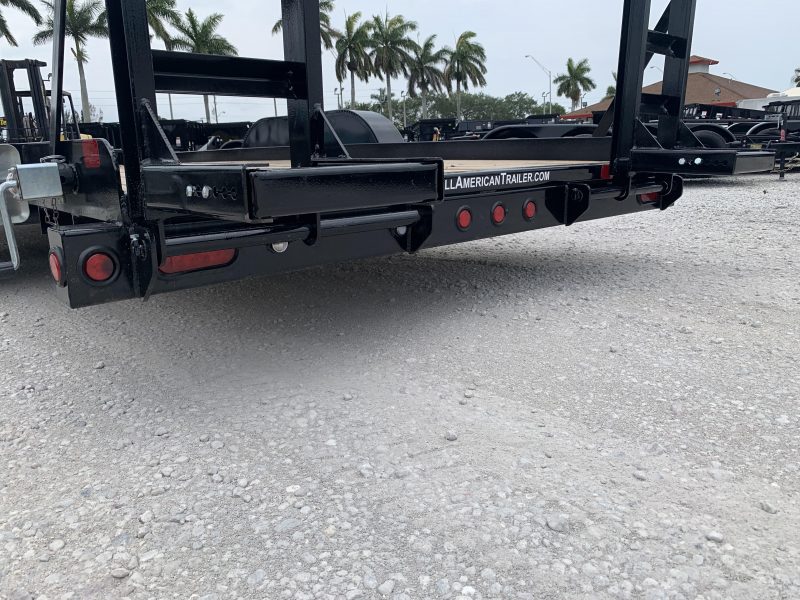

LiGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE 5″ Channel Fold Back/Wrap
COUPLER Adjustable Forged 2-5/16″
FENDERS 9″ x 72″ Tear Drop w/Back (Removable)
G.V.W.R. 9,990#
UPRIGHTS NONE
ELEC. PLUG 7-Way RV
HITCH TYPE Bumper Pull
SUSPENSION Multi-Leaf Spring w/Equalizer
CROSSMEMBERS 3″ Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 1/4″ Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle) 5,080#
