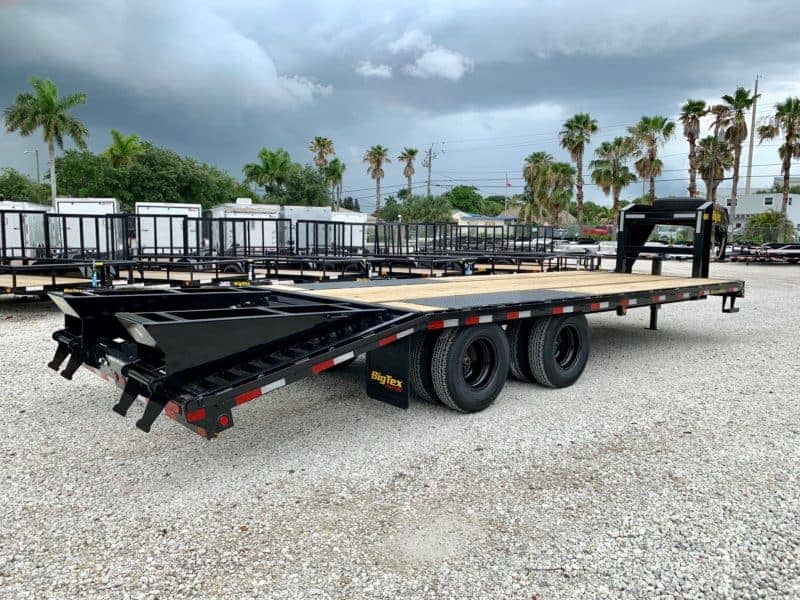

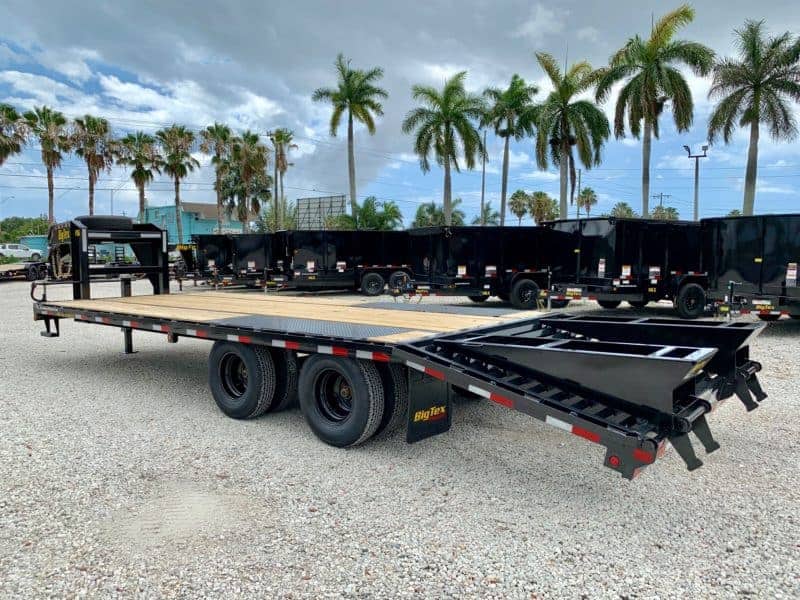

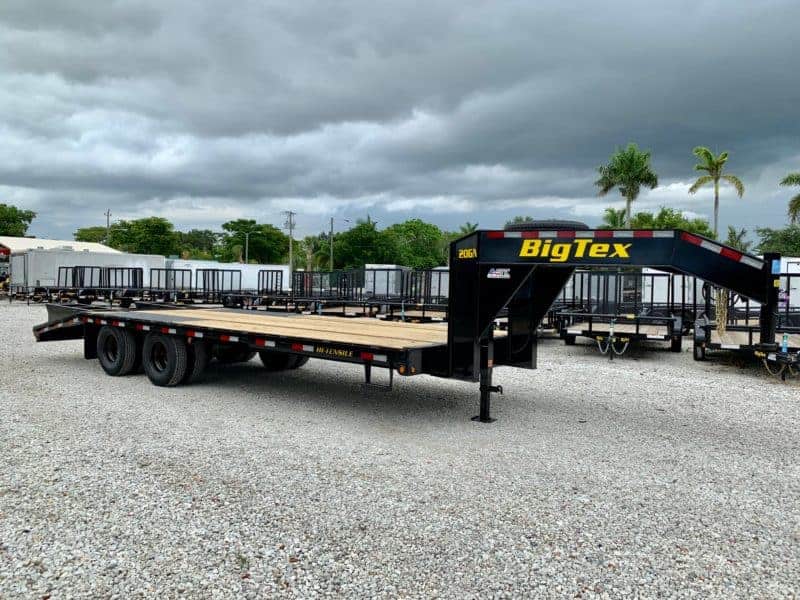

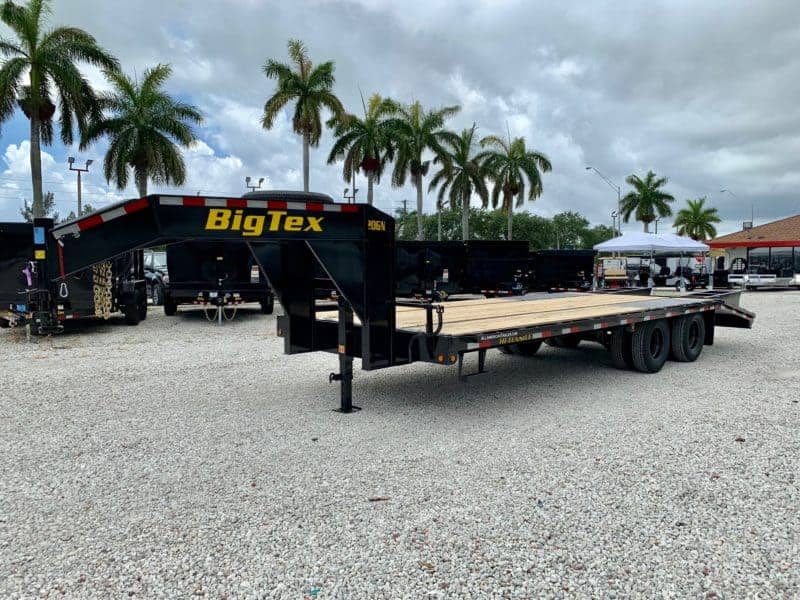

BIG TEX 25′ GOOSENECK TRAILER 10 TON 20GN-20+5

Store ID #20GN-20+5

Price: $8,895.00

  • Low Profile Bed, Pierced- Beam Frame
  • 5 Dovetail w/ 5 Double Hinged Flip-Over Ramps
  • Dexter Brand Axles
  • 12,000# Drop Leg Jack (Bolted on)
  • Radial Tires
  • Grommet Mount Sealed Lighting
  • Tie Down Pockets Along Sides, 24″ On Center
Contact Dealer
Print Product Specifications

The 20GN from Big Tex Trailers is our economy-style tandem dual gooseneck trailer. This durable and rugged trailer combines several great Big Tex characteristics, including LED lights, treated floor and an adjustable coupler-all at a price you can afford.



  • 12,000# Drop Leg Jack- (Bolted On) w/ Greasable Handle
  • Low Profile Bed, Pierced- Beam Frame
  • (2) Side Bed Steps & Handles
  • 3/8″ Heavy Duty Rub Rail
  • Tie Down Pockets Along Sides, 24″ On Center
  • 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
  • Oil Bath Hubs
  • Cambered Axles
  • Forward Self Adjusting Brakes
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness

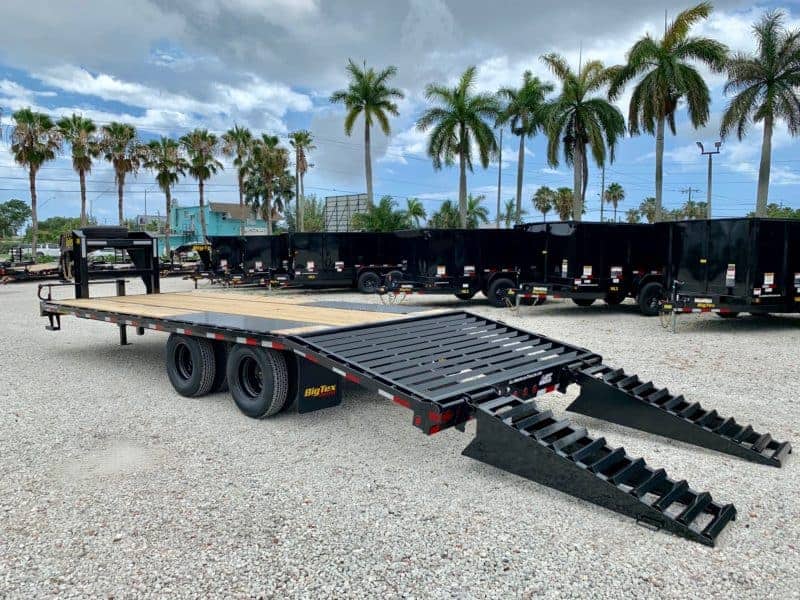

  • 5 Dovetail w/ 5 Double Hinged Flip-Over Ramps
  • Complete Break-A-Way System w/Charger
  • Spare Tire Mount (Top of Neck)
  • Radial Tires
  • Spare Tire & Wheel – Standard Equipped
  • Mudflaps



AXLE (2) 10,000# Dual Wheel w/Electric Brakes
JACK Single 12,000# Drop Leg Jack (Bolted On)
TIRE ST235/80 R-16 Load Range E DUAL
FLOOR 2″ Treated Pine or Douglas Fir*
FRAME 12″ I Beam
WHEEL 16″ x 6″; Dual Wheel 8 Bolt
FINISH Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER 2-5/16″ Ball Adj. Pipe
NECK 12″ I Beam
G.V.W.R. 20,000#
TOP RAIL None
ELEC. PLUG 7-Way RV
HITCH TYPE Gooseneck
SIDE RAILS 5″ Channel w/Rub Rail, Stake Pockets on 24″ Centers, and Chain Spools
SUSPENSION Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS 3″ Channel
FINISH (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 10,000#

Additional information

Brand

Big Tex

Width

8.5'

Length

25'

Load Capacity

14,750

GVWR

20,000

Tounge Type

Gooseneck
